    #76
    The end cap was pushing the hull apart because it is a little wide for the area as the hull is getting narrow. To fix this I need to taper the sided of the end cap to give clearance. The marking I did before gave me an estimated area that needed to be removed. Breaking out a flat file side of the end cap are tapered.
    Click image for larger version

Name:	Revell Type IX_127.jpg
Views:	1
Size:	25.6 KB
ID:	128245

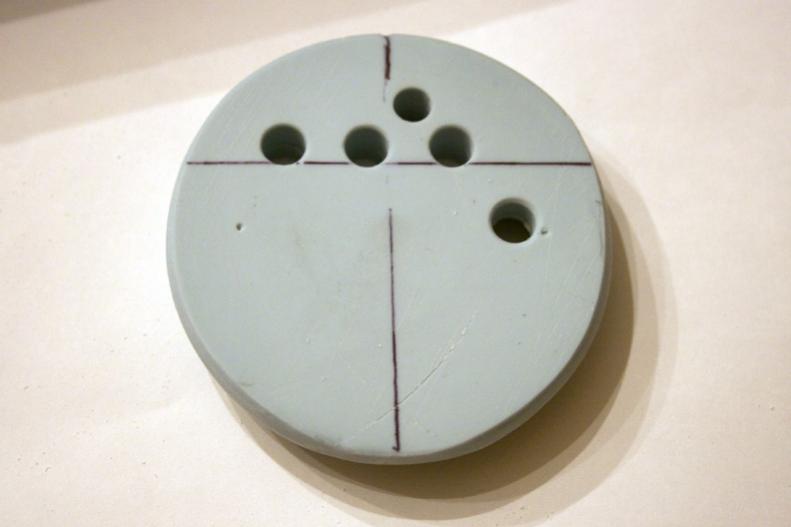

    The vertical and horizontal lines are there for me to use as a guide so I know which way is up and make sure the sides a sort of even.
    Click image for larger version

Name:	Revell Type IX_128.jpg
Views:	1
Size:	25.3 KB
ID:	128246

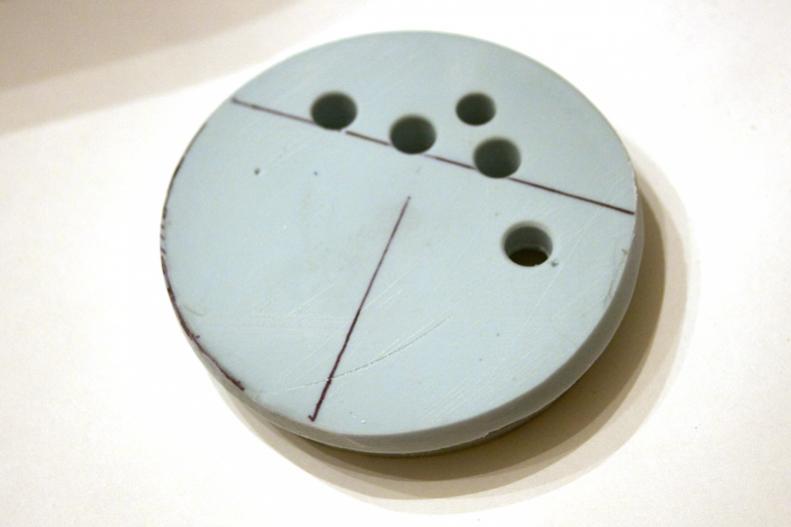

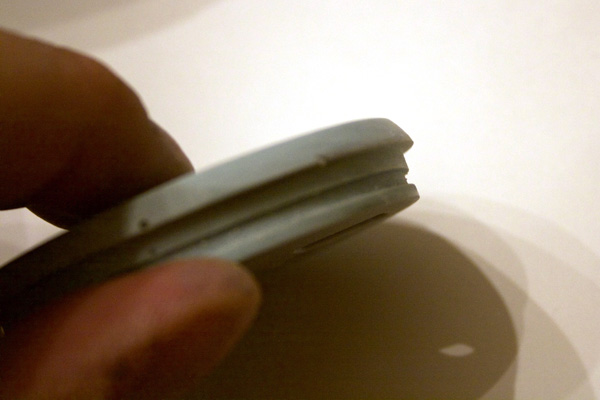

    Here is a shot of the bevel put on it.
    Click image for larger version

Name:	Revell Type IX_129.jpg
Views:	1
Size:	65.5 KB
ID:	128247

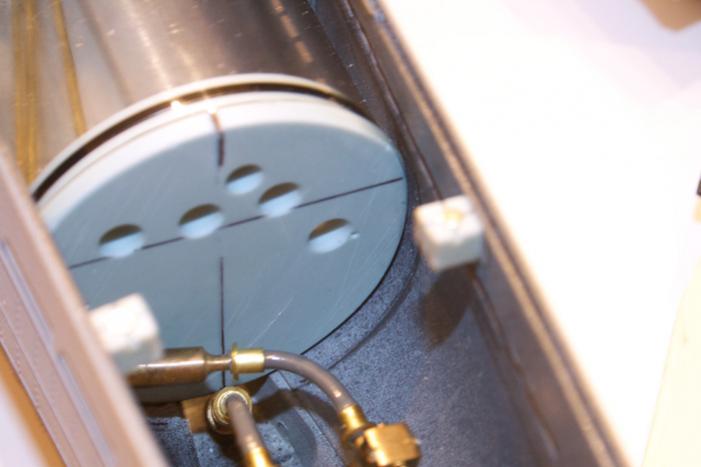

    Placing the Sub-Driver back in I could see I have plenty of room now.
    Click image for larger version

Name:	Revell Type IX_130.jpg
Views:	1
Size:	29.3 KB
ID:	128248
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

    Comment

    • salmon
      Treasurer
      • Jul 2011
      • 2327

      #77
      It was getting late the other day and I wanted to see the deck on and assembled everything until....Rut-Roe.
      Click image for larger version

Name:	Revell Type IX_131.jpg
Views:	1
Size:	93.4 KB
ID:	128258Click image for larger version

Name:	Revell Type IX_132.jpg
Views:	1
Size:	34.6 KB
ID:	128259
      Sorry about the poor photos. I wanted to document it, but also wanted to get sleep. Not a cussing kind of guy but this sure got me close.
      So, next day, I inspected everything to see if I did anything blazingly wrong. Not finding anything, I decided to figure out what next.
      Click image for larger version

Name:	Revell Type IX_133.jpg
Views:	1
Size:	90.4 KB
ID:	128260Click image for larger version

Name:	Revell Type IX_134.jpg
Views:	1
Size:	96.9 KB
ID:	128261Click image for larger version

Name:	Revell Type IX_135.jpg
Views:	1
Size:	32.3 KB
ID:	128262

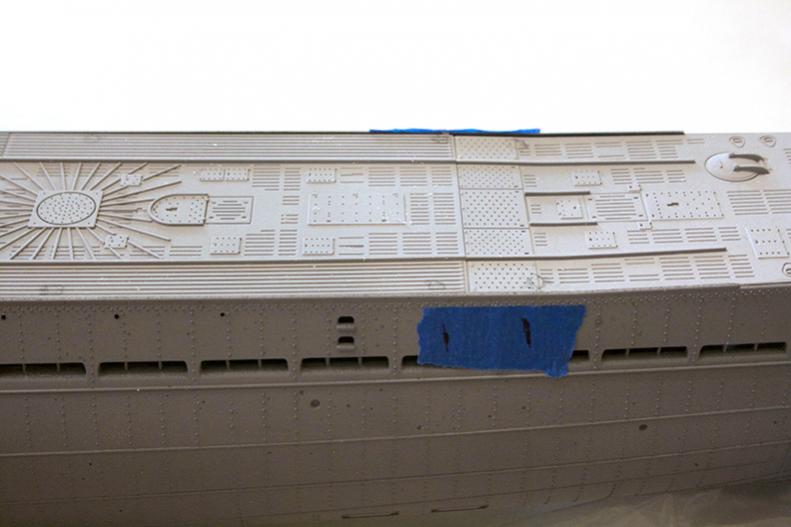

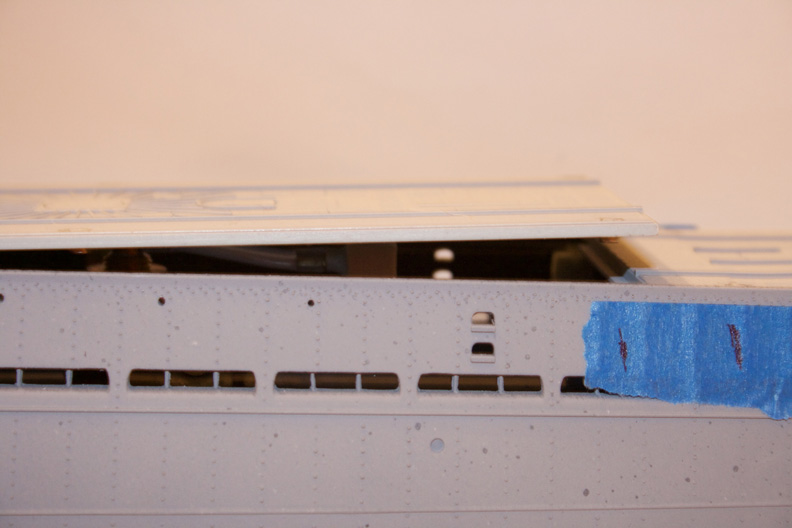

      Checked to see if I could shave down or install lower to make the deck set low. No, the amount needed to get it to clear was too great.
      So some rework is needed. It is things like this that makes subs fun! Things just do not go by the book sometimes. It is your attitude to resolving the issue at hand that makes a big difference. I was not going to let this defeat me.
      I removed the vent foundation that goes into the battery compartment. It took a careful twist with a plier and it popped off. Now that leaves me a hole to fill. A little duct tape was placed underneath and a dollop of Alumilite casting urethane was placed on top to seal the vent. Checked to make sure it did not interfere with the deck and it did not, in fact by grace it becomes a perfect support for the deck.
      Click image for larger version

Name:	Revell Type IX_136.jpg
Views:	1
Size:	26.0 KB
ID:	128263
      Last edited by salmon; 11-02-2015, 12:40 AM.
      If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

      Comment

      • salmon
        Treasurer
        • Jul 2011
        • 2327

        #78

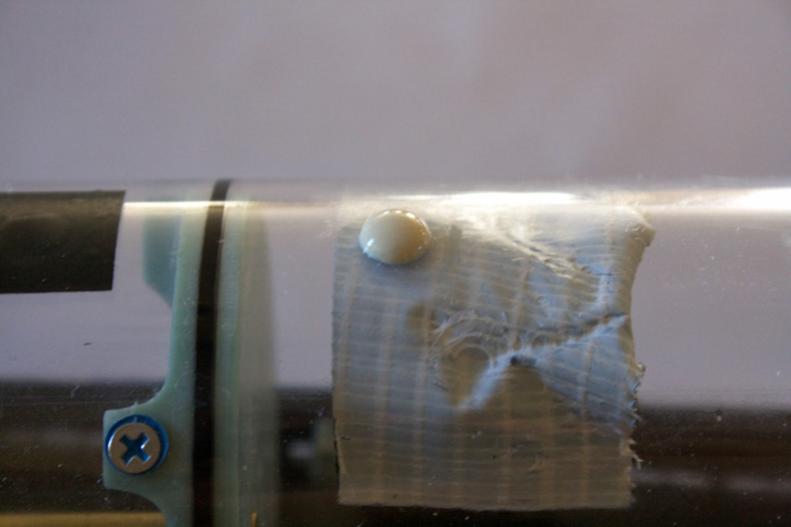

        Let the urethane to set overnight and then put a little RTV rubber on the inside also.
        Click image for larger version

Name:	Revell Type IX_137.jpg
Views:	1
Size:	39.1 KB
ID:	128264

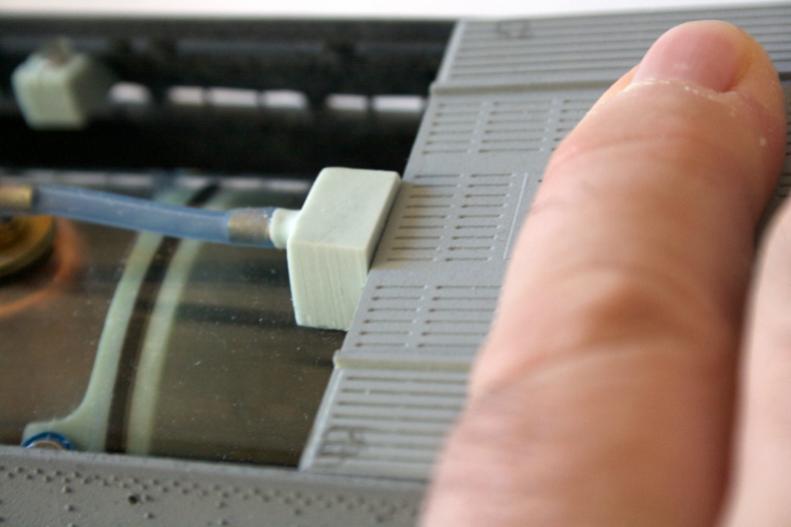

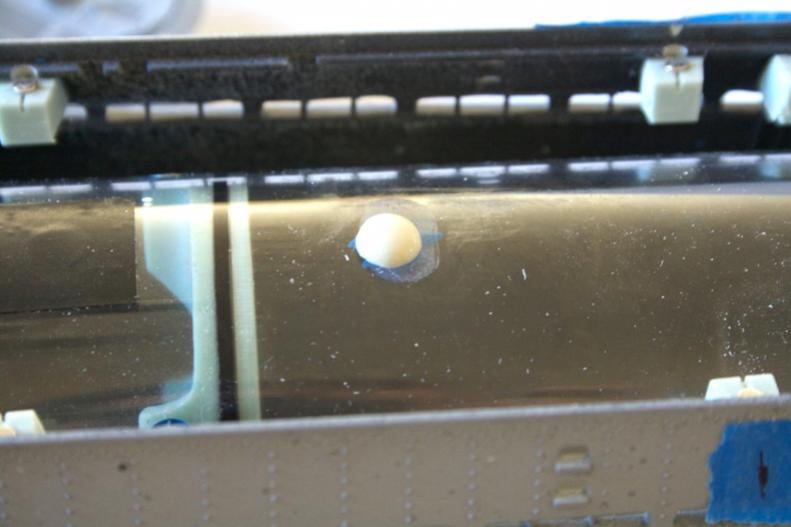

        The new location for the vent foundation was next to the original just a little more to the side. The vent does not need to be mounted directly on top. So moving it to the side, along with a little reshaping, it looks like it will be a nice modification.
        Click image for larger version

Name:	Revell Type IX_138.jpg
Views:	1
Size:	94.8 KB
ID:	128265

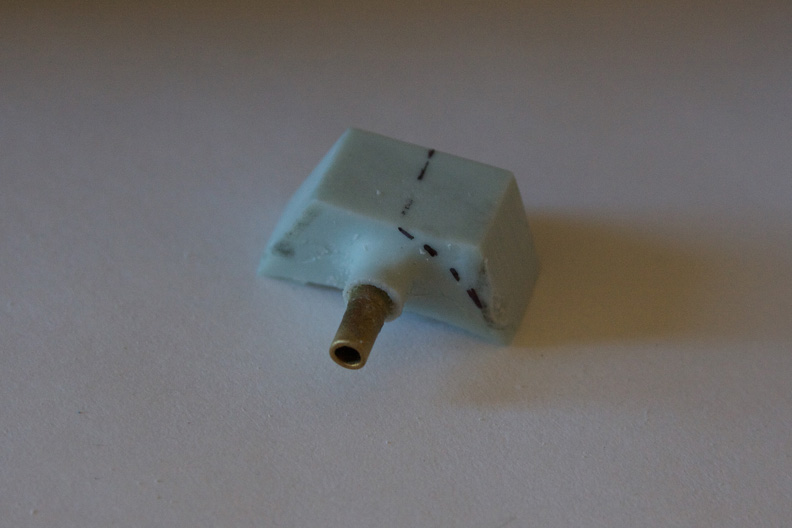

        After shaving and reshaping the foundation, it was tested to see if it would clear the deck and give me an idea where it will need to be placed.
        Click image for larger version

Name:	Revell Type IX_139.jpg
Views:	1
Size:	33.3 KB
ID:	128266

        Measuring the distance between the edge of the foundation and center of hole transferred that distance to the tube. Then using a Foredom, drilled a hole to match the foundation's hole.

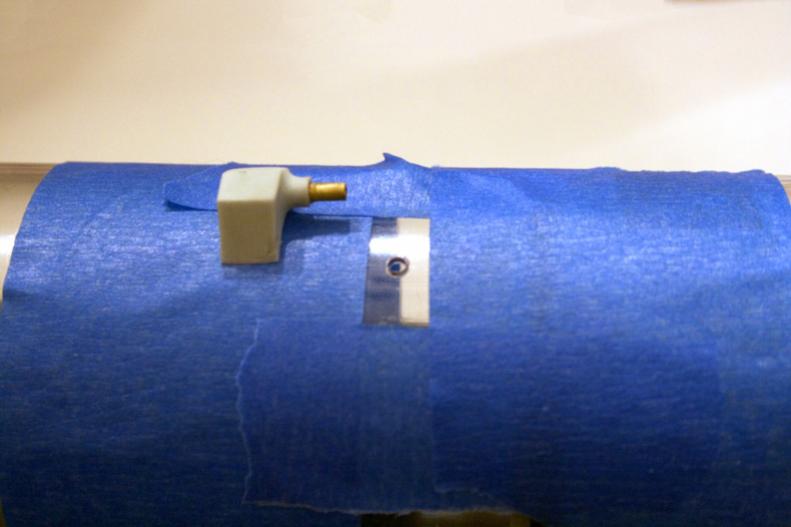

        To install the foundation in the new location it is taped off while holding it in the proper location. Then sanded inside the box created to give the RTV something to grip onto. Carefully placed RTV around the base of the foundation and placed it so the hole I drilled aligned with the vent foundation's hole.
        Click image for larger version

Name:	Revell Type IX_140.jpg
Views:	1
Size:	33.9 KB
ID:	128267

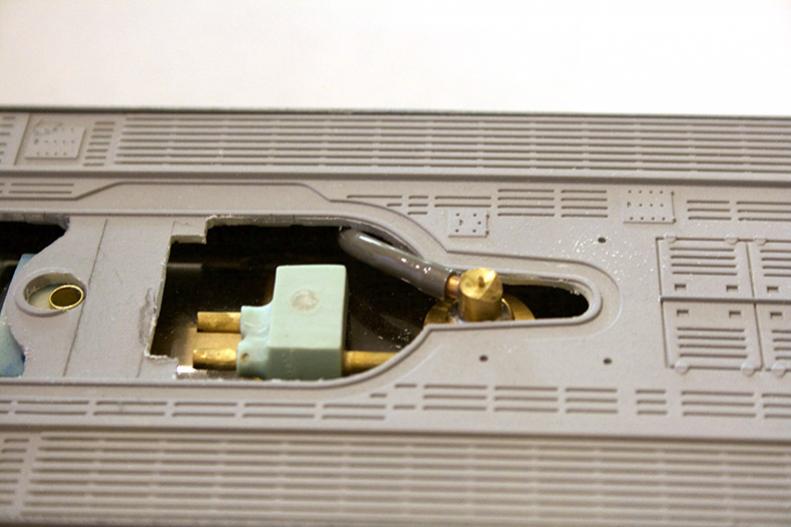

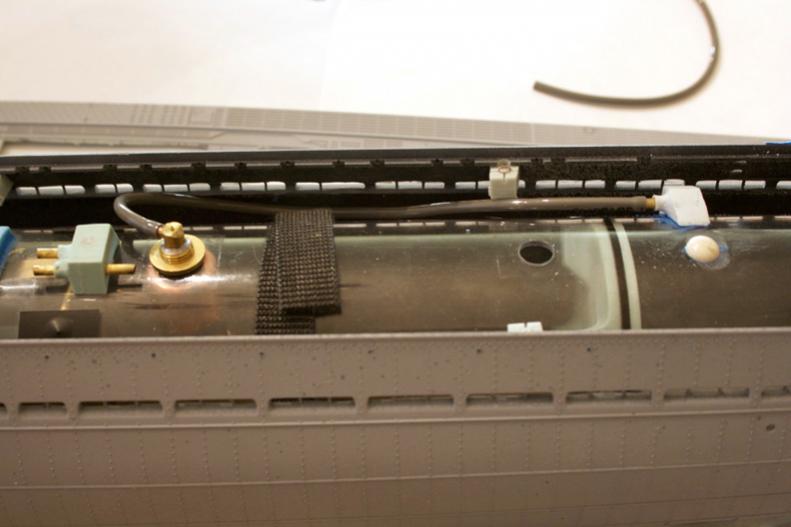

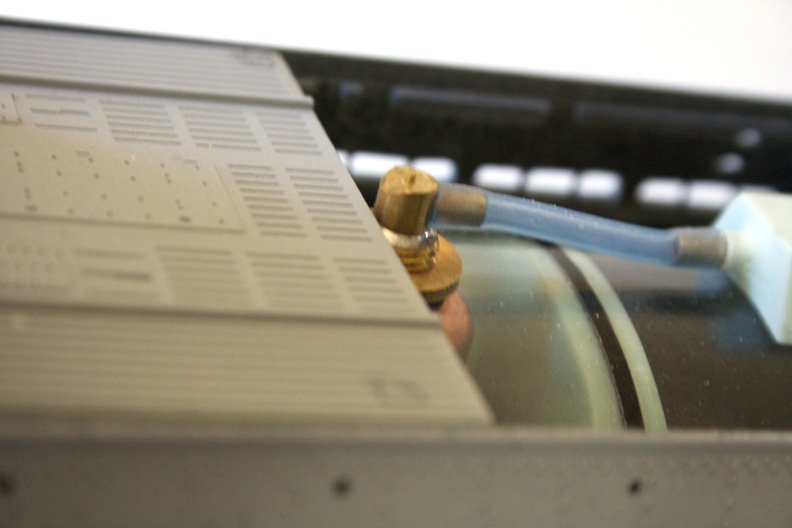

        Now what to do with the float valve? This float will prevent water from being sucked into the WTC. It must be located upright and on the top of the Sub-Driver. There is another hole already drilled on top, it is for the option of getting a Propel gas backup. So moving the valve over to this hole place the top of the float perfectly under the very front of the sail.
        Click image for larger version

Name:	Revell Type IX_141.jpg
Views:	1
Size:	38.6 KB
ID:	128268Click image for larger version

Name:	Revell Type IX_142.jpg
Views:	1
Size:	42.7 KB
ID:	128269
        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

        Comment

        • salmon
          Treasurer
          • Jul 2011
          • 2327

          #79

          This photo is reposted here again because I wanted to point out the float nipple was redirected to point to an area that has more room for the hose to be run through. It also shows the vent foundation installed.


          Here is a close up of the fit with hose attached.

          This also messed up my original idea for mounting the turim. So now what? The best laid plans......then staring at the sail and the hull with the Sub-Driver tube installed, I came up with an alternate way to mount the sail directly to the deck, but it will not be an easy removal like one screw and magnets would be.
          Cut two strips of styrene to go across the sail's base.
          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

          Comment

          • salmon
            Treasurer
            • Jul 2011
            • 2327

            #80
            Oh I have not shown the deck.

            It fits!

            Drilled a hole on each side of the newly installed strips by placing the deck and sail together and drilled from the bottom of the deck through the strips installed. Then attached four 2-56 screws and nuts.
            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

            Comment

            • redboat219
              Member
              • Jan 2005
              • 519

              #81
              Attachments # 1181-1186 don't show

              Comment

              • salmon
                Treasurer
                • Jul 2011
                • 2327

                #82
                Thank you Romel for catching that!

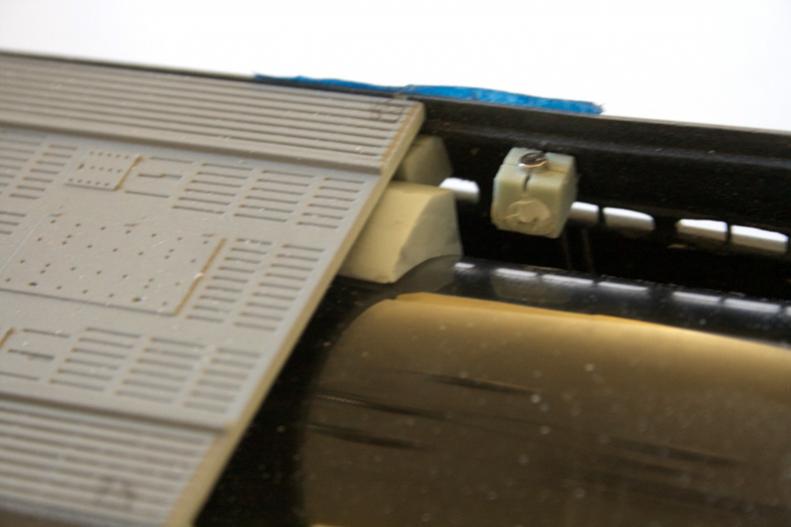

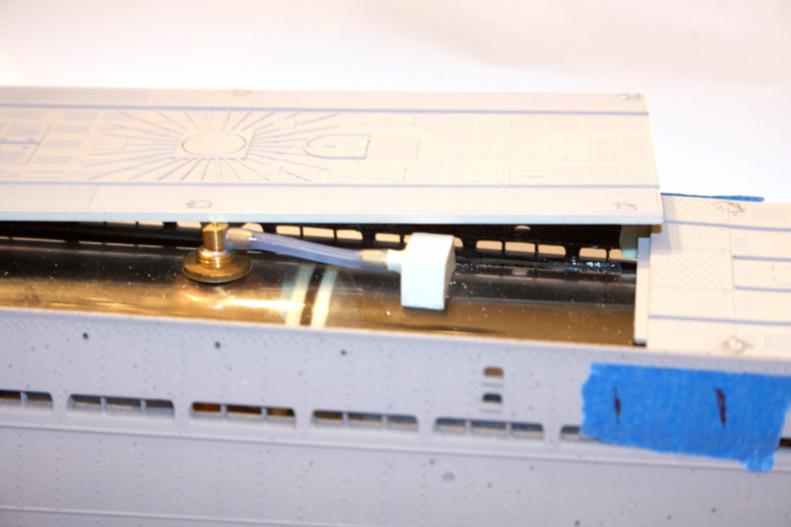

                This photo is reposted here again because I wanted to point out the float nipple was redirected to point to an area that has more room for the hose to be run through. It also shows the vent foundation installed.
                Click image for larger version

Name:	Missing01.jpg
Views:	1
Size:	41.1 KB
ID:	128282

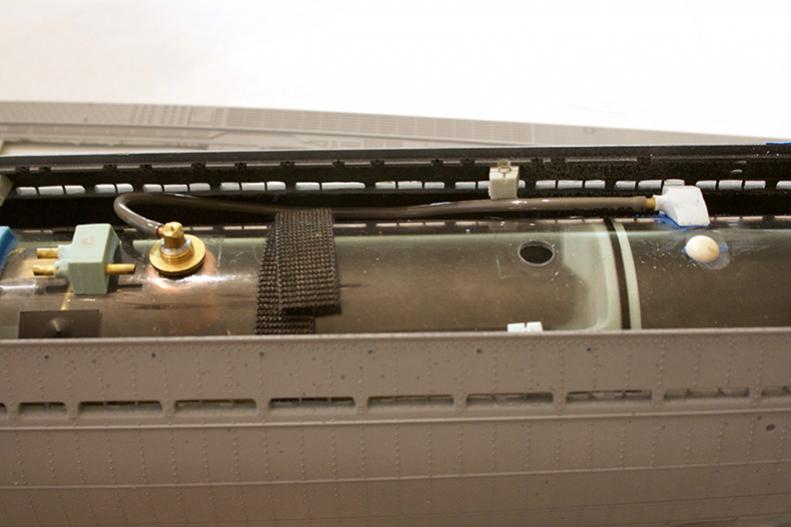

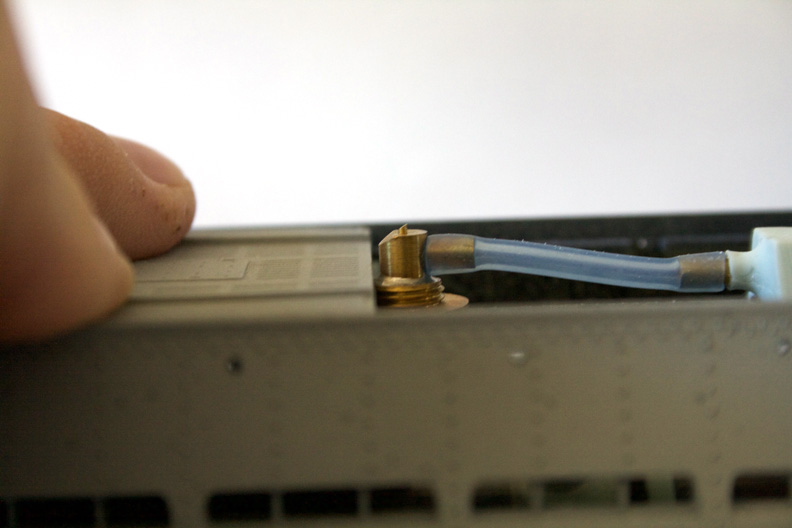

                Here is a close up of the fit with hose attached.
                Click image for larger version

Name:	Missing02.jpg
Views:	1
Size:	44.2 KB
ID:	128283


                This also messed up my original idea for mounting the turim. So now what? The best laid plans......then staring at the sail and the hull with the Sub-Driver tube installed, I came up with an alternate way to mount the sail directly to the deck, but it will not be an easy removal like one screw and magnets would be.
                Cut two strips of styrene to go across the sail's base.

                Click image for larger version

Name:	Missing03.jpg
Views:	1
Size:	43.5 KB
ID:	128284

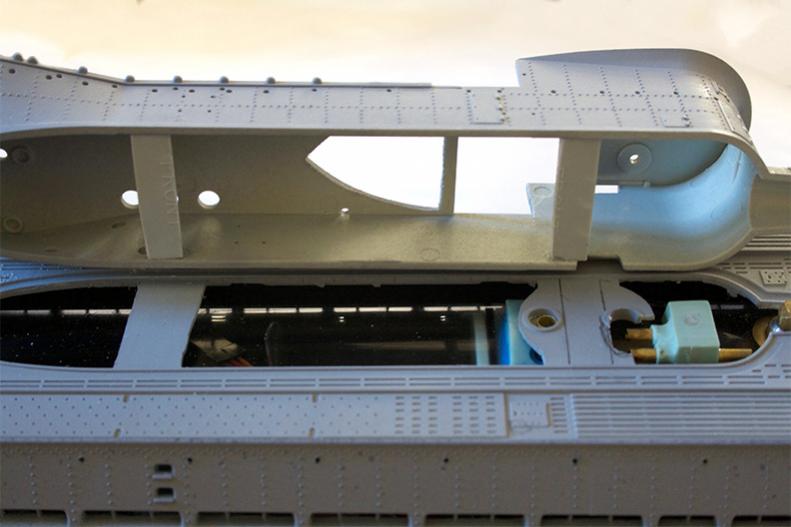

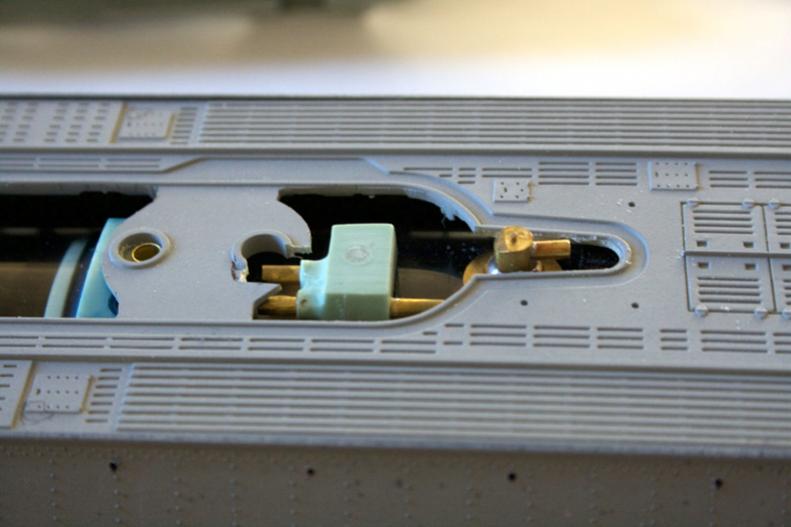

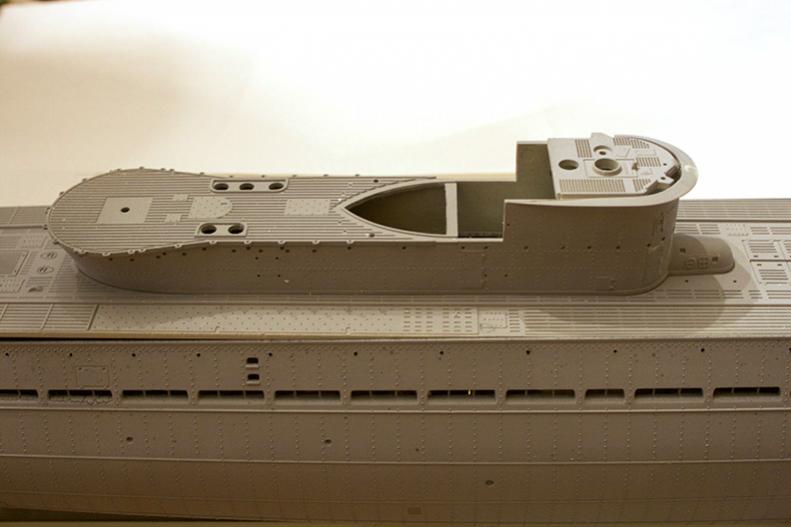

                Oh I have not shown the deck.
                Click image for larger version

Name:	Missing04.jpg
Views:	1
Size:	42.2 KB
ID:	128285

                It fits!

                Drilled a hole on each side of the newly installed strips (one hole in each corner) by placing the deck and sail together and drilled from the bottom of the deck through the strips installed. Then attached four 2-56 screws and nuts.
                Click image for larger version

Name:	Missing05.jpg
Views:	1
Size:	38.1 KB
ID:	128286
                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                Comment

                • bwi
                  SubCommittee Member
                  • Jun 2013
                  • 181

                  #83
                  Great workaround’s Tom……that’s what it’s all about….make a plan, put it into practice, beat yourself up if it doesn’t work, adapt your initial plan and go fwd.

                  I really enjoy this thread.

                  Grtz,
                  Bart
                  Practical wisdom is only to be learned in the school of experience.
                  "Samuel Smiles"
                  http://scale-submarine.com/index.html

                  Comment

                  • salmon
                    Treasurer
                    • Jul 2011
                    • 2327

                    #84
                    Thank you Bart!
                    I think that is one of the things I love about our hobby. The challenges every build offers and the opportunity to be creative to overcome those challenges. It keeps this old mind working.
                    Peace,
                    tom
                    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                    Comment

                    • thor
                      SubCommittee Member
                      • Feb 2009
                      • 1453

                      #85
                      Masterfully executed, Tom! Now, we need to beat up on Tim and Tom to host another Subs only Fun Run in the Denver areas or there abouts, and we can all get together to ogle your excellent piece of engineering.....How about a Fun Run in Vegas this next summer????? We'll all pitch in!
                      Regards,

                      Matt

                      Comment

                      • salmon
                        Treasurer
                        • Jul 2011
                        • 2327

                        #86
                        Thanks, Matt! I am looking at having a smaller fun run in Vegas, but not as a large event. Keystone was a interesting experience and I am not sure what I can accomplish with life situations at hand.
                        I have learned things from true masters across this country and world. The SCR has been a wealth of information.
                        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                        Comment

                        • thor
                          SubCommittee Member
                          • Feb 2009
                          • 1453

                          #87
                          Keep it informal and simple. The less stress, the more fun.
                          Regards,

                          Matt

                          Comment

                          • Ralph --- SSBN 598
                            Junior Member
                            • Oct 2012
                            • 1417

                            #88
                            Tom,
                            Matt is right on putting on a small get together.
                            1. Find a suitable pond.
                            2. Get permission to use it by explaining how our boats work. Ease their questions.
                            3. While getting permission discuss possible dates.
                            4. Set a date a few months out. 6 or more to give everyone time to plan on getting there.
                            5. Then plan it like a potluck picnic.
                            6. Promote it as such as often as you can and get people to commit to coming.
                            7. Make and publish a list of those who do commit to entice others to come meet friends they only know of from the forums.
                            8. Follow thorough and put the event on even if only two or three show up. This tell every one who did not come, you are serious about having a fun event.
                            9. Plan for a second get together.

                            This is how you start an event that becomes a yearly scheduled gathering.

                            You where at the gathering in Yorba Linda, CA.
                            There were how many of us? 6 or 7 with boats and a few non boat friends and family members.
                            Those who showed up seemed to enjoy themselves.
                            The second Yorba Linda event had a couple more people attend.
                            Unfortunately, you and your family had other commitments and could not attend.

                            Having vendors and maybe even prizes are nice but these things come in time.
                            I know they make things more complicated and can take the fun out of an event for the people trying to put the event on.
                            Bare bones events works for me.

                            Comment

                            • salmon
                              Treasurer
                              • Jul 2011
                              • 2327

                              #89

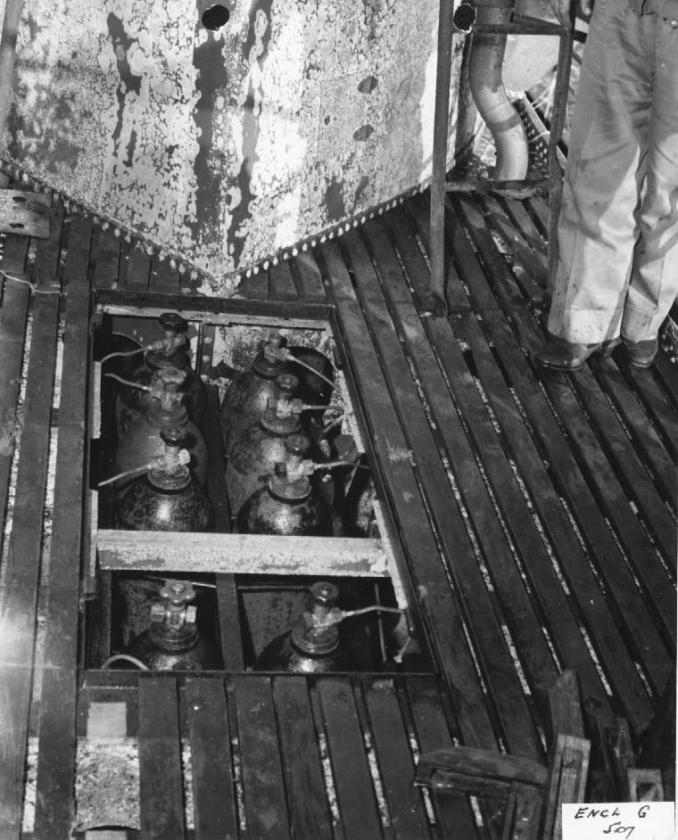

                              Found more photos while looking at another build log, funny how one rabbit hole leads you to another.
                              This site has some photos taken of the capture: http://uboatarchive.net/U-505A/U-505Photographs.htm
                              Here are some I selected for this build. Some still support the lighter colored hatches.
                              Click image for larger version

Name:	Type IX U-505 capture 14.jpg
Views:	1
Size:	92.4 KB
ID:	128425Click image for larger version

Name:	Type IX U-505 capture 15.jpg
Views:	1
Size:	93.0 KB
ID:	128426

                              Click image for larger version

Name:	Type IX U-505 capture 16.jpg
Views:	1
Size:	95.1 KB
ID:	128427Click image for larger version

Name:	Type IX U-505 capture 17.jpg
Views:	1
Size:	90.9 KB
ID:	128428

                              Click image for larger version

Name:	Type IX U-505 capture 18.jpg
Views:	1
Size:	77.5 KB
ID:	128429Click image for larger version

Name:	Type IX U-505 capture 19.jpg
Views:	1
Size:	90.0 KB
ID:	128430
                              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                              Comment

                              • salmon
                                Treasurer
                                • Jul 2011
                                • 2327

                                #90
                                Last two
                                Click image for larger version

Name:	Type IX U-505 capture 20.jpg
Views:	1
Size:	84.3 KB
ID:	128431Click image for larger version

Name:	Type IX U-505 capture 21.jpg
Views:	1
Size:	93.8 KB
ID:	128432

                                I am going to start populating the Sub-Driver and adding ballast to begin an initial trim.
