Hello Ralph. Went to post then advanced. Wrote in title and in message box but only icons I am getting are the ones above my keyboard eg gif etc. No insert image.
No insert image or other tools displaying by my message box or title box. Thought I had found it but no luck

[Mikesmatrix]

Picture insert

I will try again tomorrow Ralph thanks for replying

[Ralph --- SSBN 598]

Okay, I missed this earlier.
I don't use the advanced method, I use direct links to my images on my web site.

Now what I missed.
On the quick reply screen the same insert icon is there.
In the right icon box there is a quote balloon, then a video icon and the picture icon.
The picture icon is the insert image icon. (3rd from right)

I looks like a square with the center of each side pulled in a little.

[Mikesmatrix]

Hello Ralph thanks for your help, the reason it was not working was because i was trying to do it from my phone. I thought i would share some pics of my sub. I am a new to this hobby and all the ideas on this forum has helped me get this far. The wtc is a low pressured water pump system. 12v with a 6v solenoid valve wired to a 10 amp esc, this runs from a 2s lipo. 2x servos one for rudder and the other one will be linked to both set off dive planes with a auto leveler when i find one. Fail safe will be linked to the pump.

[Mikesmatrix]

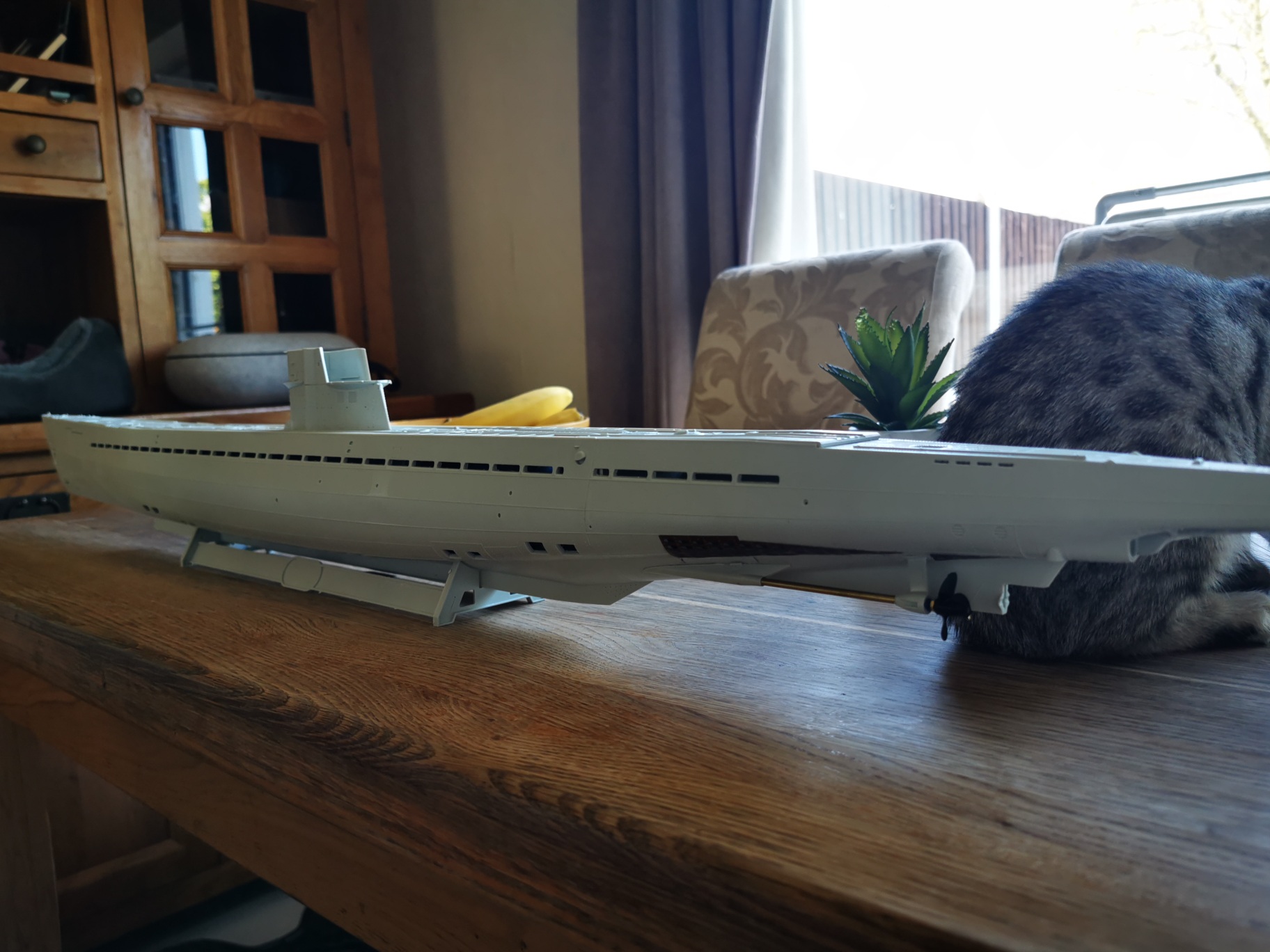

Photo of rear of sub. 3mm tubbing with internal 2mm drive shaft. bushings located on stub shaft in the hull

[Mikesmatrix]

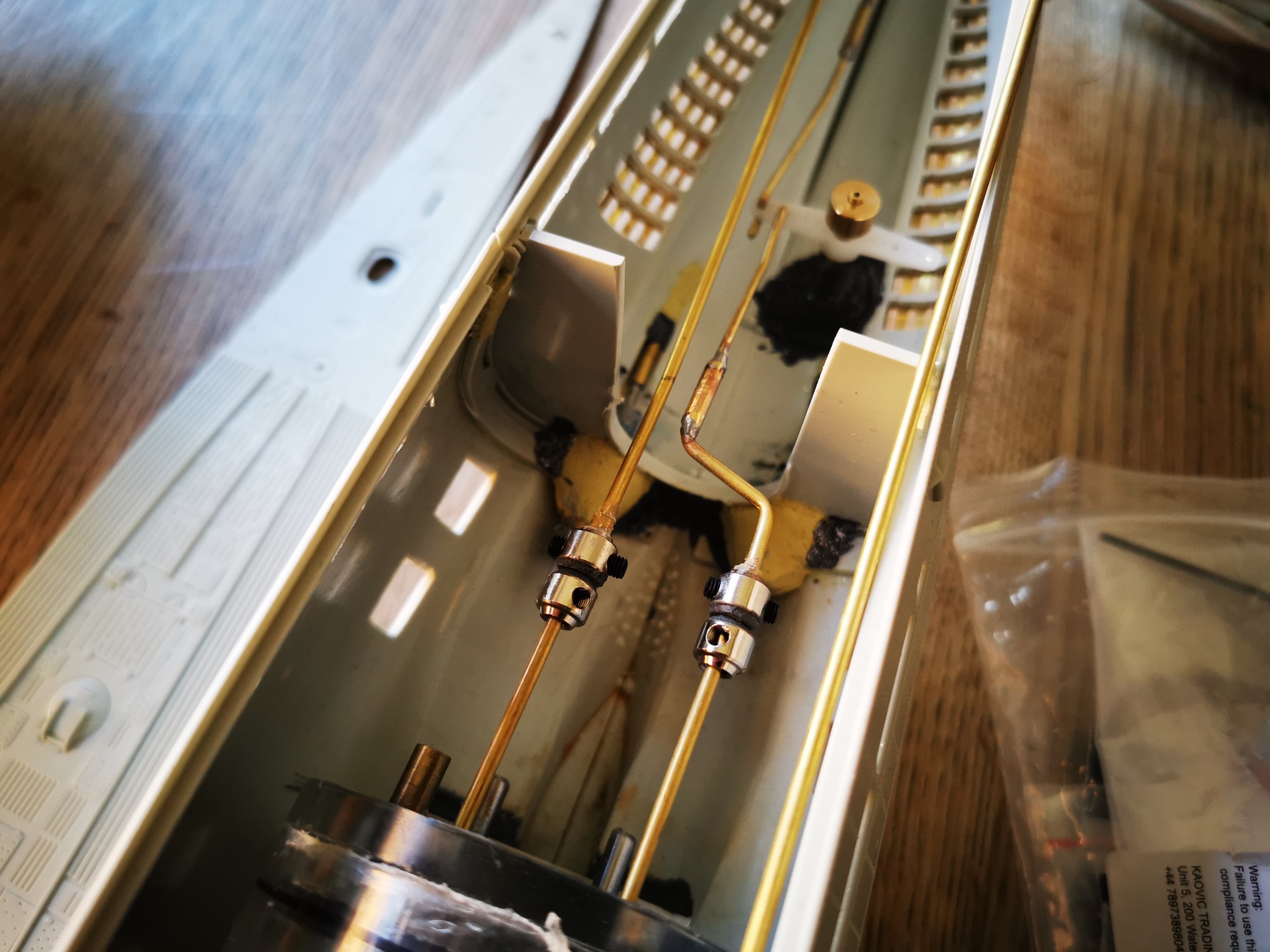

Pic showing the geared rudder method. this was copied from the forum. thank you

[Mikesmatrix]

WTC homemade made from epoxy resin. u cup seals 4x10x4 reversed pointing in to tube. pushrods use two o rings each, one internal and one external as a precaution. I used a slightly smaller drill bit for the O rings to keep a bit more pressure on the rods. all of the seals use RTV sealant

[Mikesmatrix]

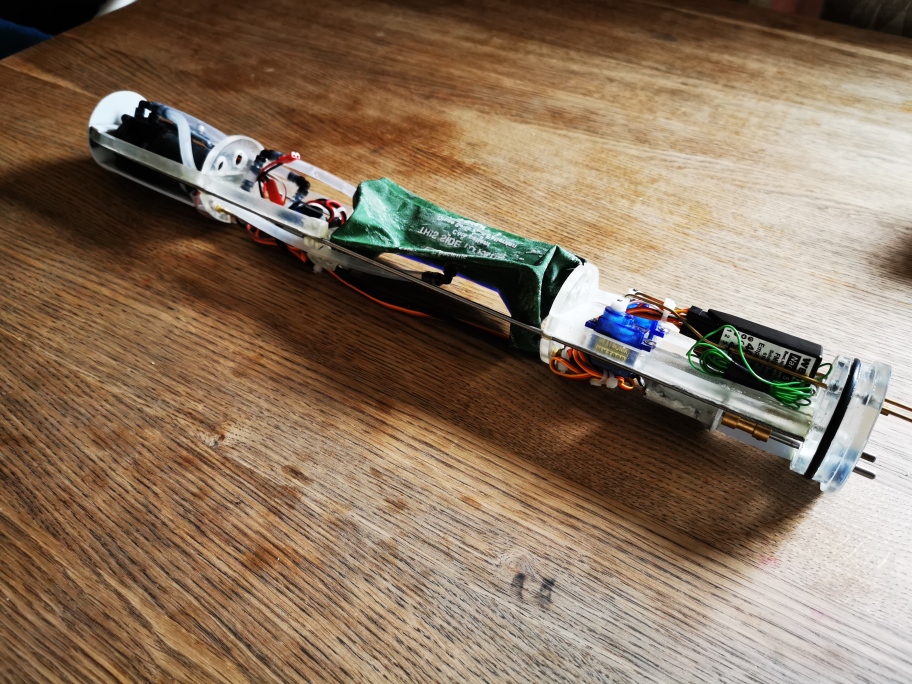

WTC made from epoxy resin. have learnt a lot by building this myself. The WTC uses 2x 180 motors to a 4mm shaft. wtc has been bath tested up and down in the bath over a two hour period with no leaks at present. i am currently in the process of working back on the main hull. Thanks for all your posts.

[Mikesmatrix]

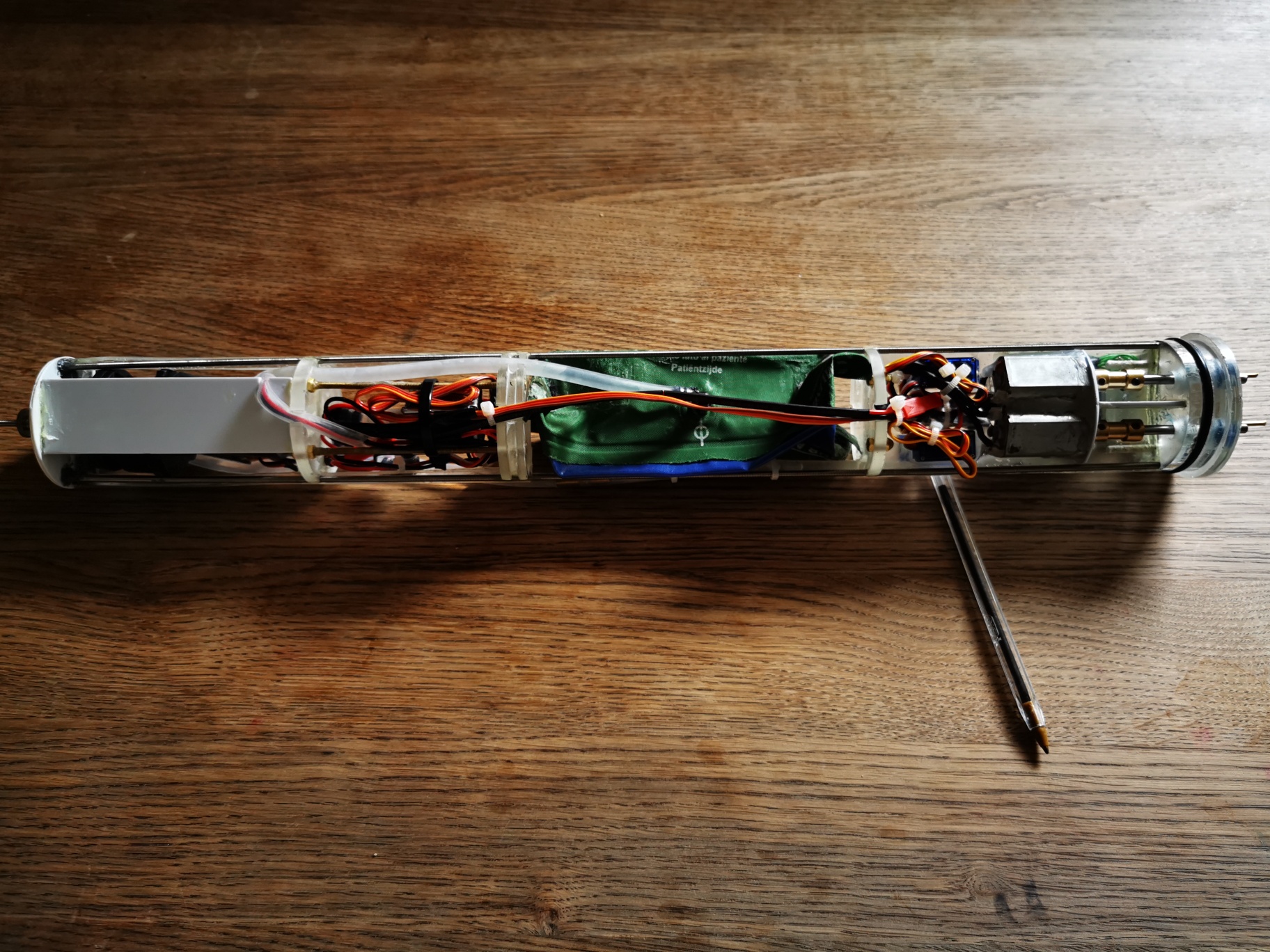

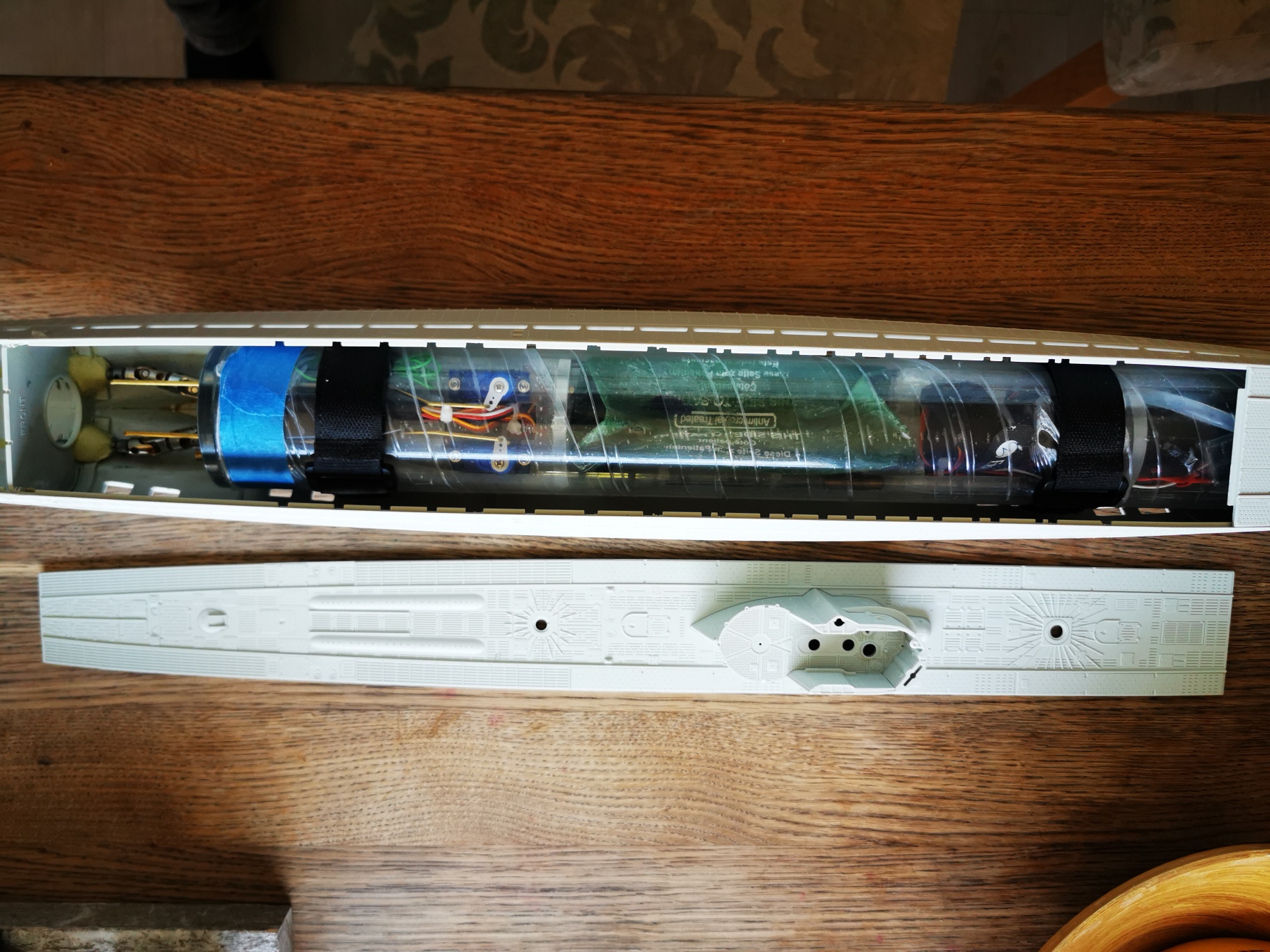

Picture showing the WTC in the sub. tube still covered in protective film

[Mikesmatrix]

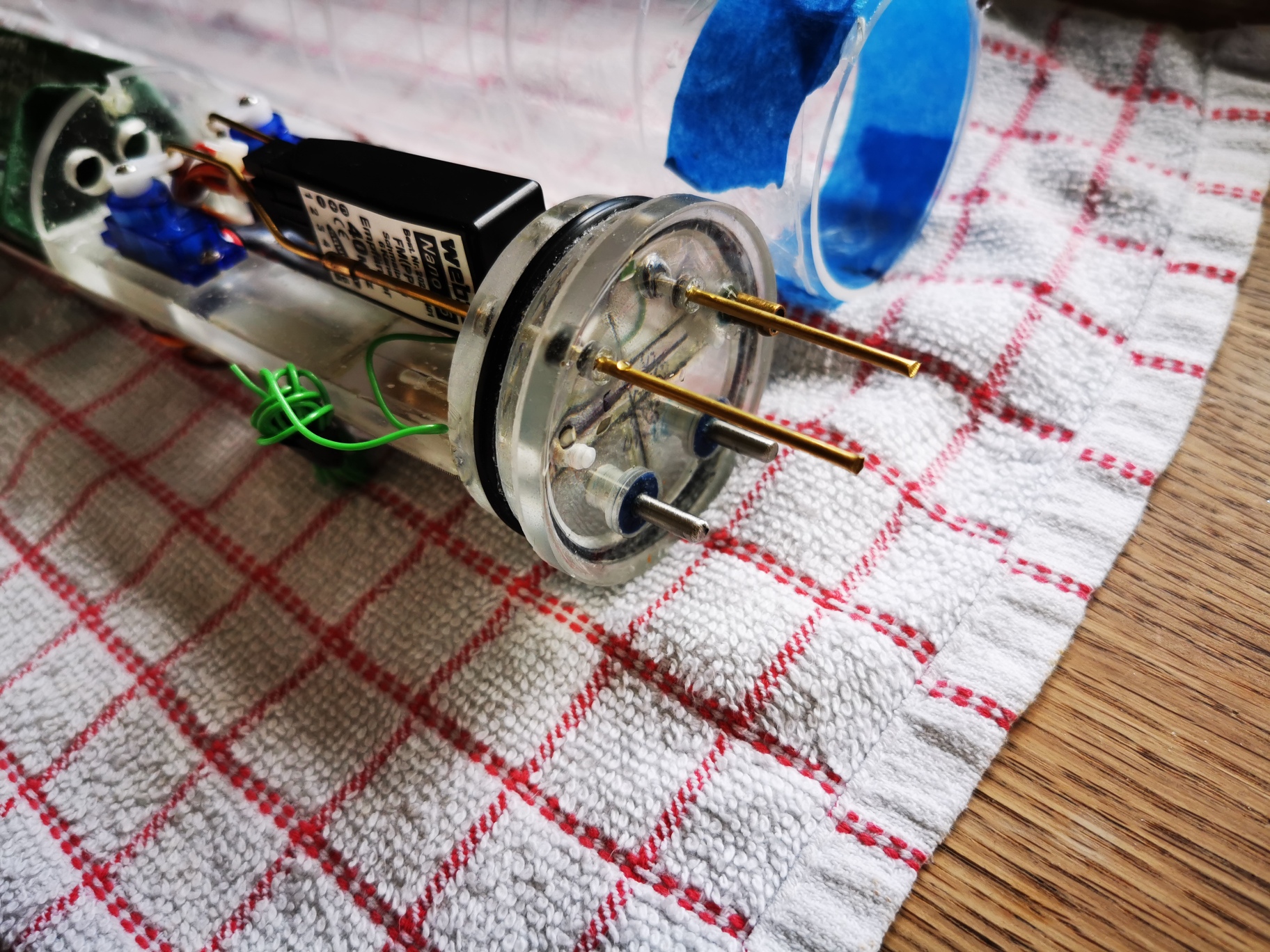

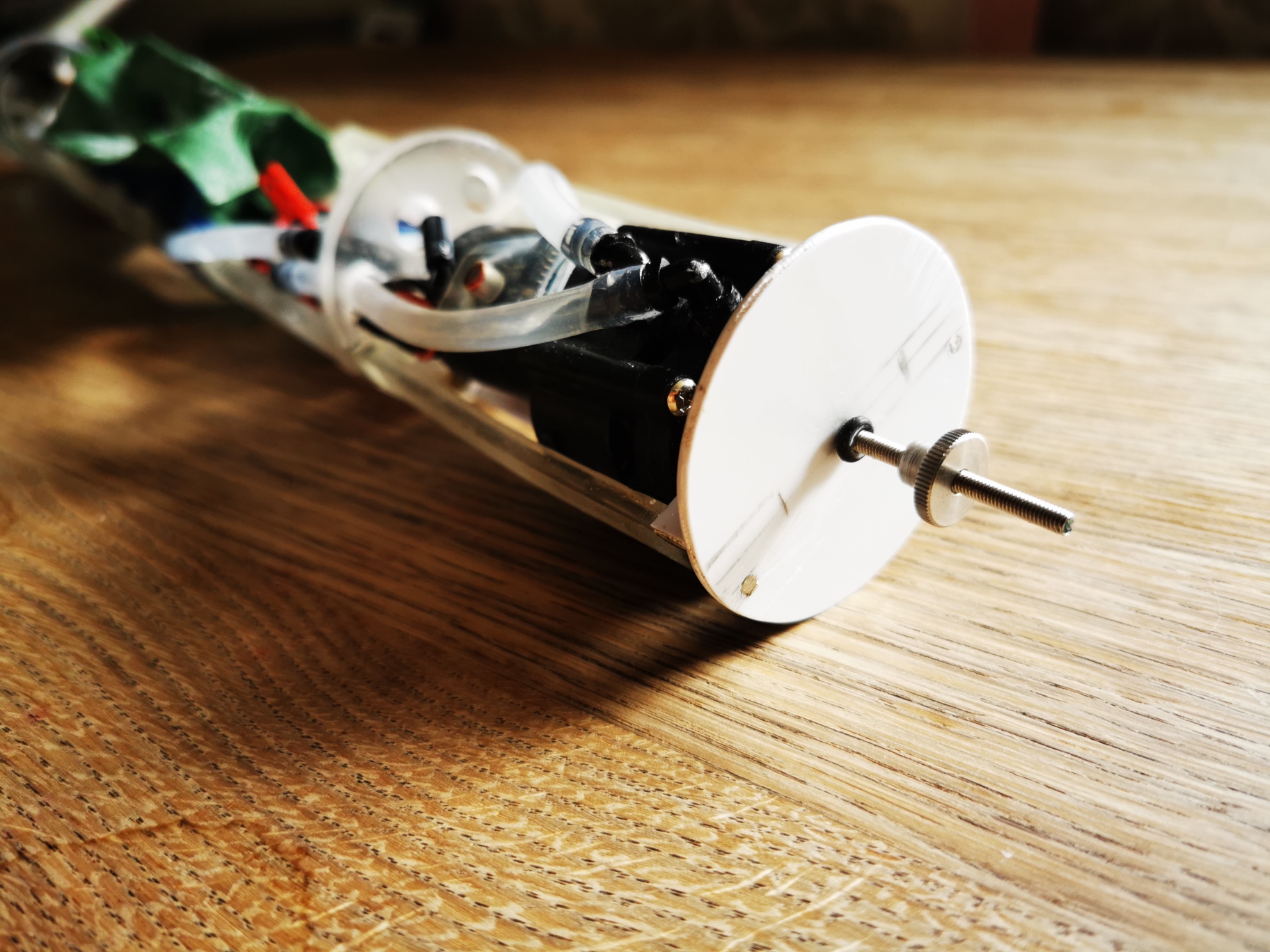

Photo showing the M3 stainless steel thread. this is used to keep the end caps on. there is an o ring on the inside and one on the outside which goes on before the thumb screw. Both o rings have a drilled seat.

[Mikesmatrix]

Underside of WTC with two 180 Motors

[Mikesmatrix]

Here is another picture of the WTC. Thanks for looking at the pics.

[salmon]

Excellent! That is amazing work you have there!
Look forward to sea trials!

[Mikesmatrix]

Thank you. Can anyone tell me we're I could get an auto leveller or recommend one. Something that is not over expensive

[Mikesmatrix]

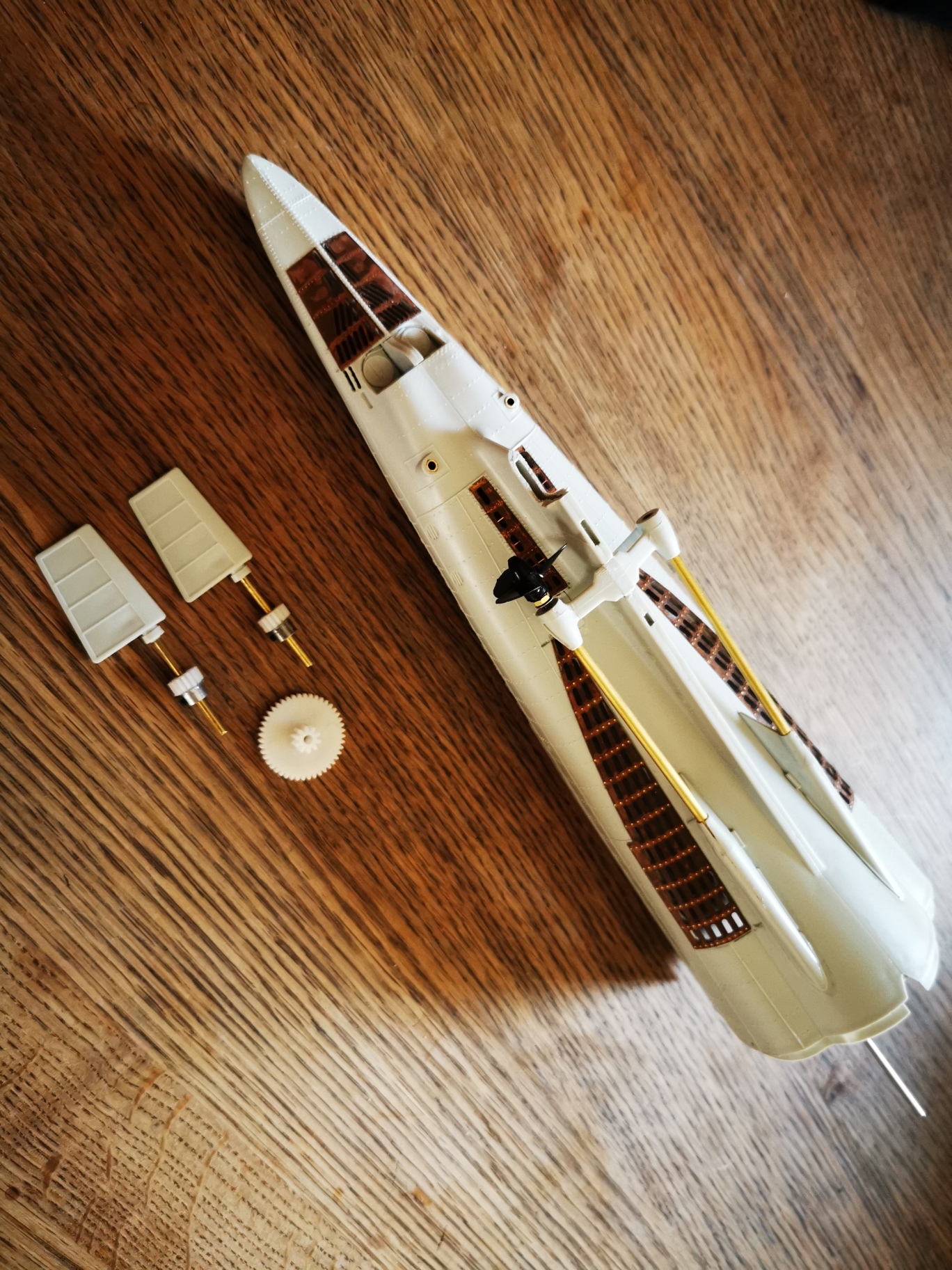

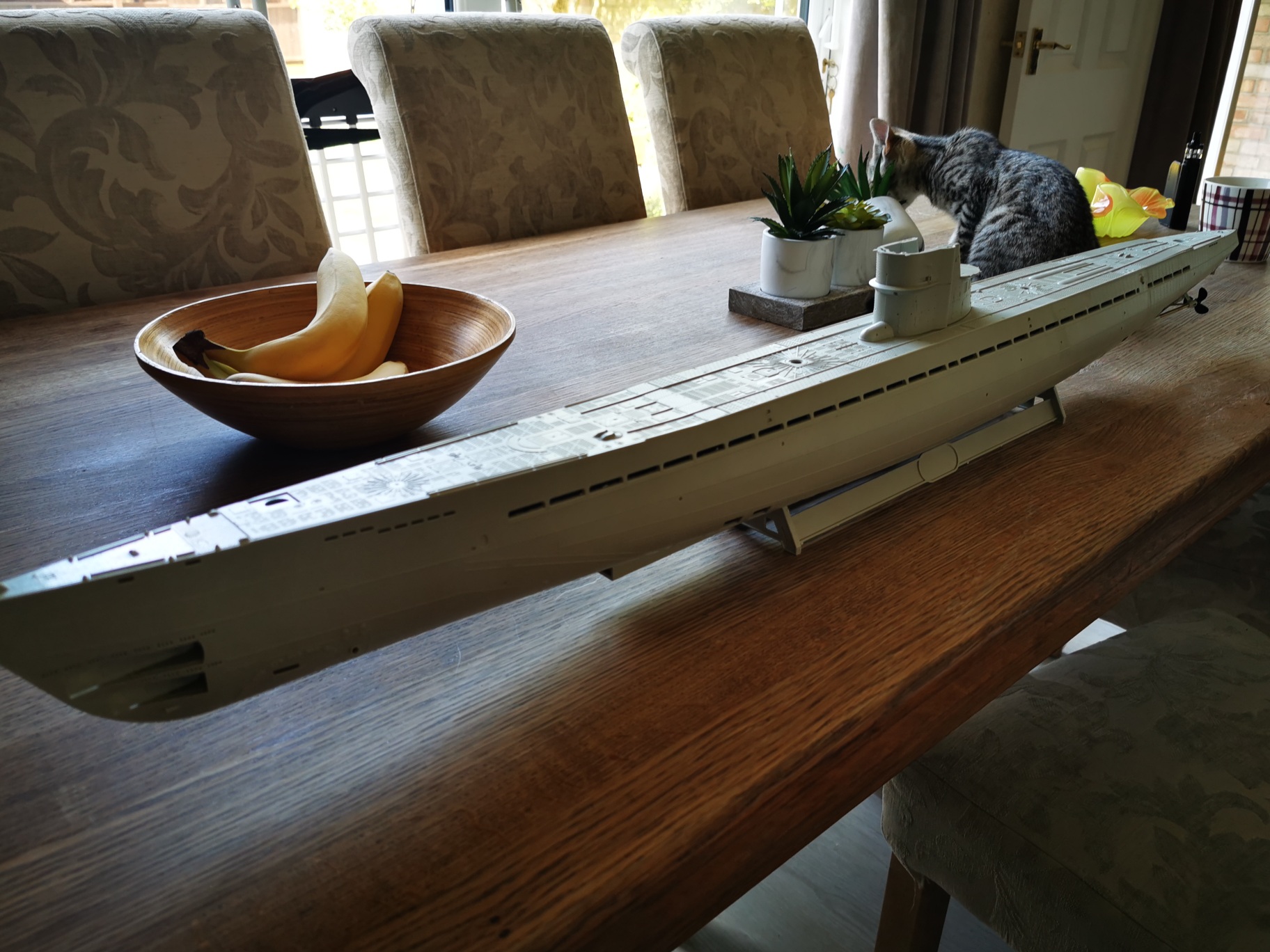

Hello i hop you dont mind me using this thread. I thought i would show you the progress so far. i have now fitted the linkages and dive planes.
