Product announcement: Throttle Jockey

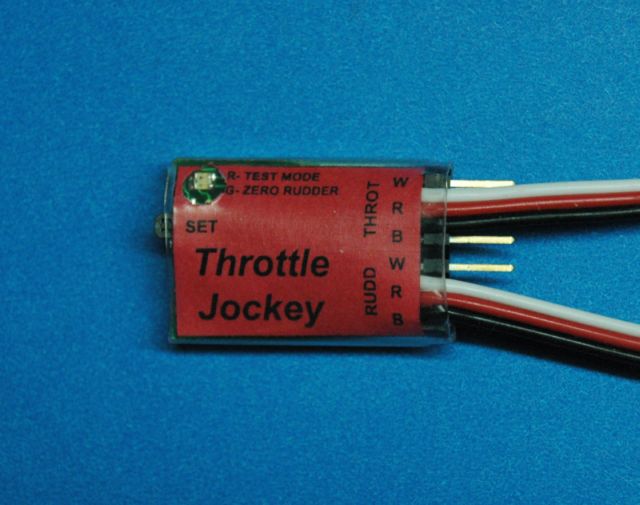

The Throttle Jockey is a specialty mixer made to help manage multi-screw boats. Driven from a single throttle control, it optimally blends in a rudder signal to generate commands for two ESCs to give your boat some extra turning performance. It uses a non-linear mix ratio to provide maximum steering control at low throttle settings, then automatically reduces the steering mix at higher throttle settings so as not to over-drive your ESCs.

The Throttle Jockey is only available directly from KMc Designs. Contact by PM or email (KevinMc.Electonics[at-sign]gmail.com) for pricing and availability.

[southern or]

Could it be used to steer rudderless boats? I have a to scale surface boat that is powered and steered by 2 screws because her rudder is scale and non functional. Right now it has a mixed ESC controlling it.

[KevinMC]

Yes, you definitely could use a Throttle Jockey with a pair of ESC's to drive/steer a rudderless boat.

[southern or]

Almost forgot, it sends the ESC power feed to the receiver right?

[KevinMC]

Correct - although one thing you must do is disconnect one of the red leads from the ESC's so the BECs don't try to "fight" each other.

[southern or]

Love the "Made in Canada" print on the bottom.

[KevinMC]

Love the "Made in Canada" print on the bottom.

Thanks SO.
"Designed, manufactured, tested, and serviced in Canada" seemed a bit much, although I did give it some thought for all the Chinese crap that's out there.
