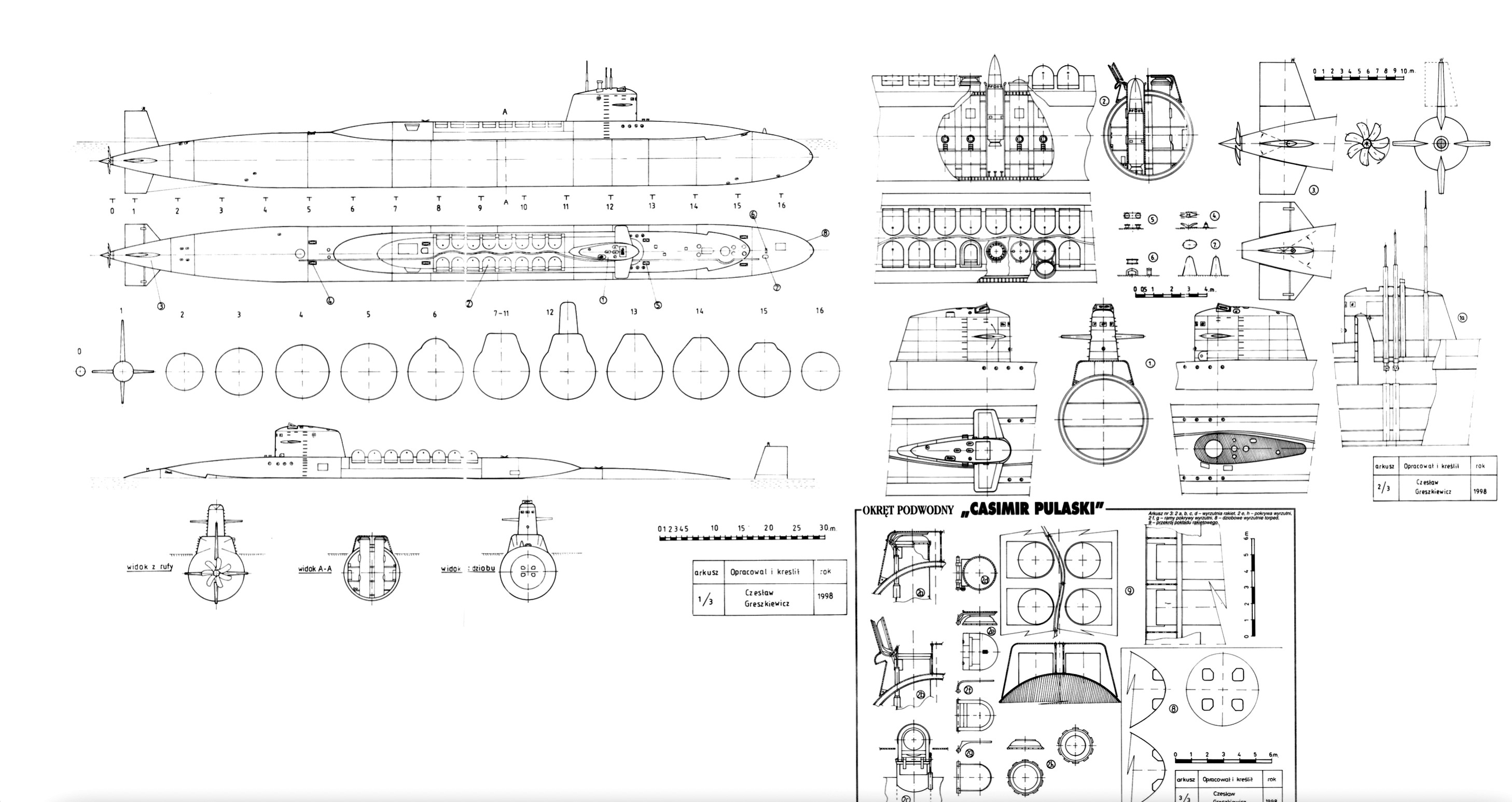

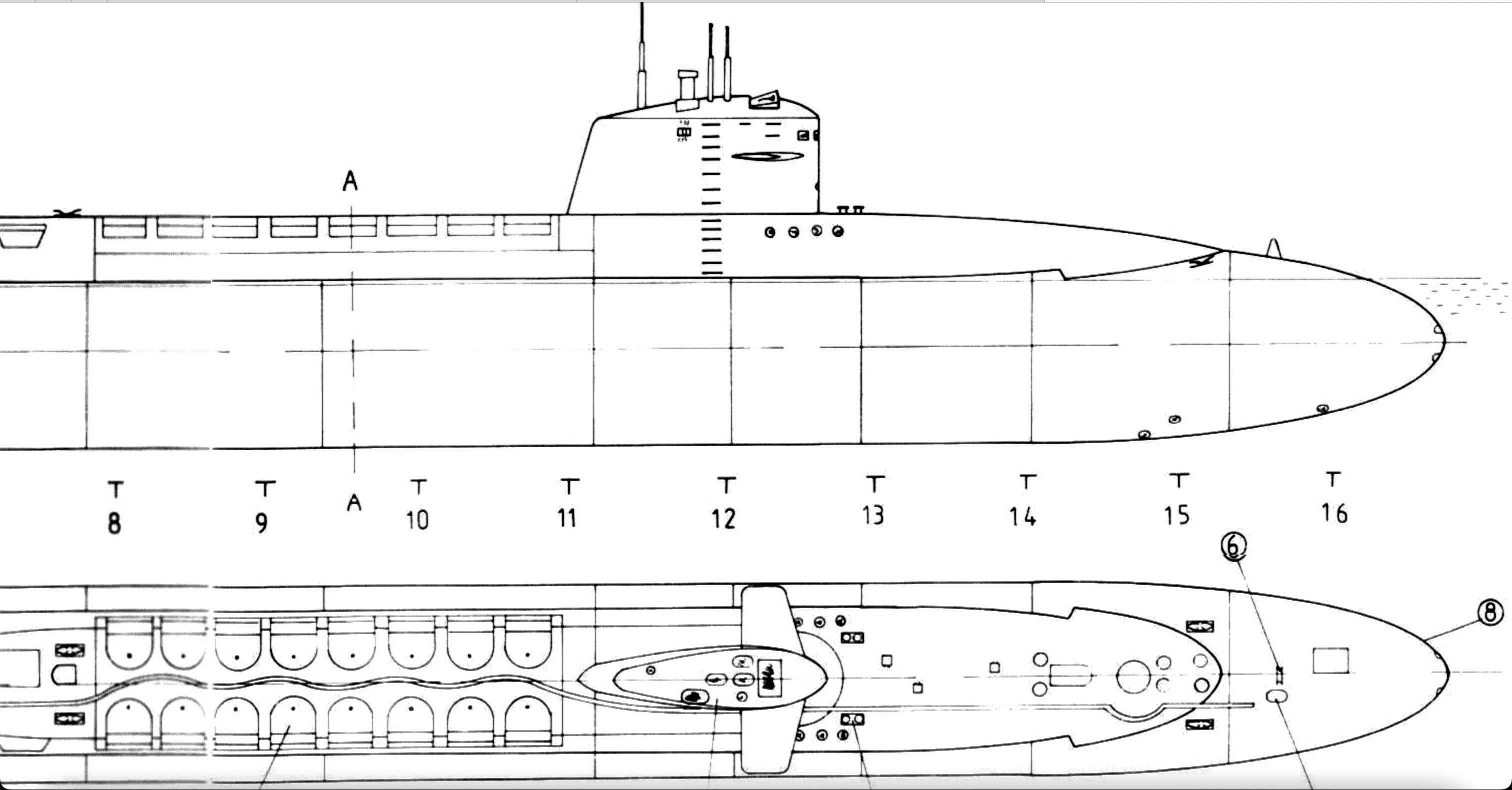

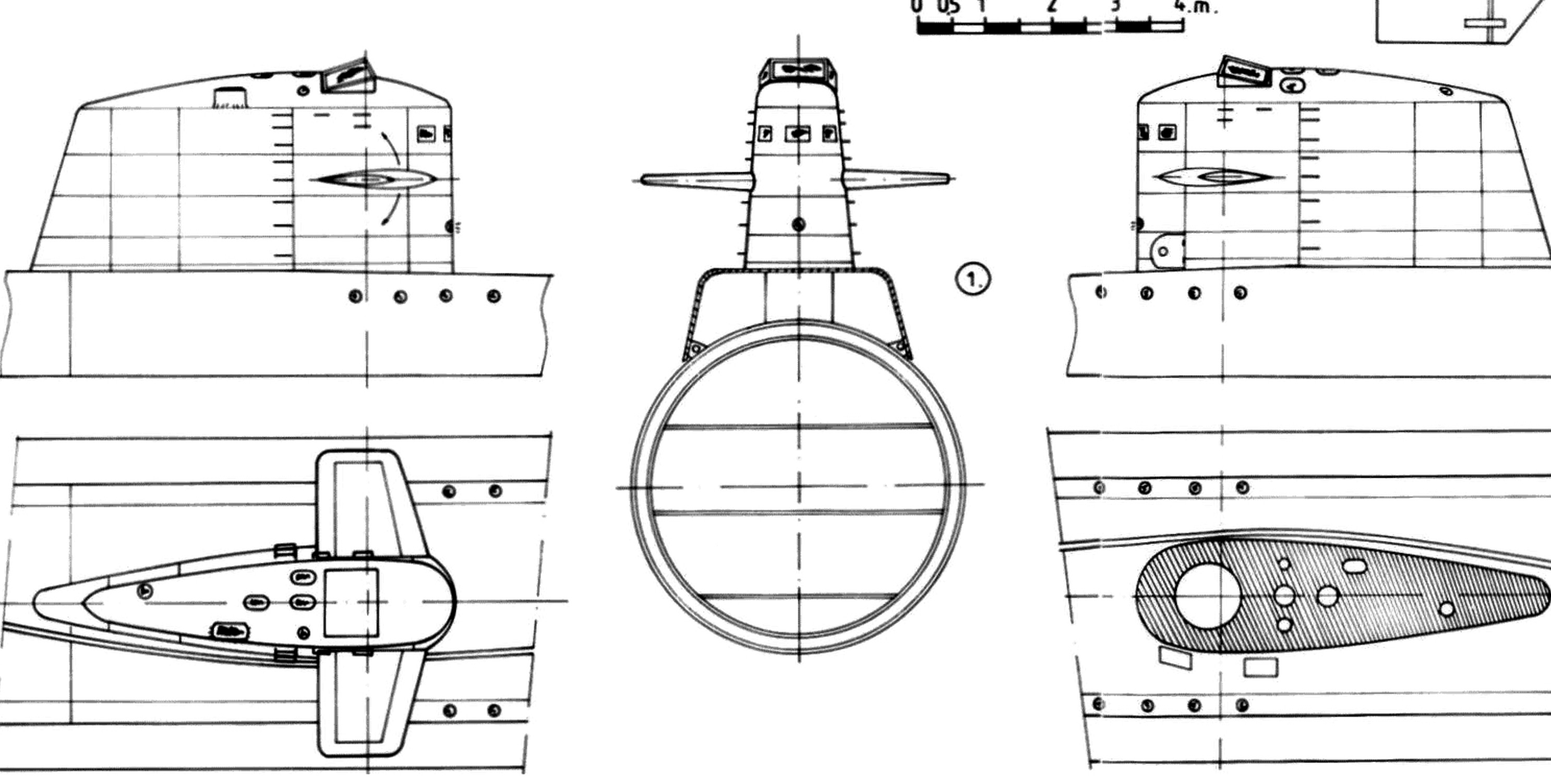

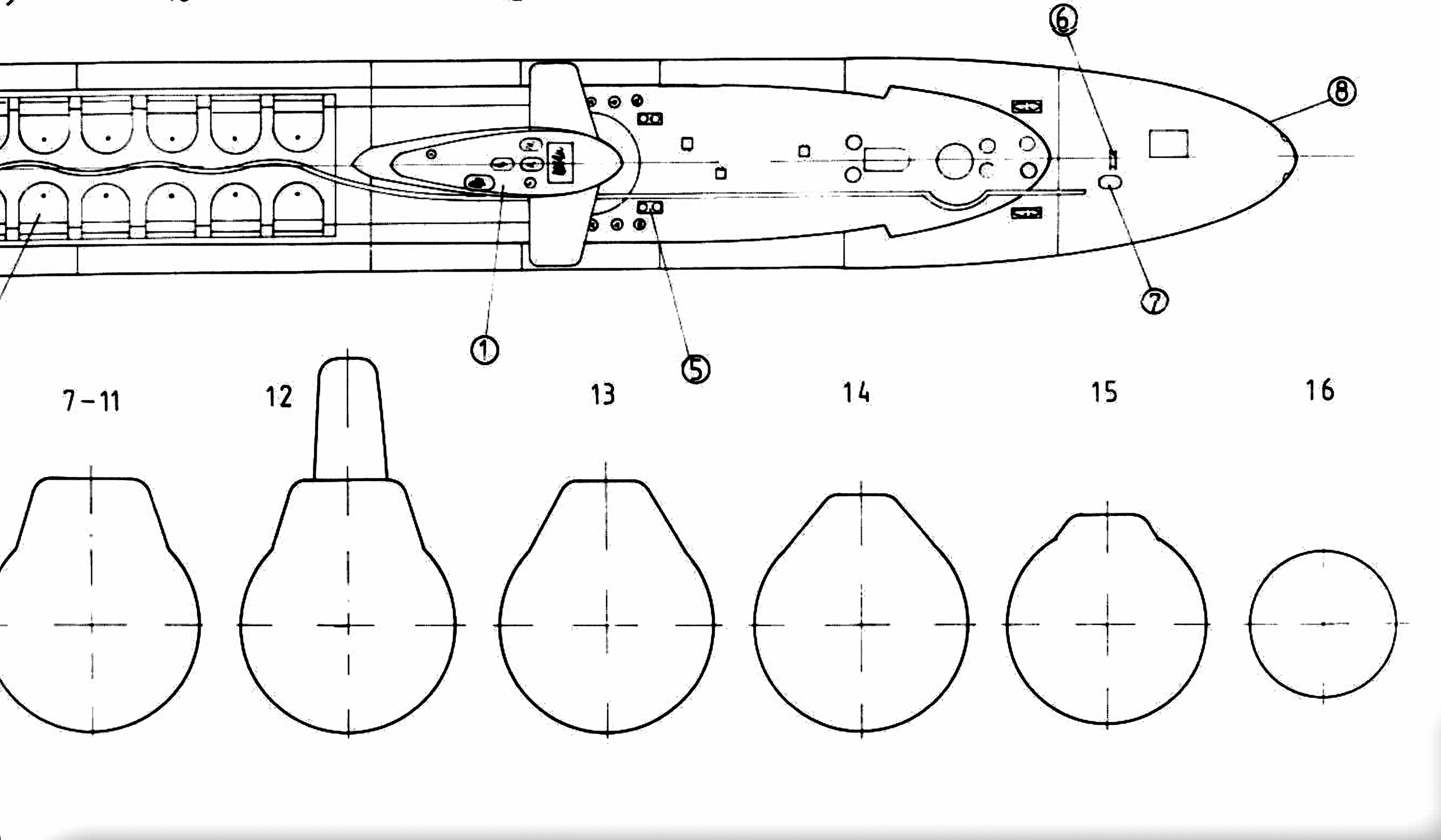

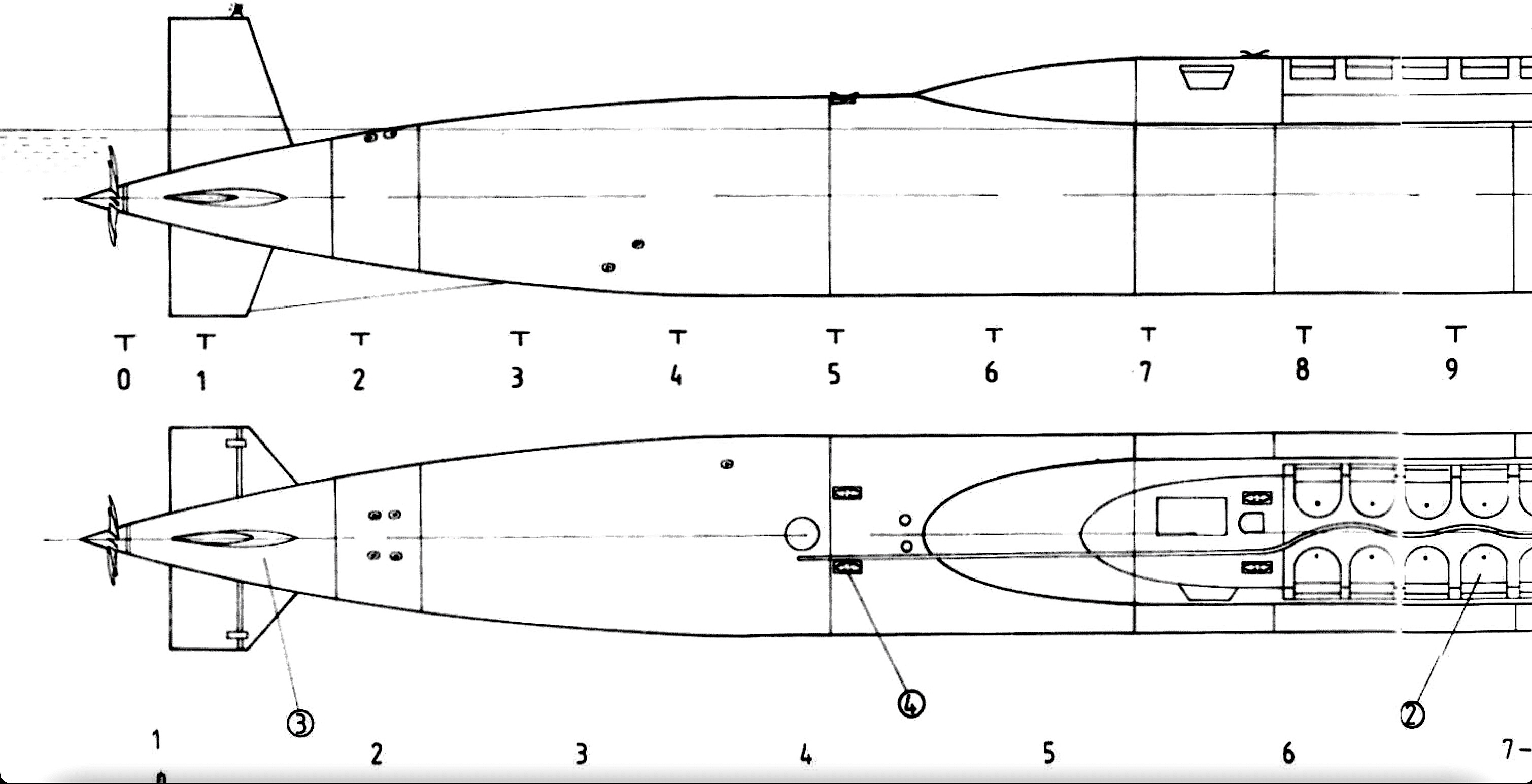

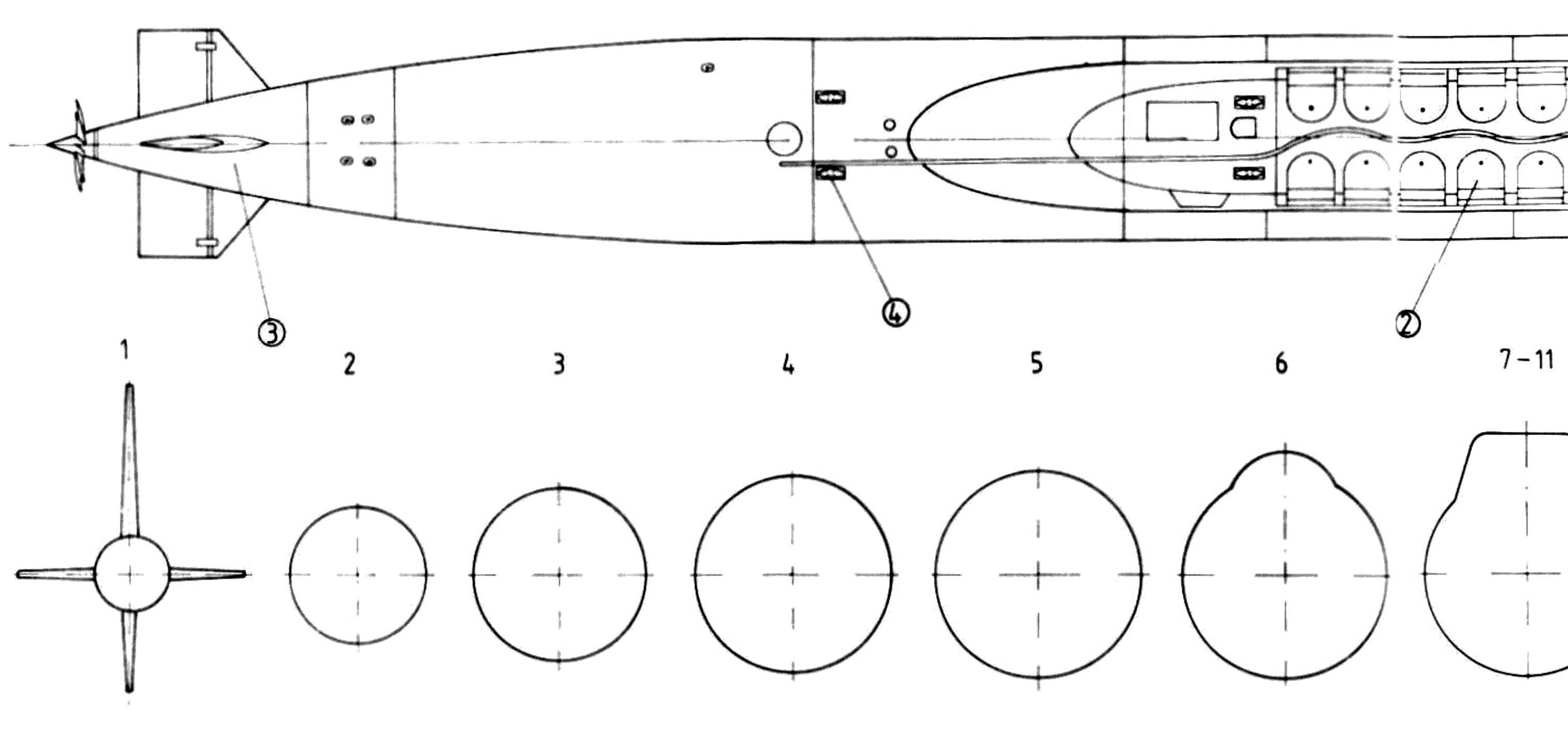

    SSBN 633 (Casimir Pulaski) Drawings

    Madison class SSBN.


    Click image for larger version

Name:	Planset A.jpg
Views:	161
Size:	563.9 KB
ID:	149424


    Click image for larger version

Name:	Planset B.jpg
Views:	154
Size:	423.7 KB
ID:	149425


    Click image for larger version

Name:	Planset C.jpg
Views:	155
Size:	436.6 KB
ID:	149426

    Click image for larger version

Name:	Planset D.jpg
Views:	158
Size:	320.8 KB
ID:	149427


    Click image for larger version

Name:	Planset E.jpg
Views:	150
Size:	419.3 KB
ID:	149428


    Click image for larger version

Name:	Planset F.jpg
Views:	155
Size:	482.3 KB
ID:	149429
  • wlambing
    SubCommittee Member
    • Feb 2003
    • 843

    #2
    Wow! There's a whole butt-ton of stuff wrong with this!! The sail is completely garbage!! Many main deck and hull features either pooched or missing all together!

    Comment

    • tom dougherty
      Senior Member
      • Jul 2005
      • 1355

      #3
      Yeah, it's old and foreign from 1998. I found it in my old files and I mainly posted it because Ed asked for something in this class. Use with great caution.

      But I leave any corrections as an exercise for the interested student.
      (that's what they used to say in calculus class about proofs instead of corrections)
