Triton SSRN 586 drawings

[tom dougherty]

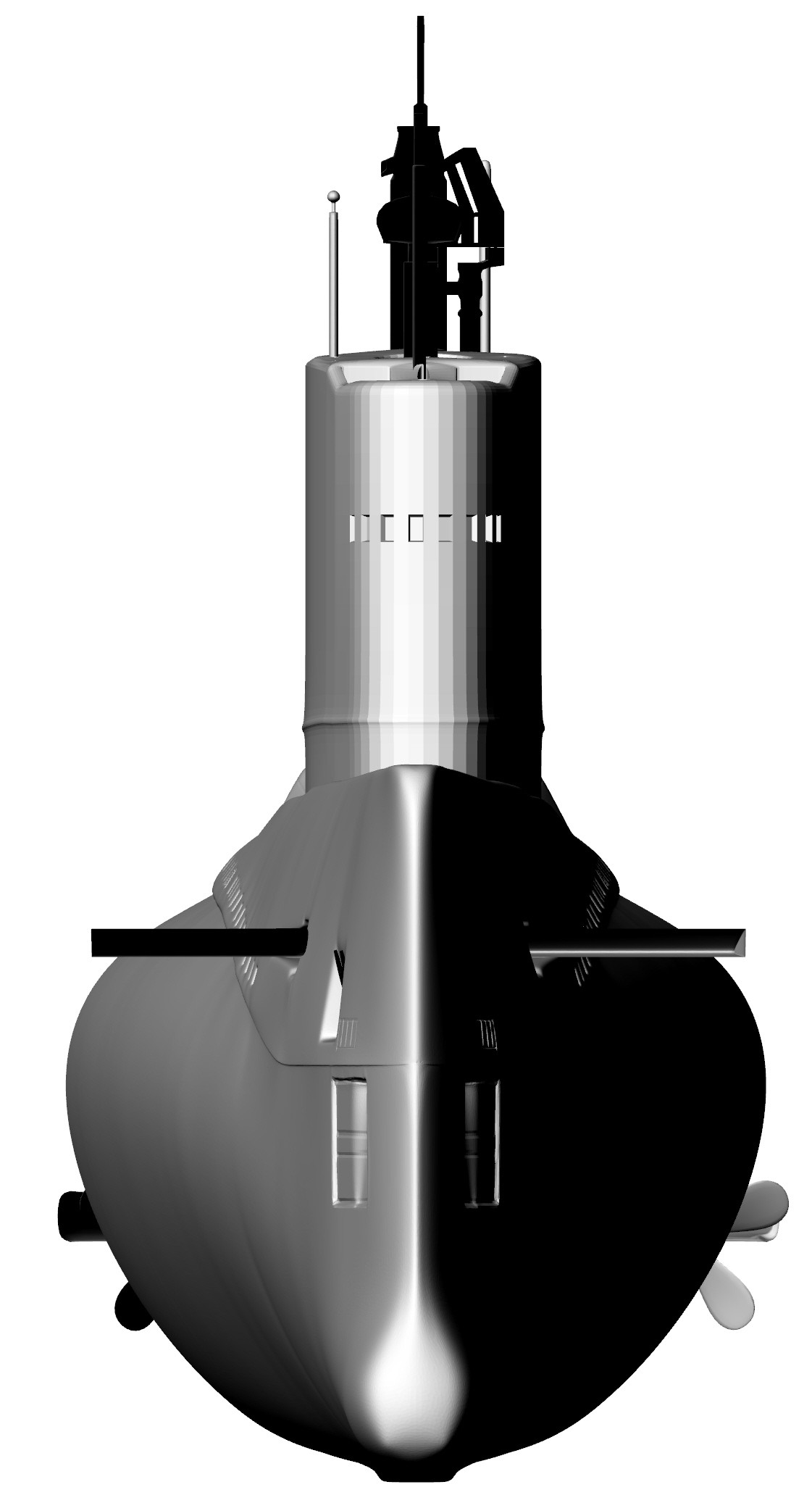

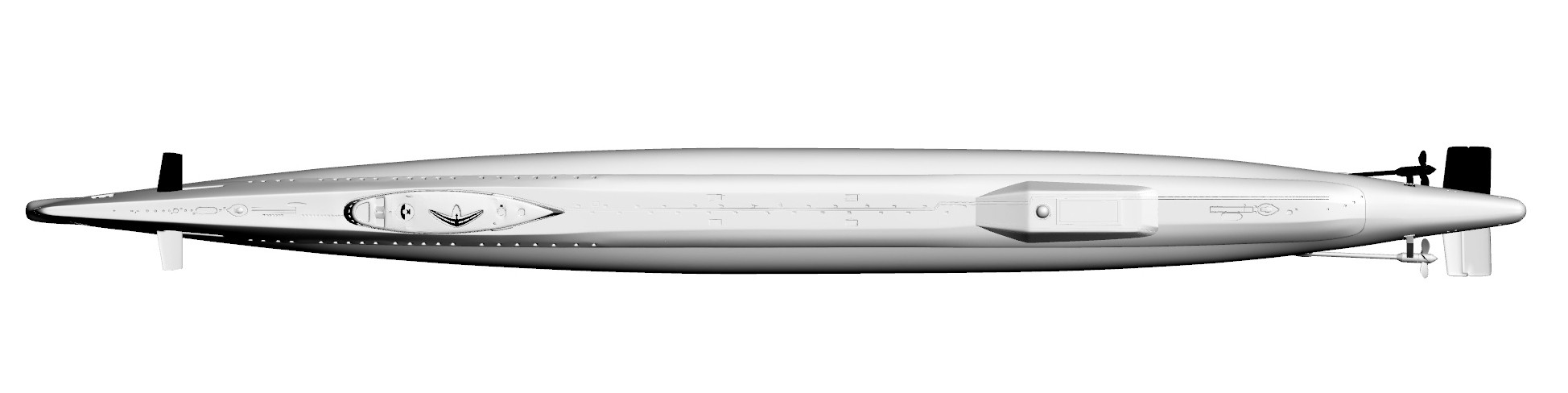

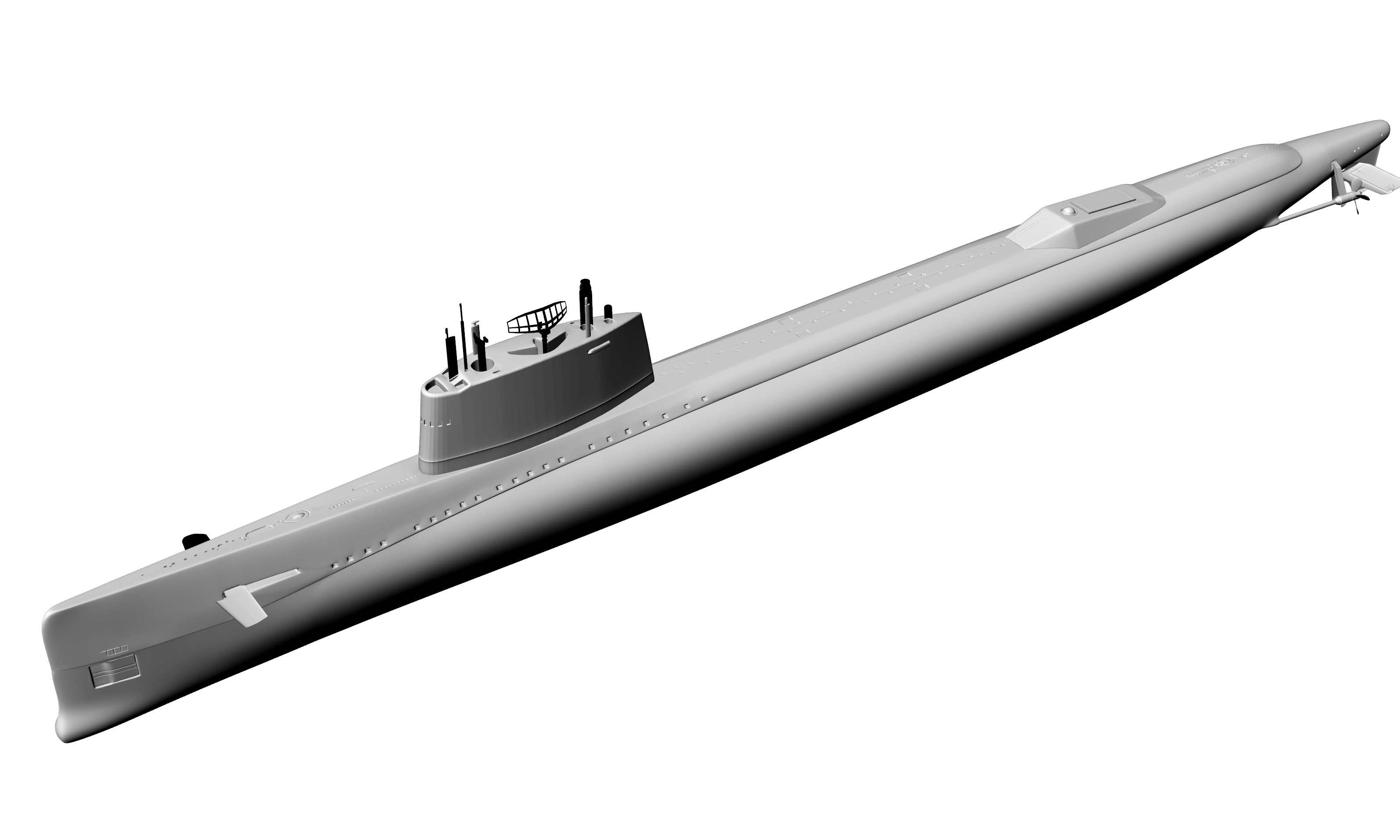

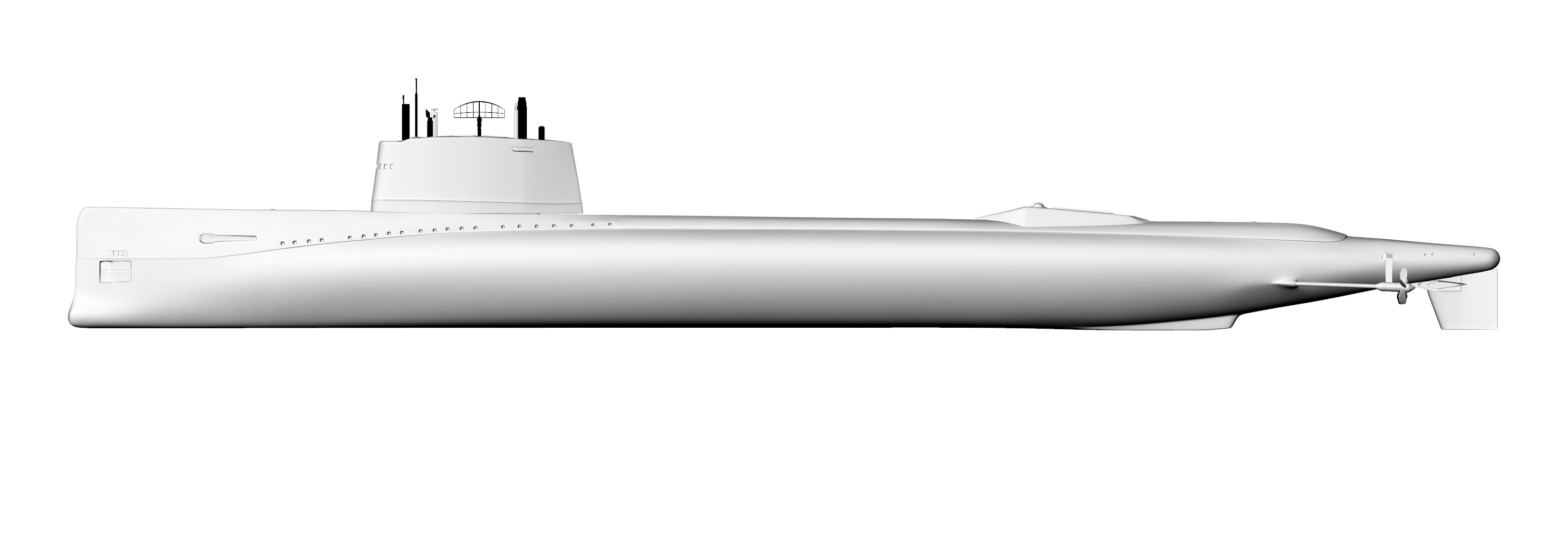

Drawings of the 2 reactor USS Triton, SSRN 586. Built originally as a nuclear powered radar picket submarine. Planset (drawings) are in the PDF attached for downloading, immediately below. Drawings below are 3-D renderings.

[wlambing]

Now, there's a 1/48 scale 3d print challenge!!!!!

[nino]

I think we know some folks who might like to make a Model of Triton. They have not produced any new Sub projects in a while. Are there some Scale drawings?

[wlambing]

Tom, the pdf above come up as "invalid file specified".

[tom dougherty]

Thanks, Bill. I unloaded the PDF and reloaded it again; it is now at the bottom of the original post. It opened for me now and should download. That is the THIRD file I have had corrupted and gets "lost" after I uploaded them. I always check after I load a file to insure it is there. also find that uploading with this system is fairly painful. I upload things in a certain order and they sometimes get scrambled after I am done. While this new forum software is an improvement, it still is a bit buggy!

[petero]

Tom, it looks like the PDF has gone AWOL yet again. I don't see a link in your original post. The renders are still there though. I've just received the Iron Shipwrights 1/350 Triton kit, so I'm interested in seeing how well it agrees with your plans.

Peter

[tom dougherty]

It's under attached files. I just downloaded the drawings as a test twice with no problems...
I opened them up and they are all there.

I suggest the problem is at your end
