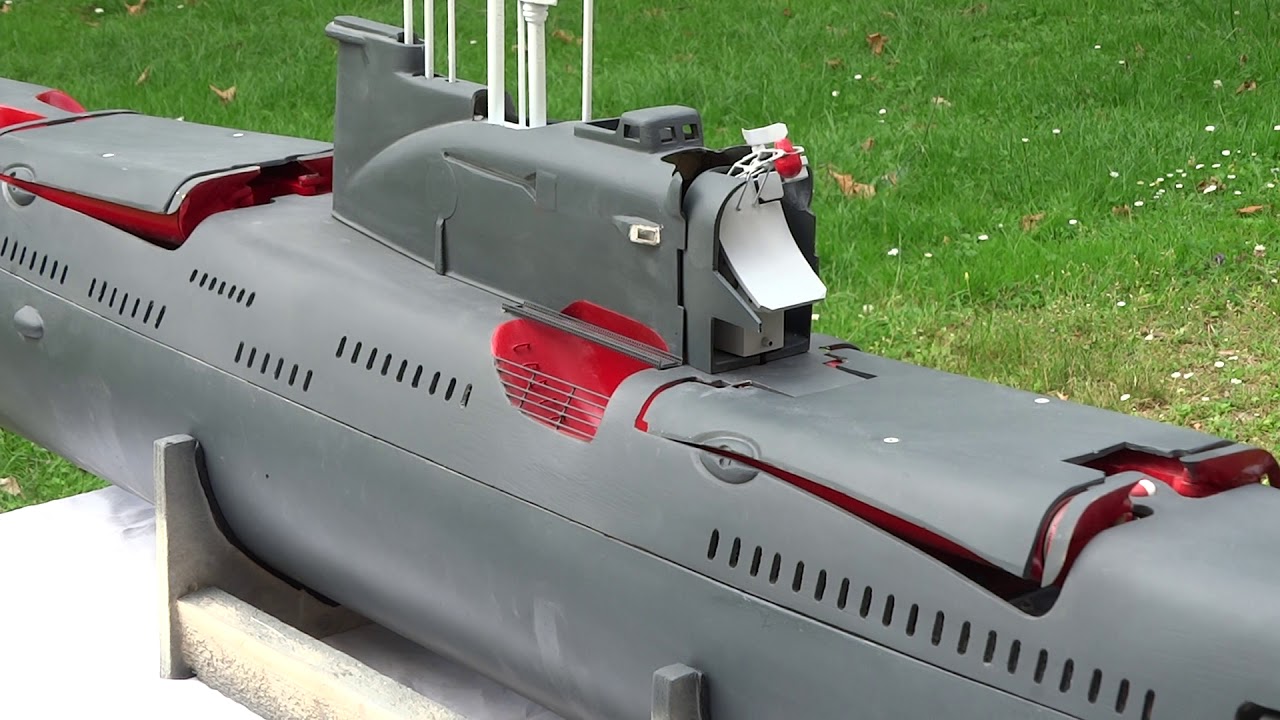

The model of the submarine pr.651 "Juliett -klass" is sold at a scale of 1:50. The model is 172 cm long.
The model is equipped with the Tmax submersible system of the German company Engel and includes:
1 Two submersible cylinders, 500 ml each. XP-500-12V
2 Electronics control data cylinders Tmax2 -12V
3 System of static regulation of the depth of immersion TAES
4 To stabilize the boat while driving under water - Installed stabilizer depth and position of the boat LR6
5 to control the American running motor "Bühler" installed waterproof stroke control
Navy-30R
6 To control the steering wheels and the depth set steering cars Savox and Tunder Tigr
7 To turn on the boat installed magnetic switch 16A
8 To control the motors of auxiliary mechanisms:
8.1 raising and lowering an antenna targeting missiles "Argument"
8.2 Rotation of the front part of the deckhouse where the antenna "Argument" is installed
8.3 raising and lowering retractable antennas and periscors
8.4 Raising and lowering rocket mines, as well as their opening and closing
8.5 Extension of the front horizontal rudders
8.6 Switching the running lights on and off
a multiswitch decoder and 5 relay units are installed in the model case
9 For receiving commands, a R118 receiver with quartz 83 channels 40MHz is installed in the model
10 To control the model, a Futaba F14 40 MHz transmitter with 83 channel quartz and a built-in multiswitch encoder is included in the package
11 The model also has the following text. protection against:
11.1 depressurization
11.2 signal loss from the transmitter
11.3 immersion depth exceeding 1.8 m
11.4 power loss or battery discharge
At these violations, the model receives a command for immediate ascent.

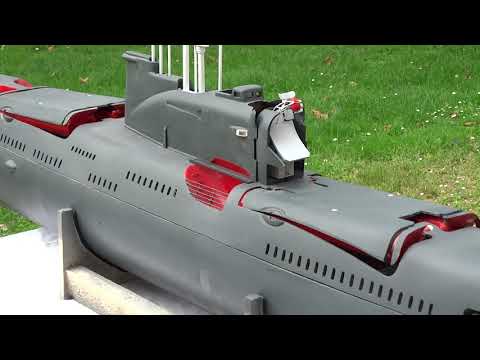

Fully functioning of all mechanisms of the model. You can see on YouTube:
https://youtu.be/lMDaGlDZHsI
on the acquisition of this model, write: lazarkerzmann@gmx.de
The buyer must take the model out of Germany himself
The model is equipped with the Tmax submersible system of the German company Engel and includes:
1 Two submersible cylinders, 500 ml each. XP-500-12V
2 Electronics control data cylinders Tmax2 -12V
3 System of static regulation of the depth of immersion TAES
4 To stabilize the boat while driving under water - Installed stabilizer depth and position of the boat LR6
5 to control the American running motor "Bühler" installed waterproof stroke control
Navy-30R
6 To control the steering wheels and the depth set steering cars Savox and Tunder Tigr
7 To turn on the boat installed magnetic switch 16A
8 To control the motors of auxiliary mechanisms:
8.1 raising and lowering an antenna targeting missiles "Argument"
8.2 Rotation of the front part of the deckhouse where the antenna "Argument" is installed
8.3 raising and lowering retractable antennas and periscors
8.4 Raising and lowering rocket mines, as well as their opening and closing
8.5 Extension of the front horizontal rudders
8.6 Switching the running lights on and off
a multiswitch decoder and 5 relay units are installed in the model case
9 For receiving commands, a R118 receiver with quartz 83 channels 40MHz is installed in the model
10 To control the model, a Futaba F14 40 MHz transmitter with 83 channel quartz and a built-in multiswitch encoder is included in the package
11 The model also has the following text. protection against:
11.1 depressurization
11.2 signal loss from the transmitter
11.3 immersion depth exceeding 1.8 m
11.4 power loss or battery discharge
At these violations, the model receives a command for immediate ascent.
Fully functioning of all mechanisms of the model. You can see on YouTube:
https://youtu.be/lMDaGlDZHsI
on the acquisition of this model, write: lazarkerzmann@gmx.de
The buyer must take the model out of Germany himself
