Bringing 1/128 Seaview back to the pond!

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts
  • salmon
    Treasurer
    • Jul 2011
    • 2327

    #31

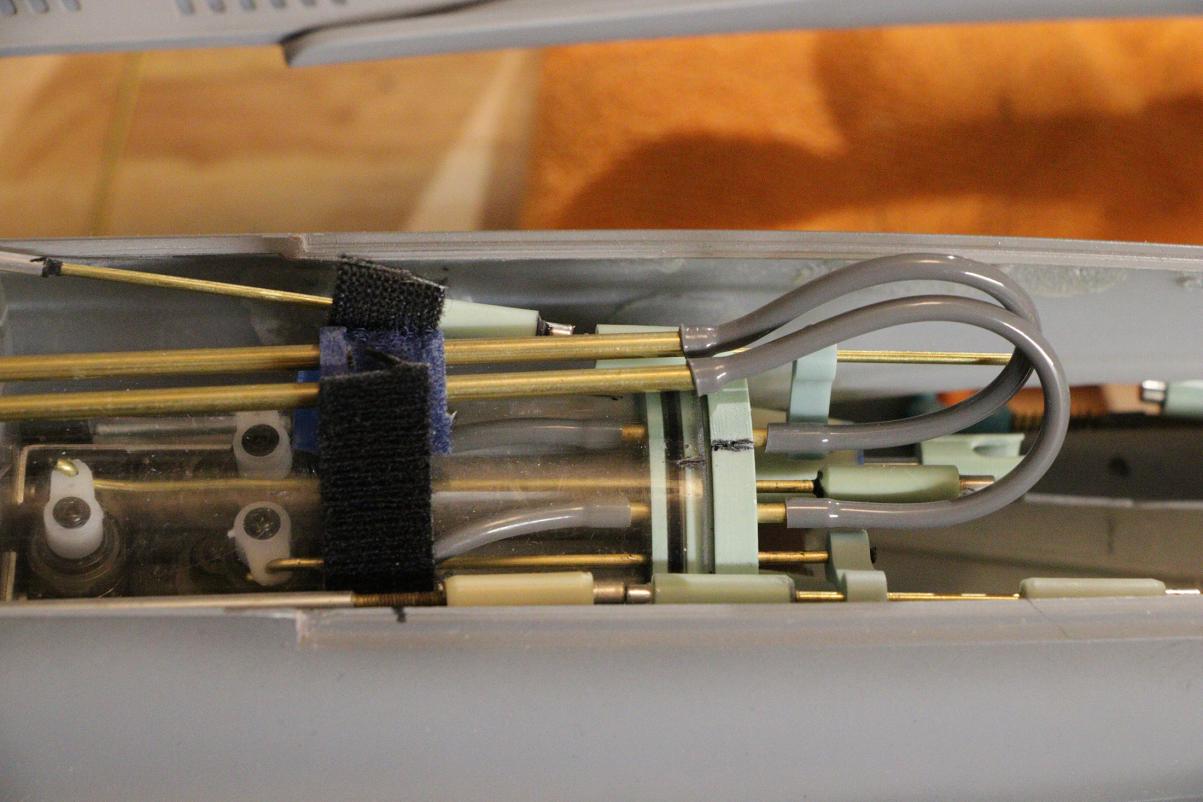

    Running the air hoses for the SAS system.

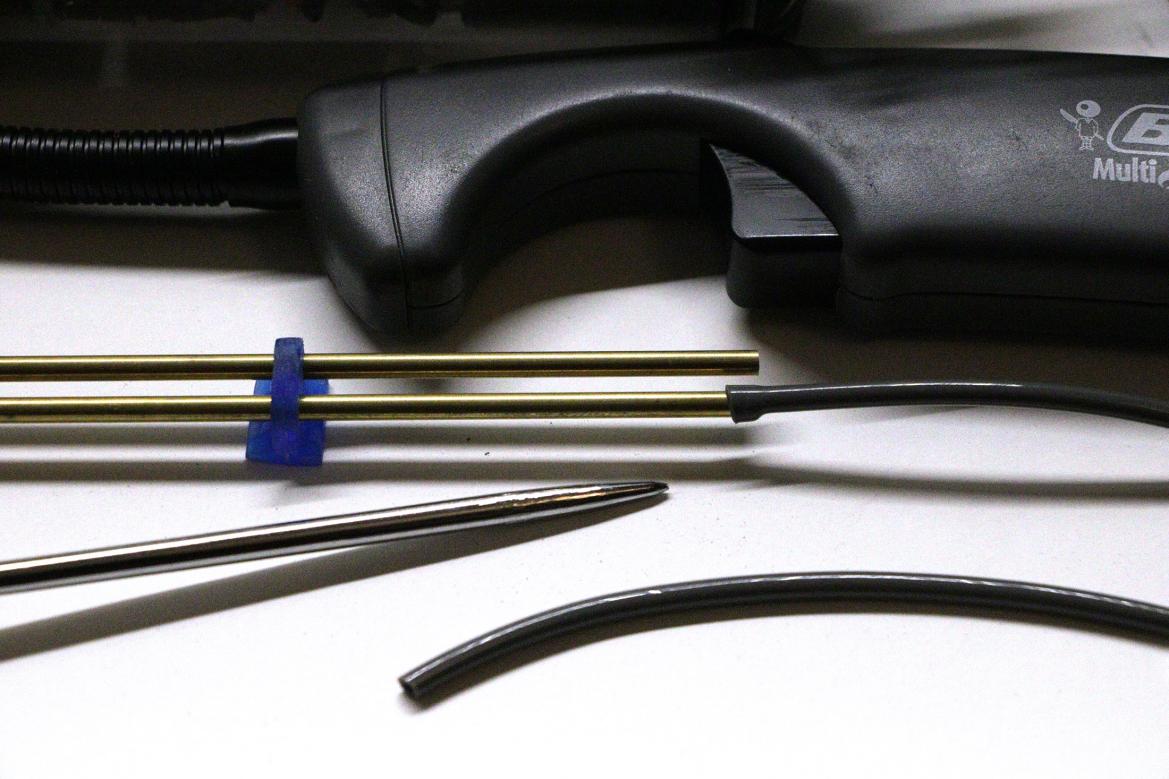

    On my Gato, I made a holder for 3/32" aluminum tubes that brought air to and from the pump.
    Click image for larger version

Name:	Seaview _046b.jpg
Views:	2
Size:	94.4 KB
ID:	133158

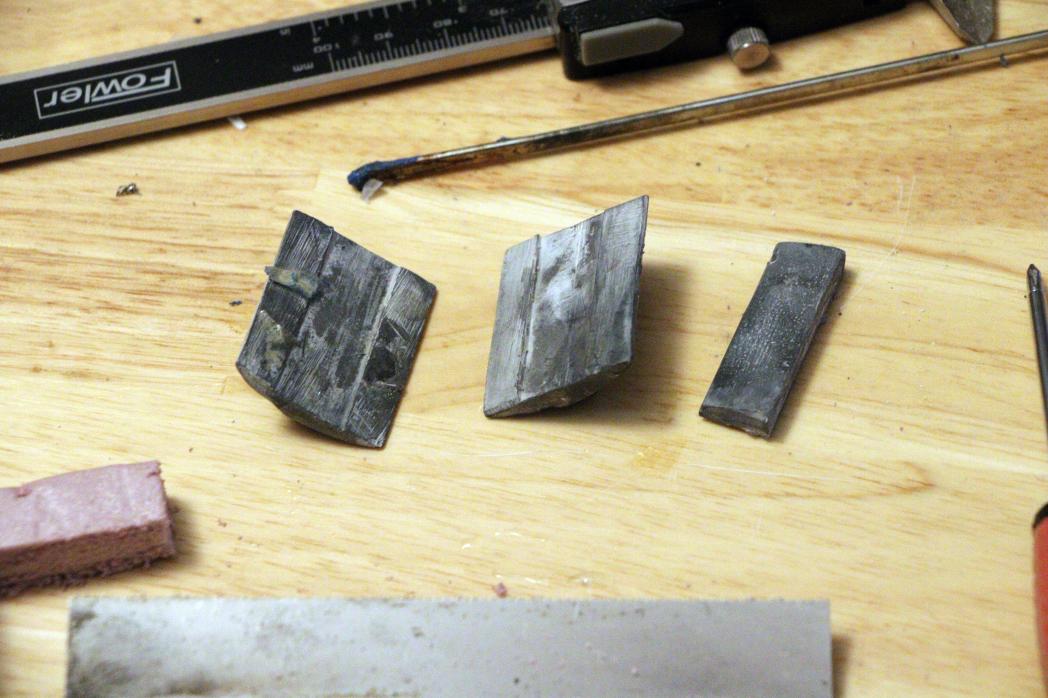

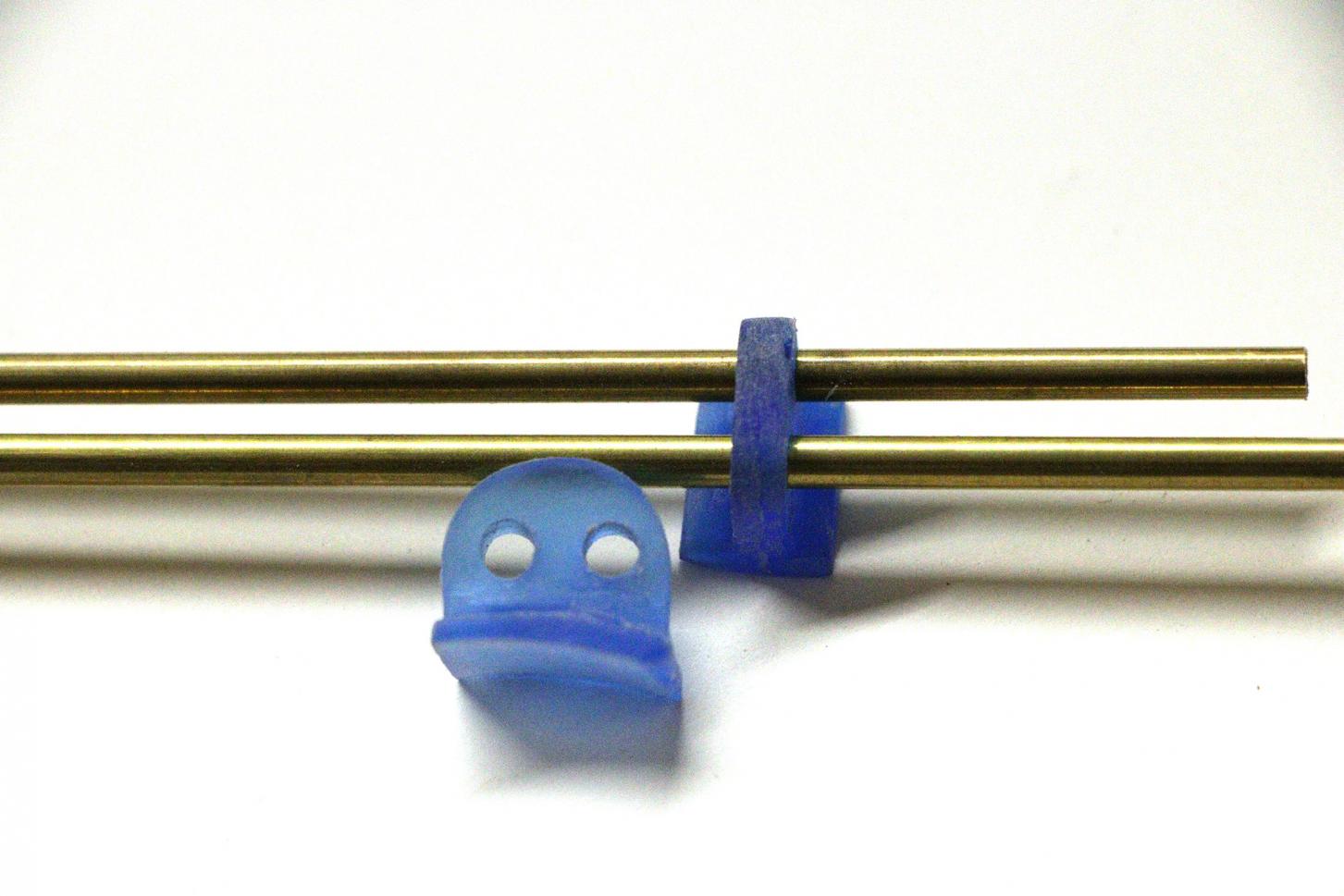

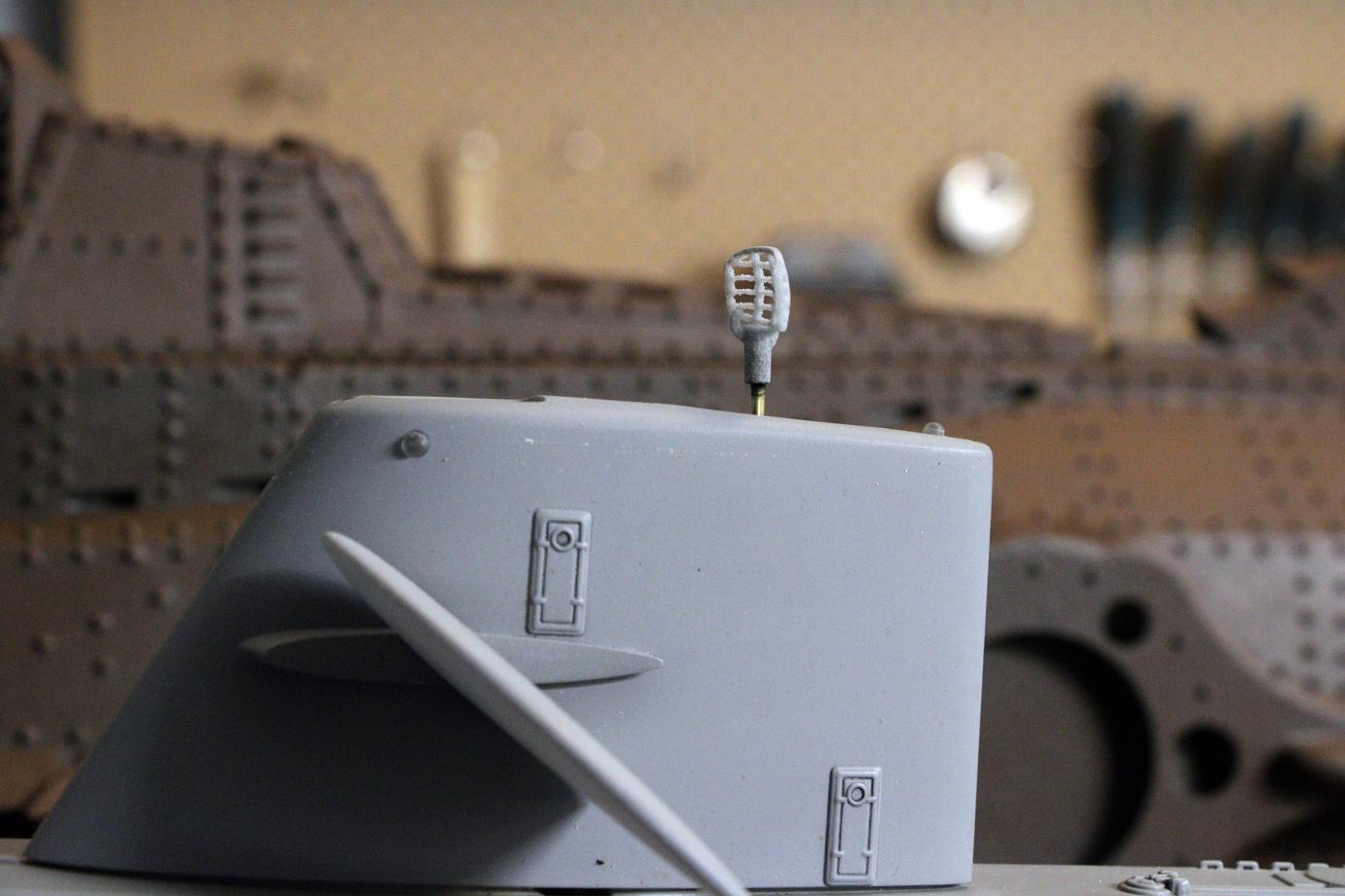

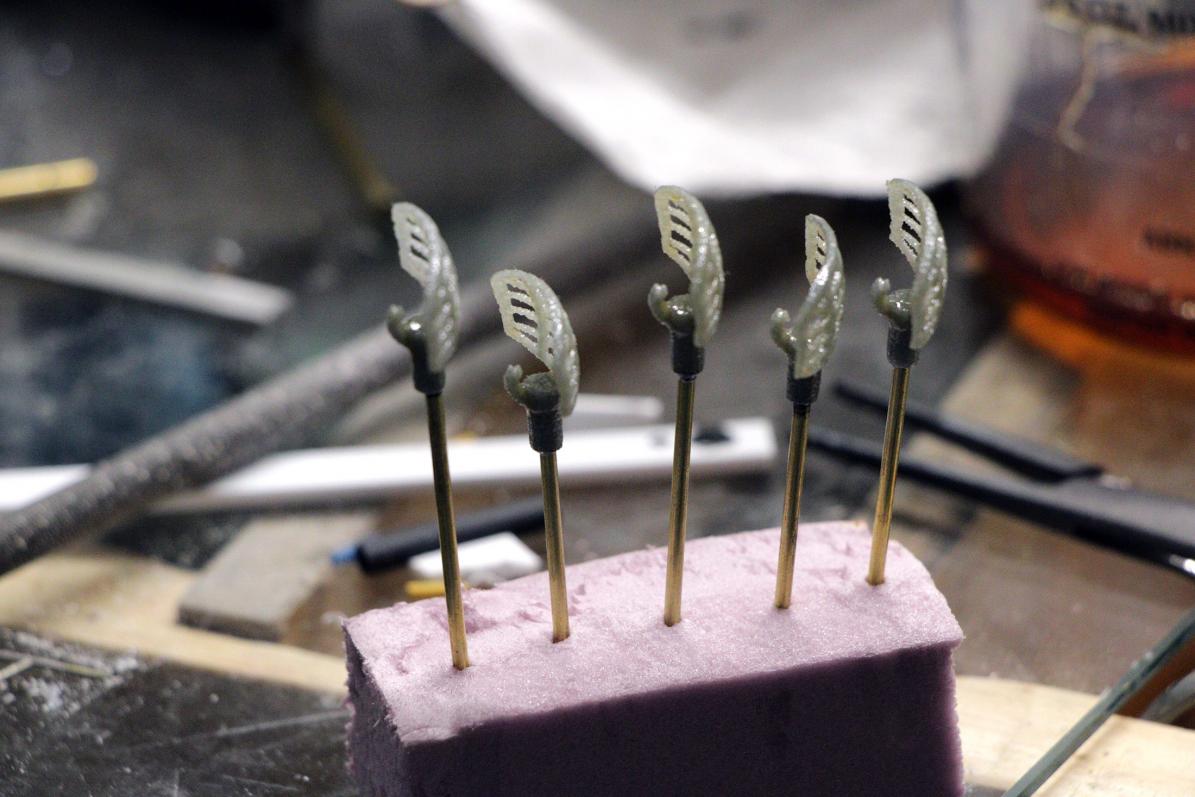

    So, I already had the mold and as it was, I cast periscopes for my Gato and this part is in the same mold. The resin I used is for a different project I am working on and whenever there is extra resin I cast extra parts. Now I did not have 3/32" Aluminum tubes or 1/8". I din not have any brass tube in 3/32", but I did have 1/8". I cut out two tubes the length I needed and drilled out the holes to fit 1/8".
    Click image for larger version

Name:	Seaview _046.jpg
Views:	1
Size:	103.4 KB
ID:	133159

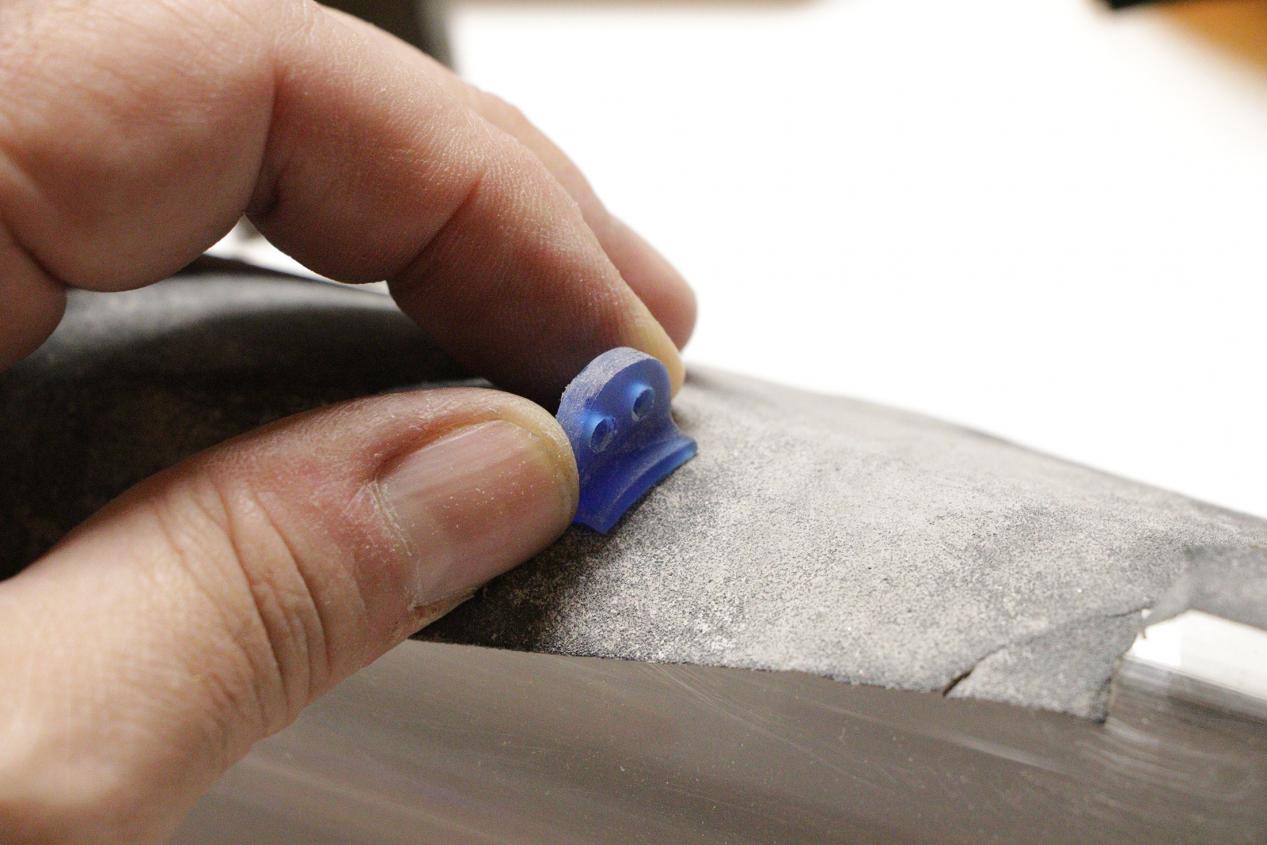

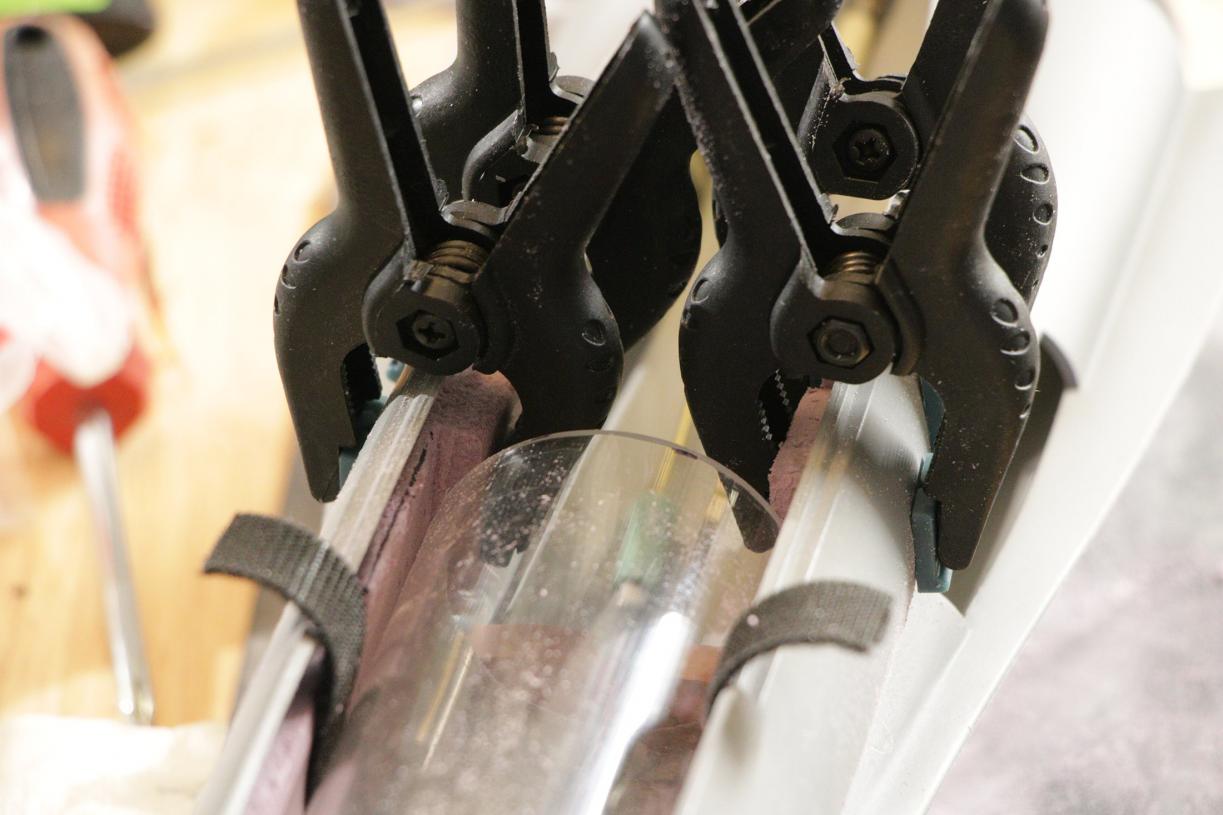

    Cleaned up the flash on the parts and sanded the base of these tube holders against a length of tube the same diameter of the Sub-Driver.
    Click image for larger version

Name:	Seaview _047.jpg
Views:	1
Size:	96.5 KB
ID:	133160 Click image for larger version

Name:	Seaview _048.jpg
Views:	1
Size:	94.6 KB
ID:	133161

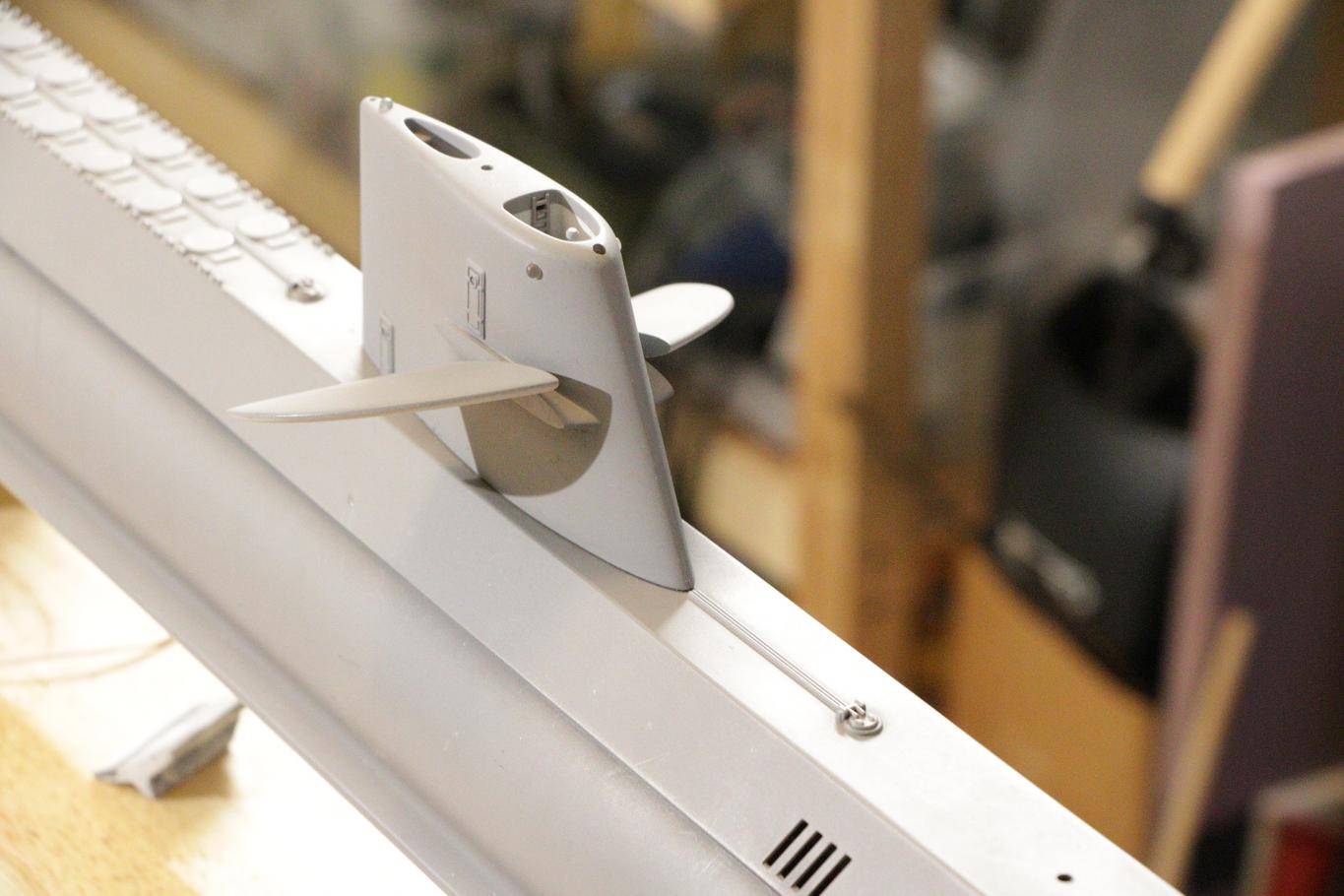

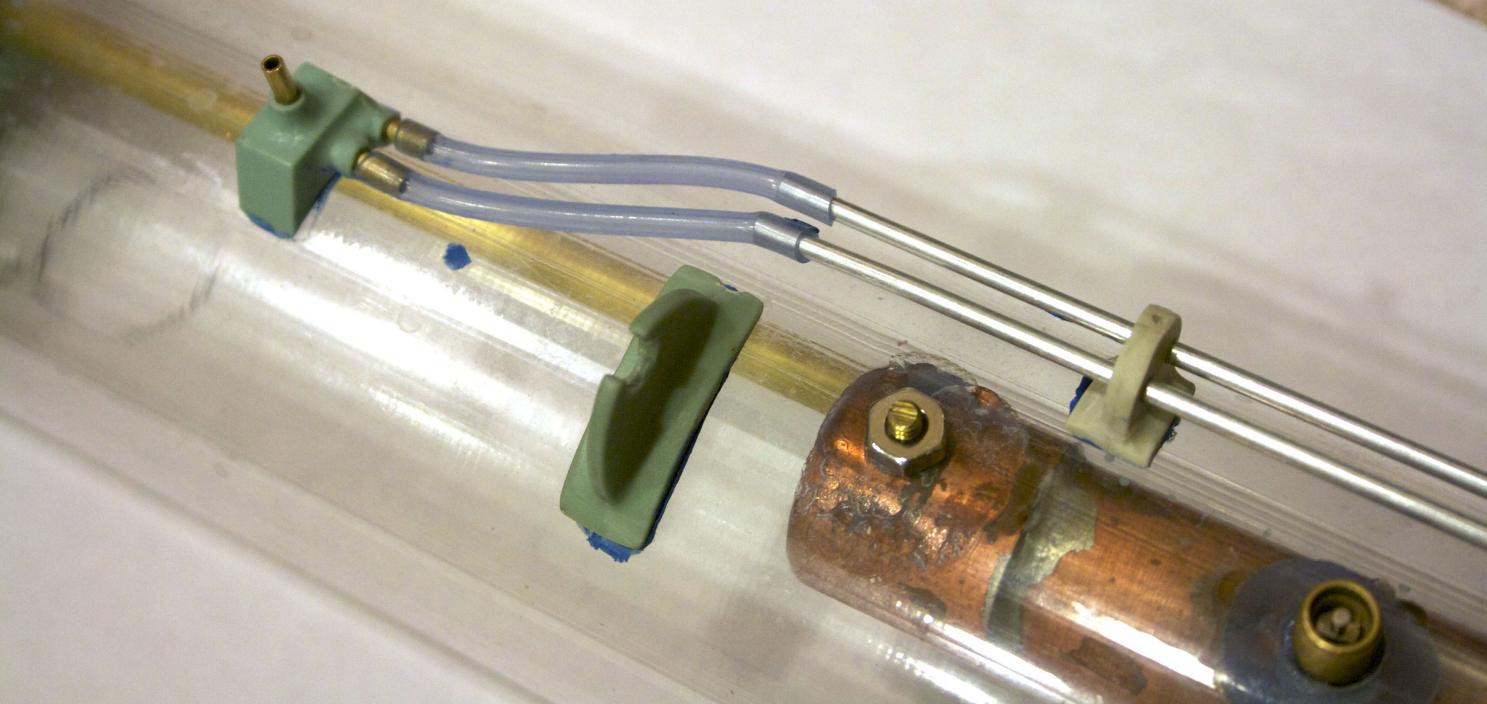

    For the meantime, I will not affix these to the WTC tube. I need to see if I like the fact the tubes cross over the vent.
    Click image for larger version

Name:	Seaview _049.jpg
Views:	1
Size:	93.3 KB
ID:	133162

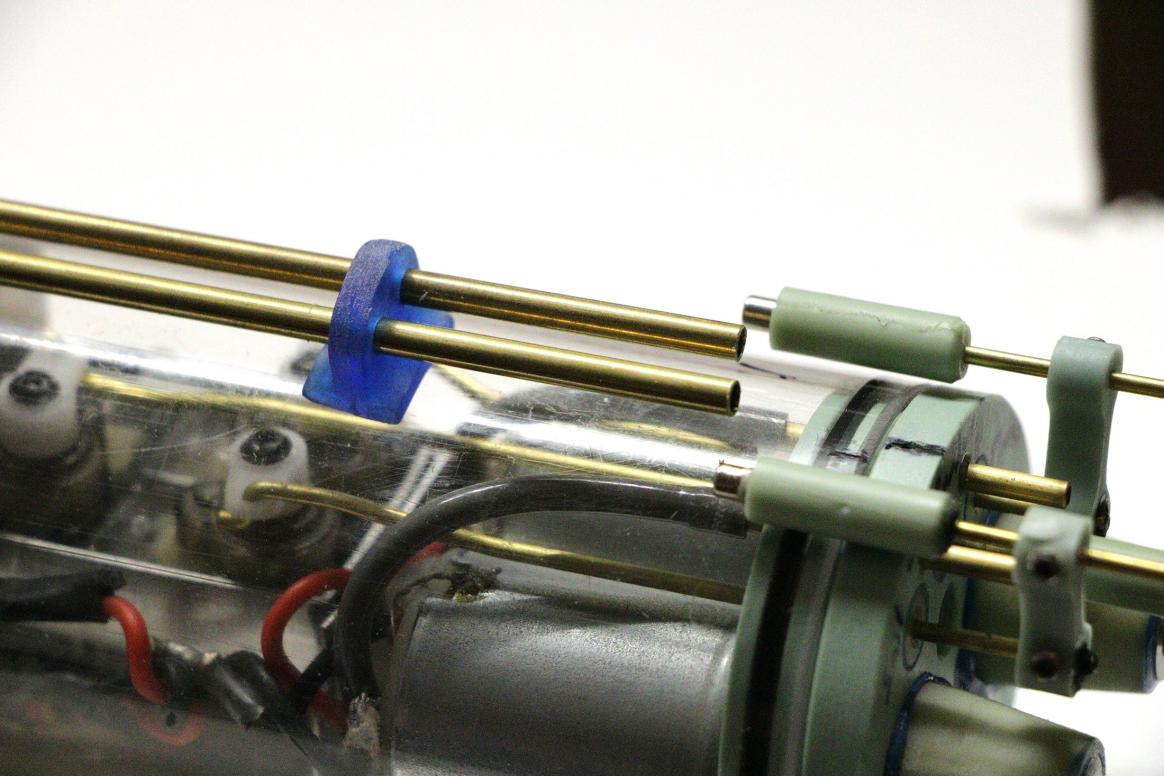

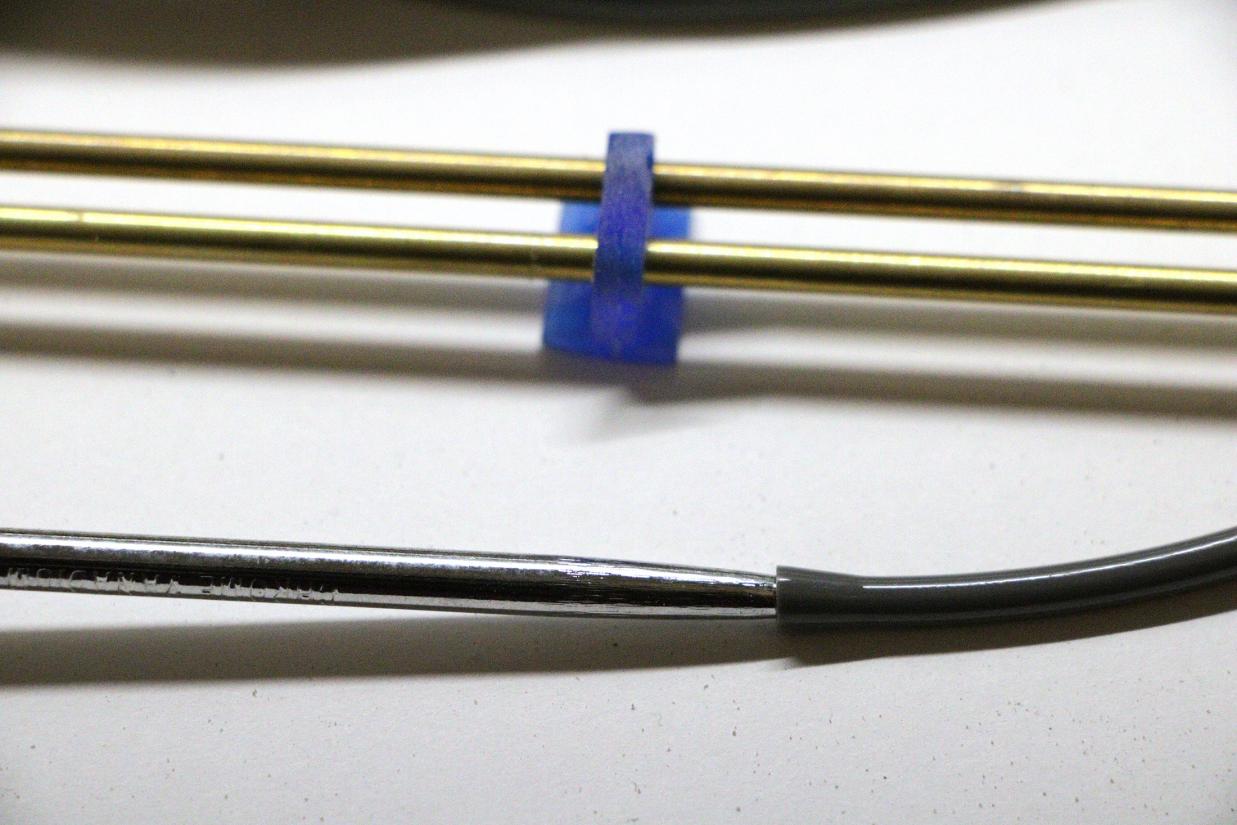

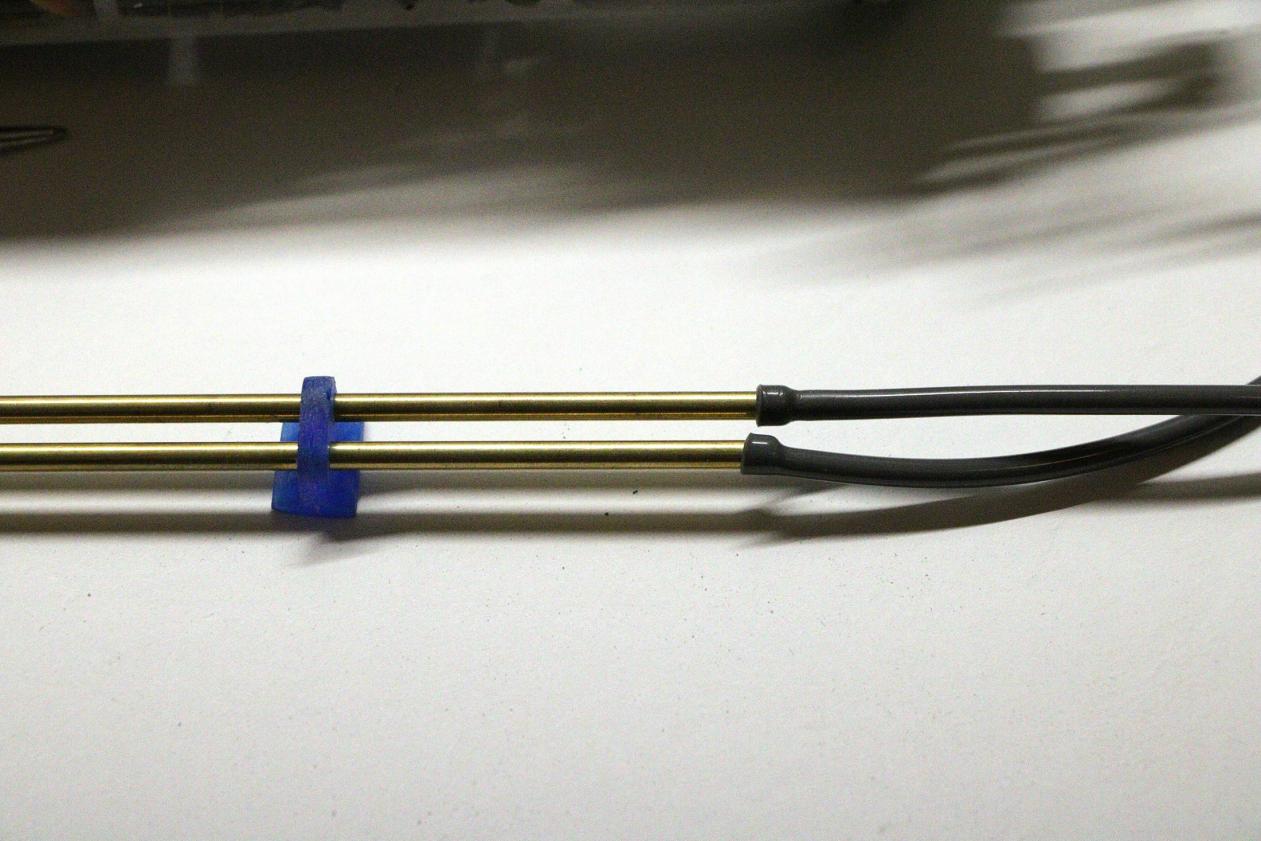

    Since these tubes are 1/8" and not the 3/32" it is a little tougher to get the hose connected. Tougher not impossible. I used a scratch awl to widen the end and a flame to warm up the hose. Then relatively quickly push the end over the tube.
    Click image for larger version

Name:	Seaview _051.jpg
Views:	1
Size:	99.2 KB
ID:	133163 Click image for larger version

Name:	Seaview _050.jpg
Views:	1
Size:	100.8 KB
ID:	133164

    It still is a challenge, but persistence paid off.
    Click image for larger version

Name:	Seaview _052.jpg
Views:	1
Size:	107.4 KB
ID:	133165

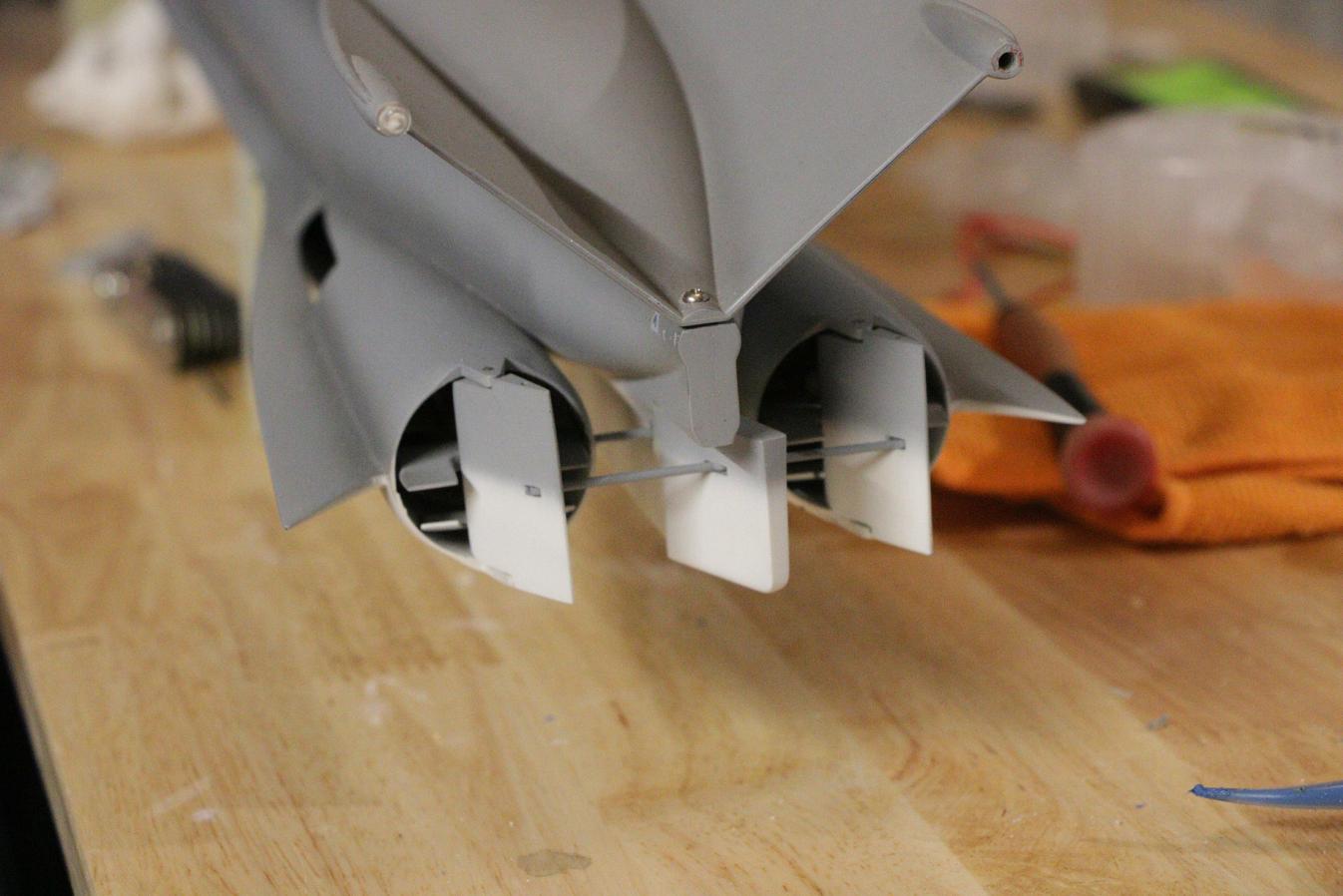

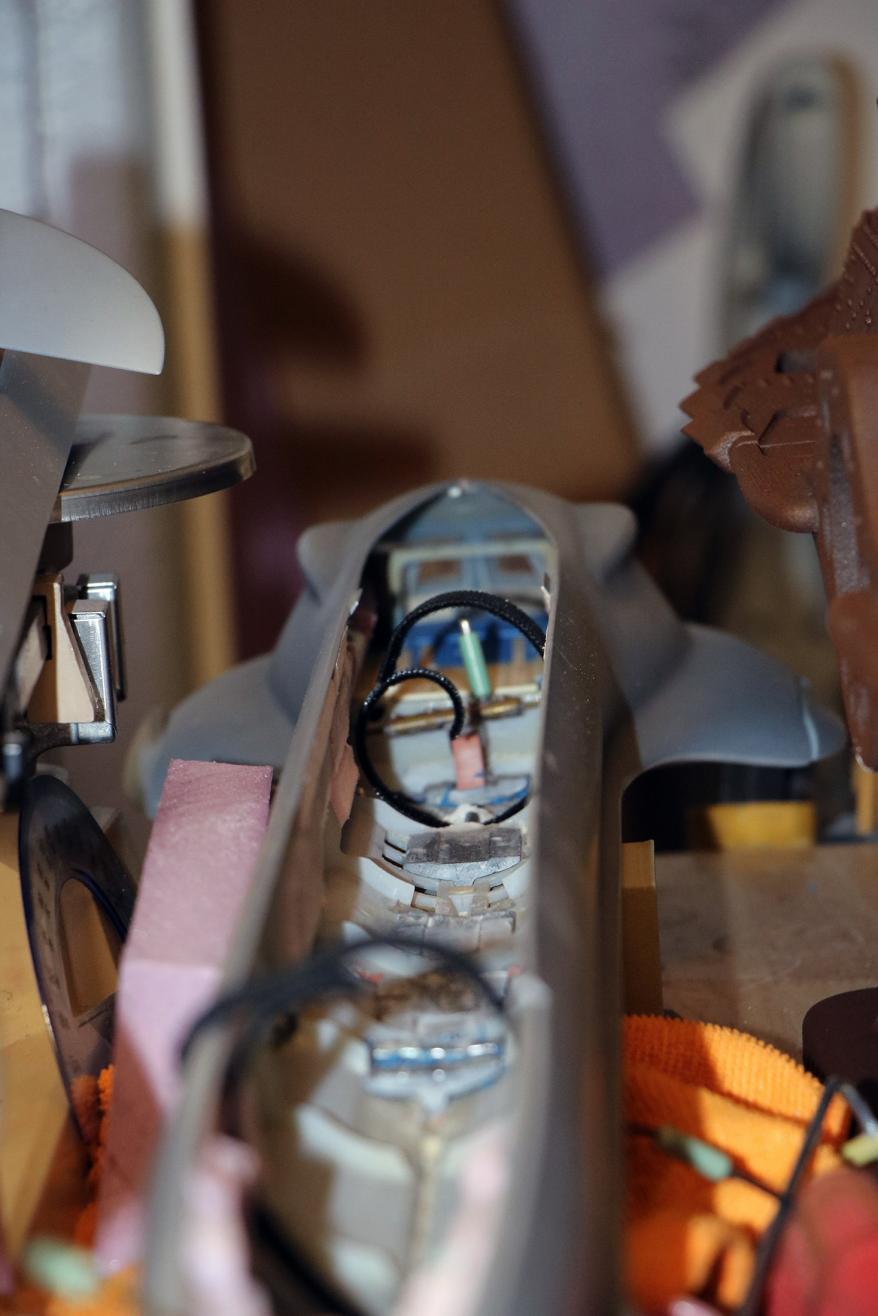

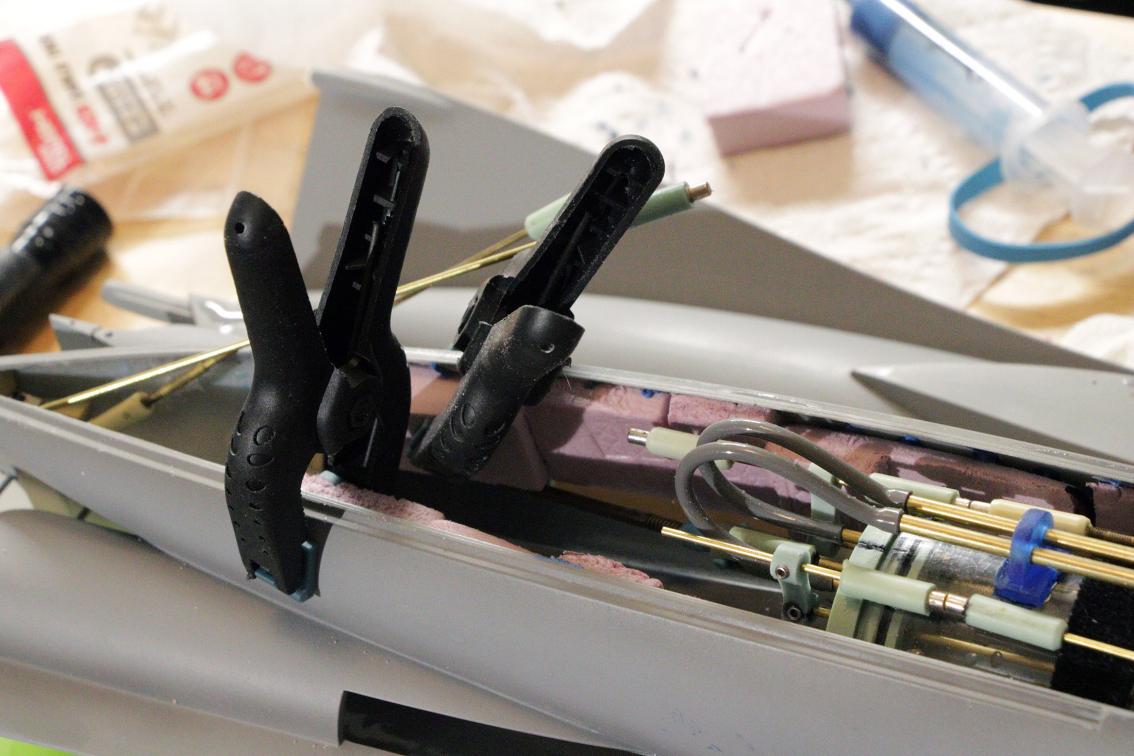

    Time to install the Sub-Driver into the sub and test servo movement and see how the push rods worked out.
    Click image for larger version

Name:	Seaview _053.jpg
Views:	1
Size:	96.1 KB
ID:	133166Click image for larger version

Name:	Seaview _054.jpg
Views:	1
Size:	95.7 KB
ID:	133167
    Click image for larger version

Name:	Seaview _055.jpg
Views:	1
Size:	94.8 KB
ID:	133168

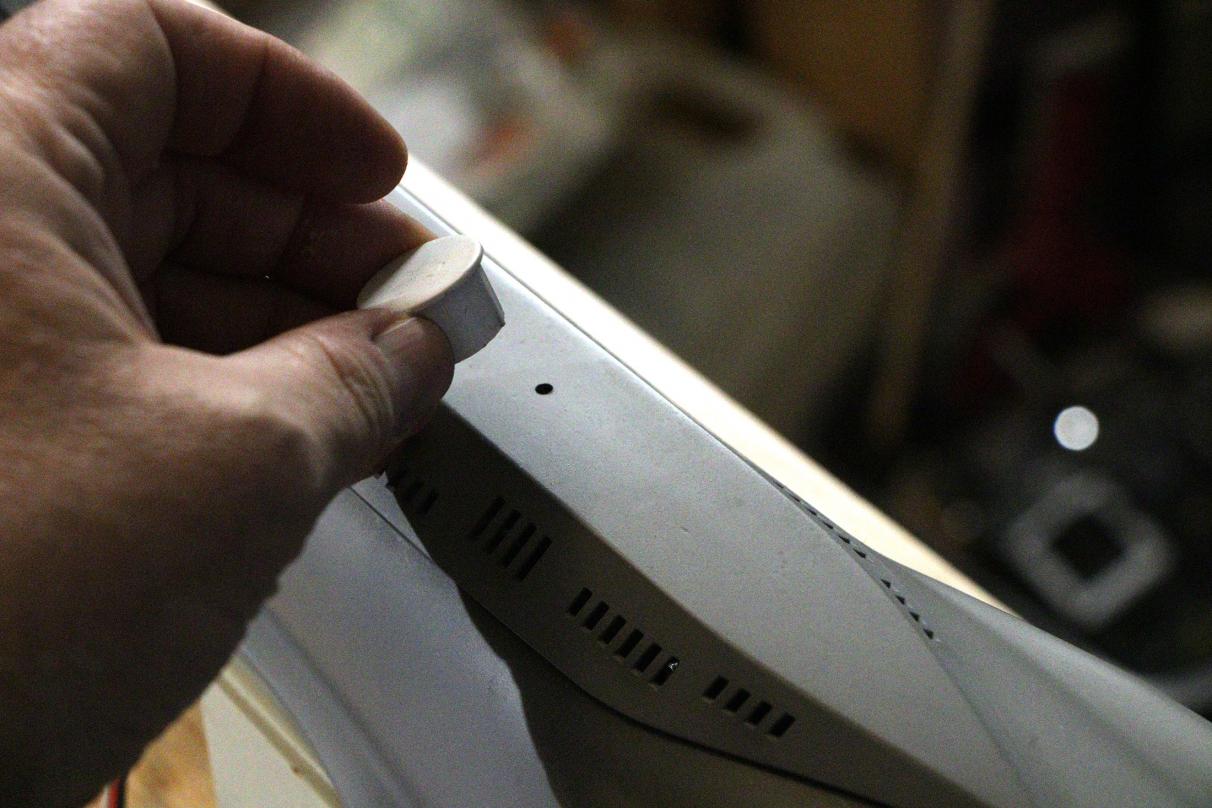

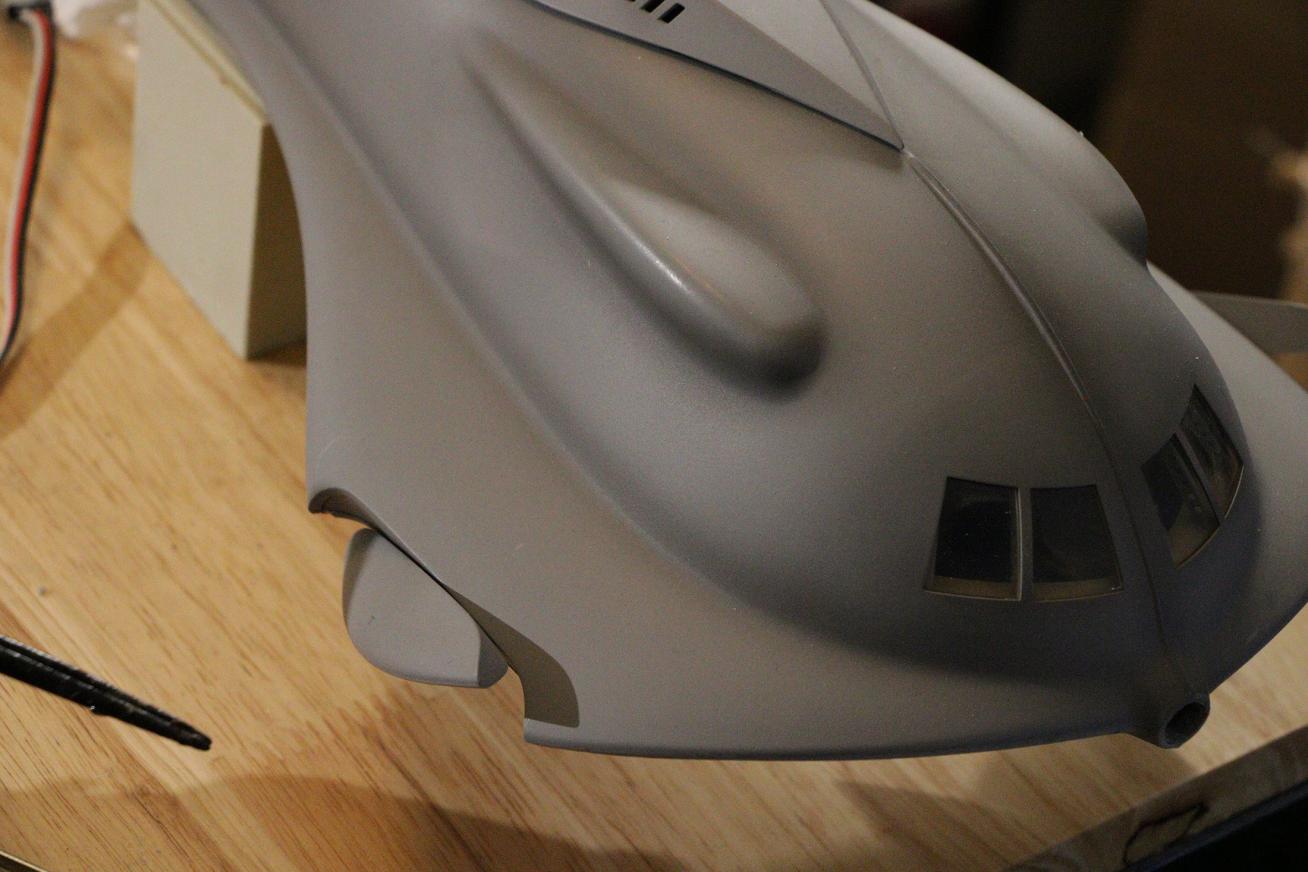

    The magnet is placed against the deck towards the bow. A vent hole happens to be a perfect locator for where the switch is underneath.
    Click image for larger version

Name:	Seaview _056.jpg
Views:	1
Size:	106.7 KB
ID:	133169
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

    Comment

    • salmon
      Treasurer
      • Jul 2011
      • 2327

      #32

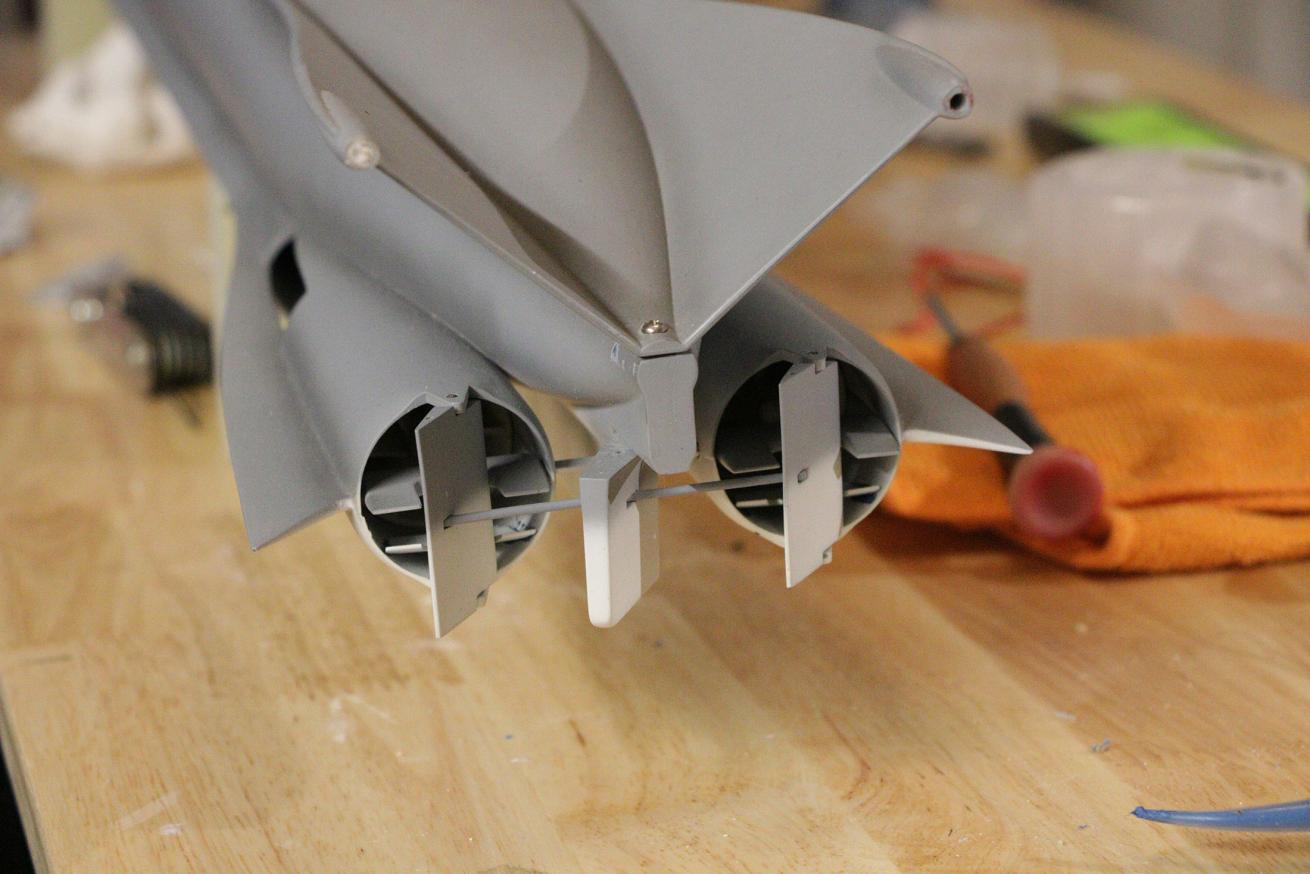

      Testing the rudder:
      Click image for larger version

Name:	Seaview _057.jpg
Views:	1
Size:	102.5 KB
ID:	133170Click image for larger version

Name:	Seaview _058.jpg
Views:	1
Size:	97.2 KB
ID:	133171

      YES! It worked.

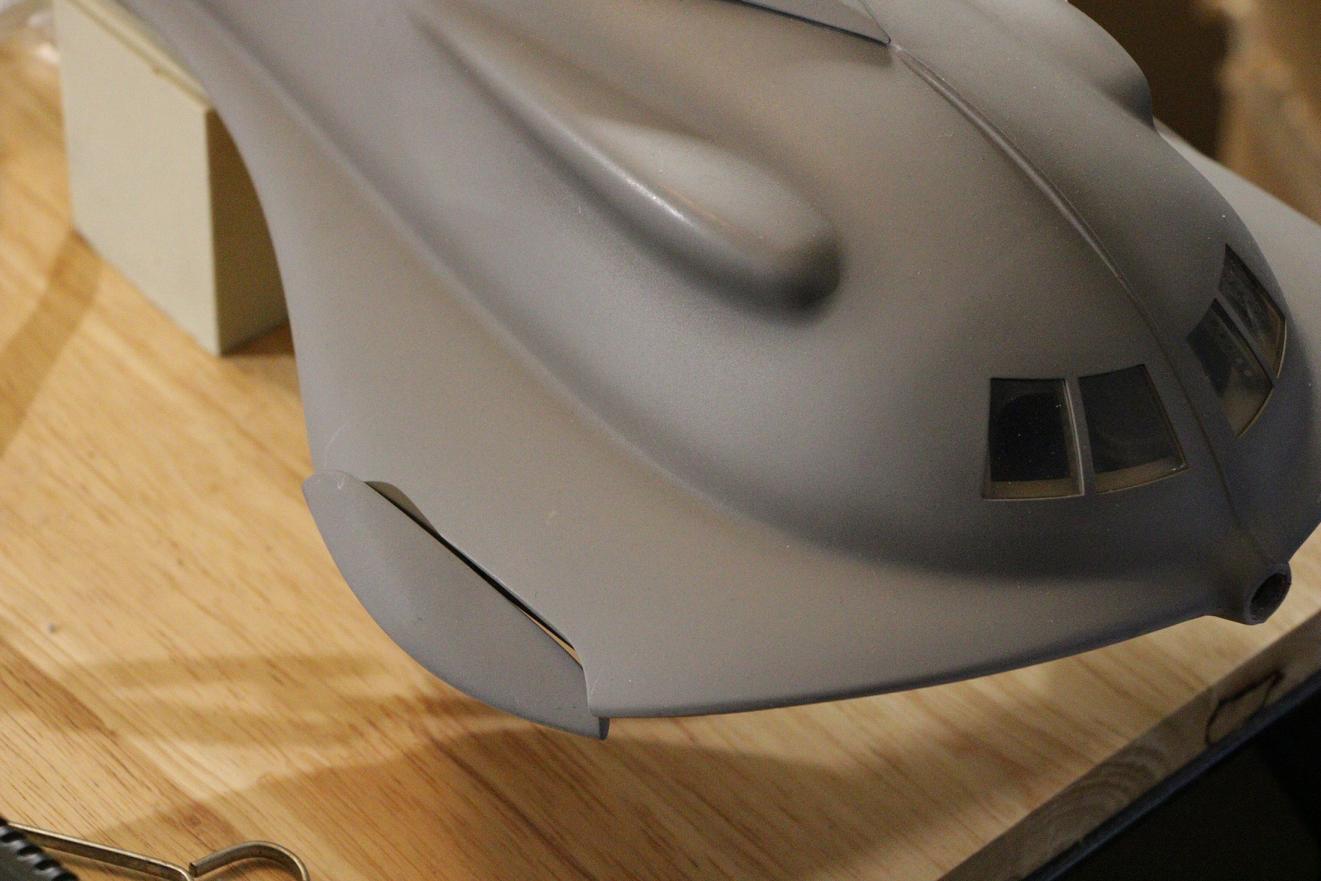

      Bow planes:
      Click image for larger version

Name:	Seaview _059.jpg
Views:	1
Size:	103.6 KB
ID:	133172Click image for larger version

Name:	Seaview _060.jpg
Views:	1
Size:	104.0 KB
ID:	133173

      I think that works.

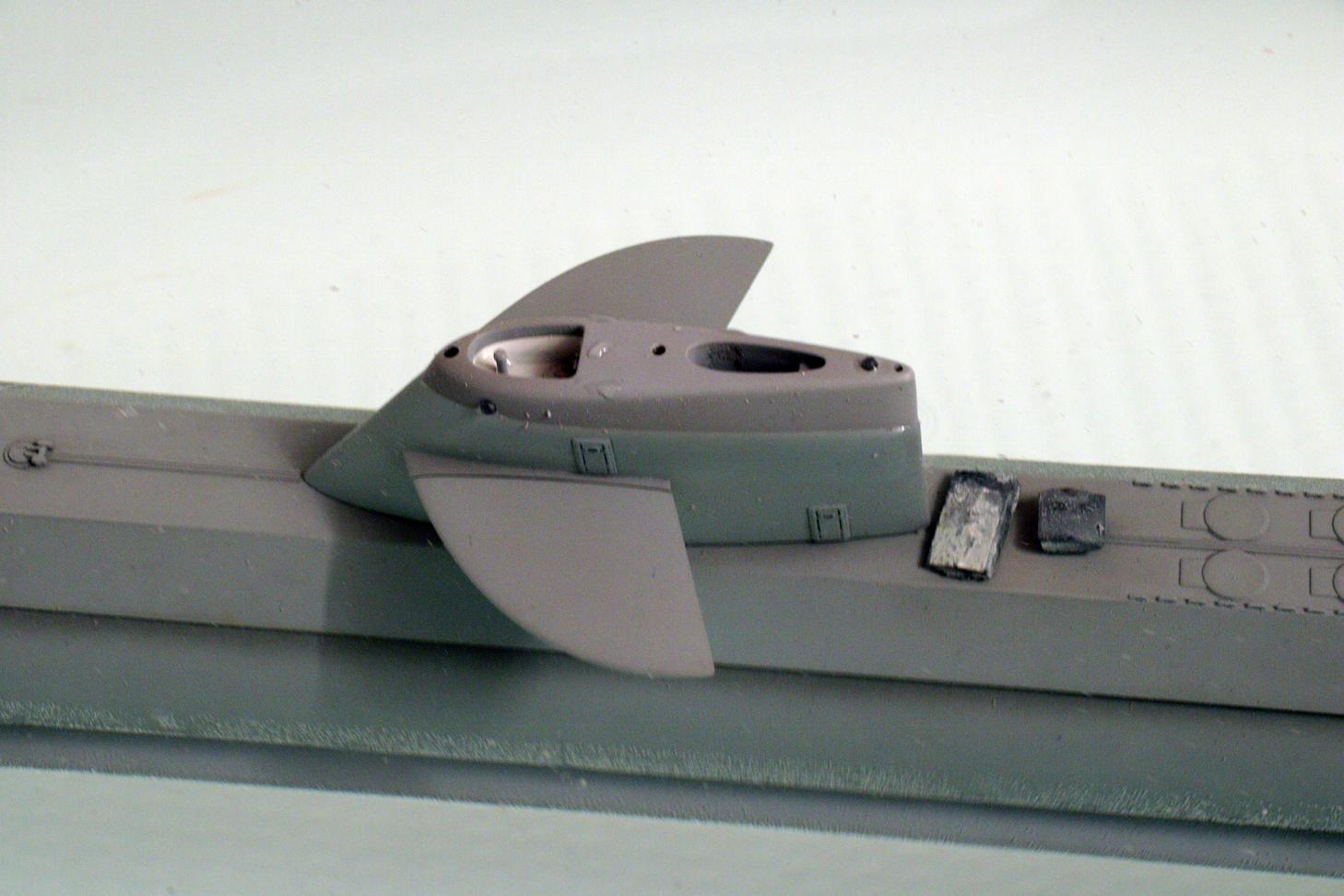

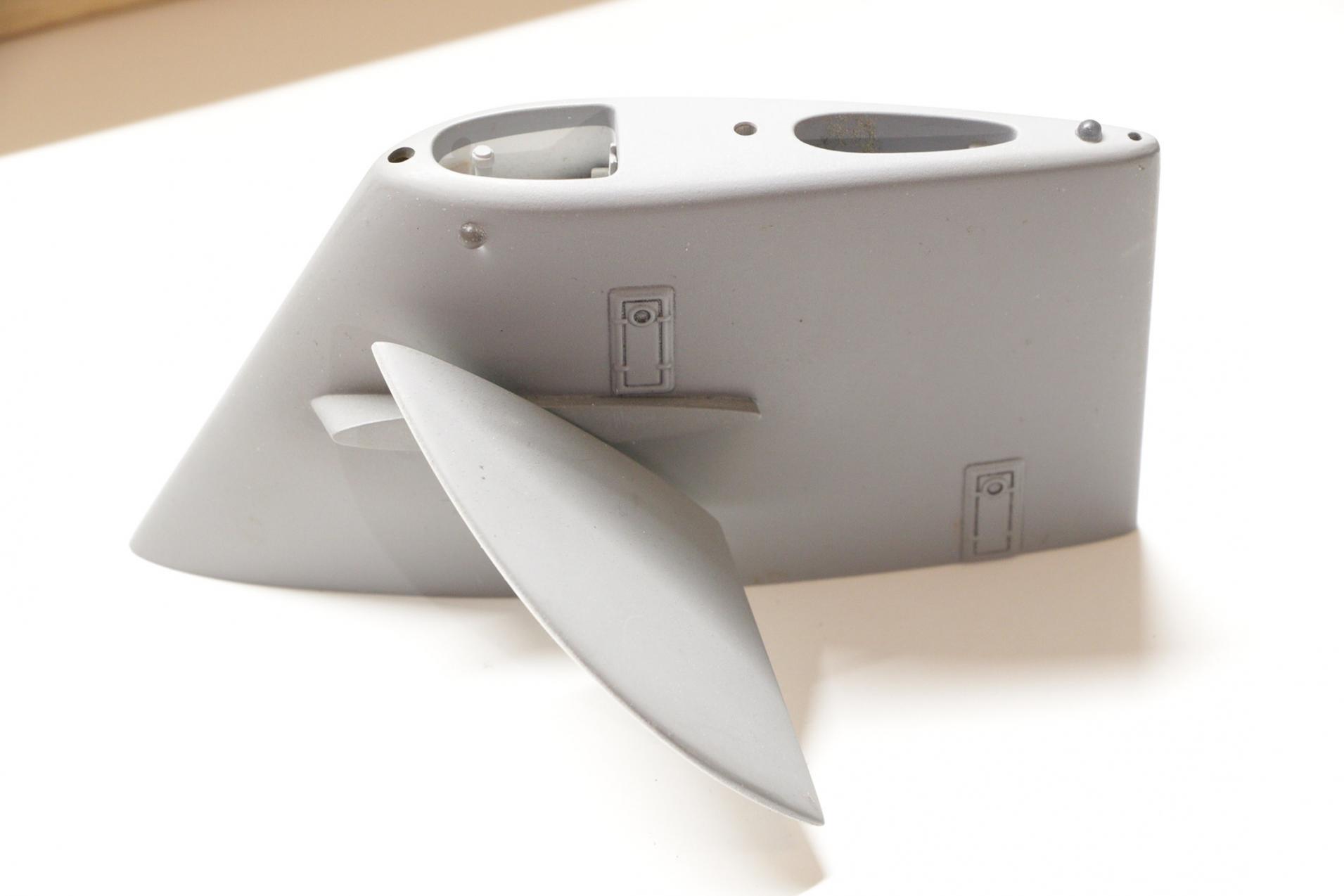

      Now the Sail planes.
      Click image for larger version

Name:	Seaview _061.jpg
Views:	1
Size:	97.5 KB
ID:	133174Click image for larger version

Name:	Seaview _062.jpg
Views:	1
Size:	99.0 KB
ID:	133175

      Two out of three is not bad. This will be a reasonably easy fix.
      If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

      Comment

      • bob_eissler
        SubCommittee Member
        • Aug 2005
        • 331

        #33
        Nice Job! My bow planes have never worked very well, way too flexy. Most people didn't try to make them work.

        Comment

        • salmon
          Treasurer
          • Jul 2011
          • 2327

          #34
          Bob,
          There is a little slop in the movement that I need to look at. It seems the travel distance is good, but I can wiggle the planes. It will be nteresting to see what happens in the water.
          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

          Comment

          • salmon
            Treasurer
            • Jul 2011
            • 2327

            #35
            Played more with the sail dive planes and I found the issue with travel. It was interference from the air hoses. When they get permanently mounted and extra trimmed off, there may still be a little more reshaping of the push rod to not bind as it moves forward and backwards. What little I did gave me full throw both ways!

            I guess-timated the amount of weight the sub would need and placed it where I thought it would be needed (right below ballast tank) and some towards the bow. Made sure the Sub-Driver was sealed and ready to be tested.

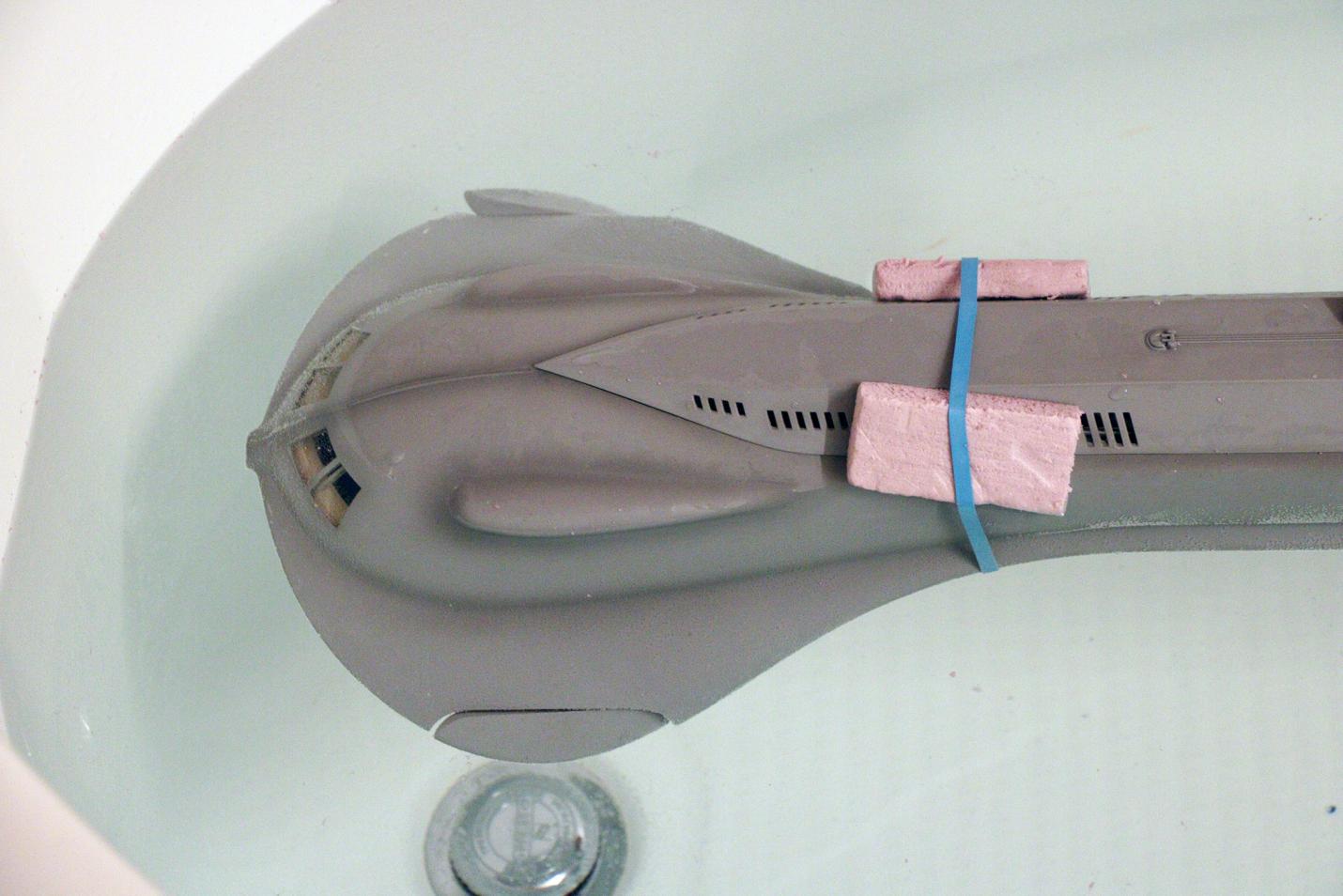

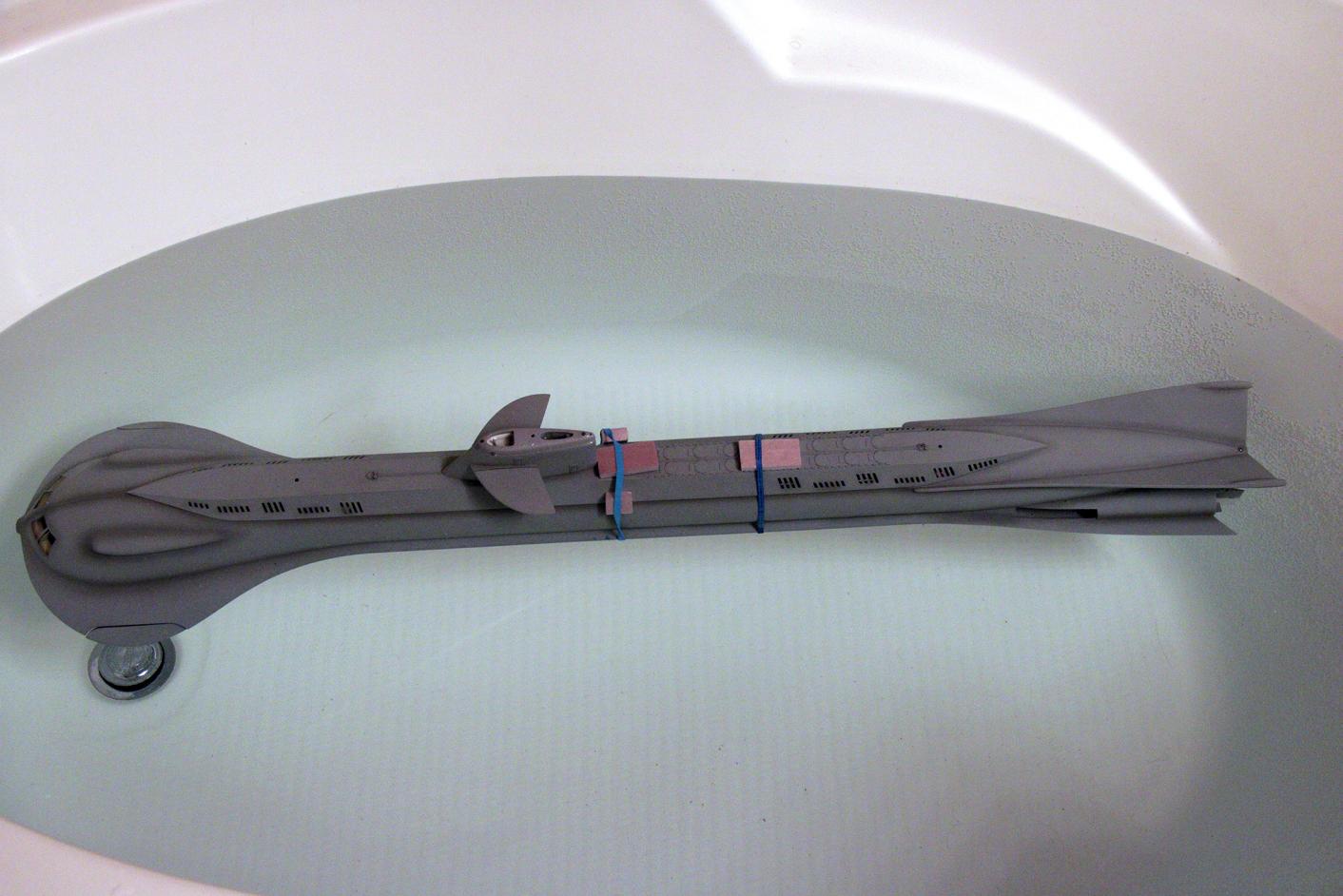

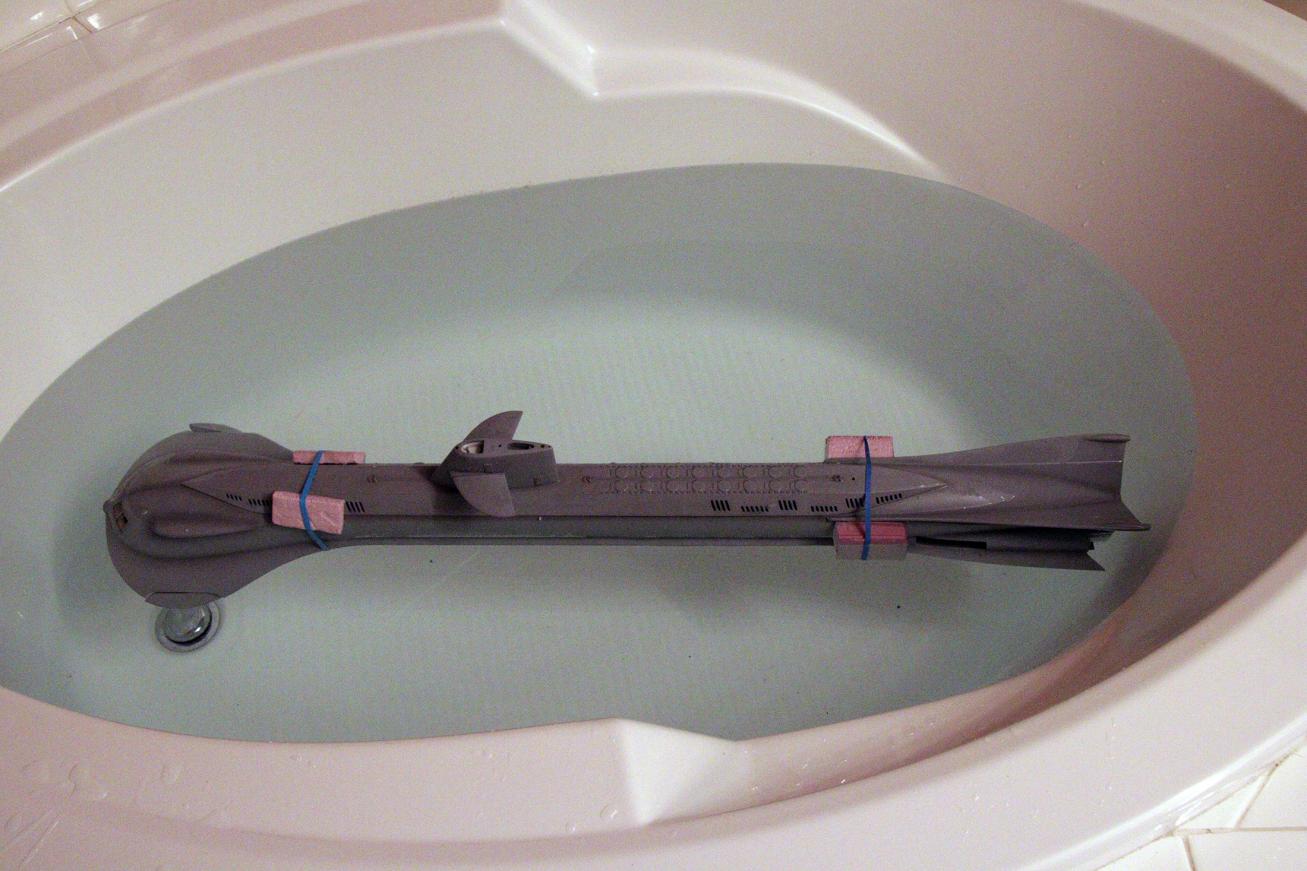

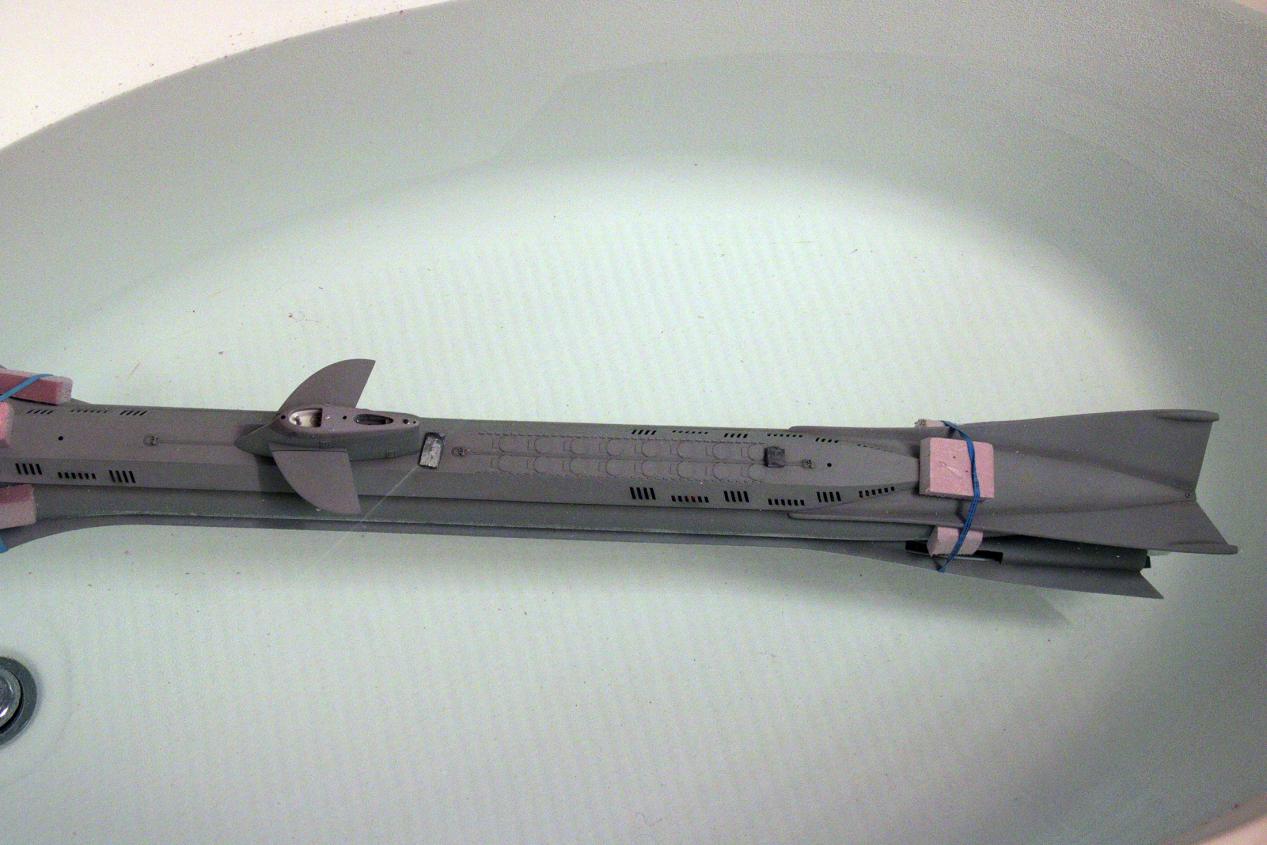

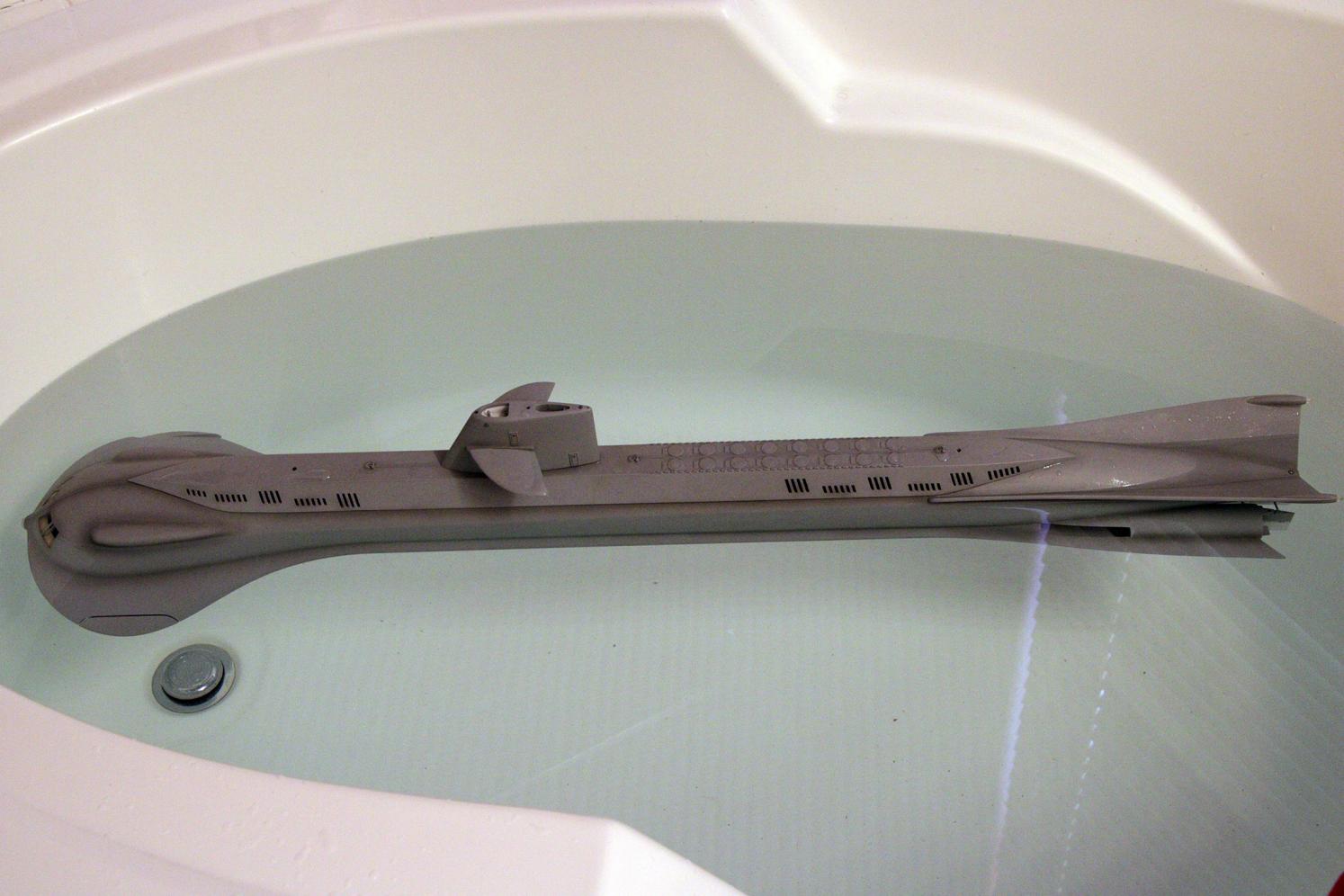

            Placed the sub in the water and the aft immediately sank. Lifting to see how much it resisted I could tell I need some bigger chunks of foam. I trim my subs in the submerged state first and then surface trim. Flooded the ballast tank by tipping the sub over to make sure all the air was out. The sub settled to the bottom of the tub. Definitely do not need more weight. So I added a chunk of foam on each side of the Cadillac wings aft. That brought the aft up, but the bow was still heavy. So, I placed one block a lot smaller in size (lifting the bow, it moved relatively easy) under the bow of the sub. The large foam blocks in the back were trimmed down in size until the boat leveled out and the front block I cut in half so a piece can be on either side.
            Click image for larger version

Name:	Seaview _063.jpg
Views:	1
Size:	113.3 KB
ID:	133178

            Some fine tuning was done to the front and back foam until it settled lower in the water to this point.

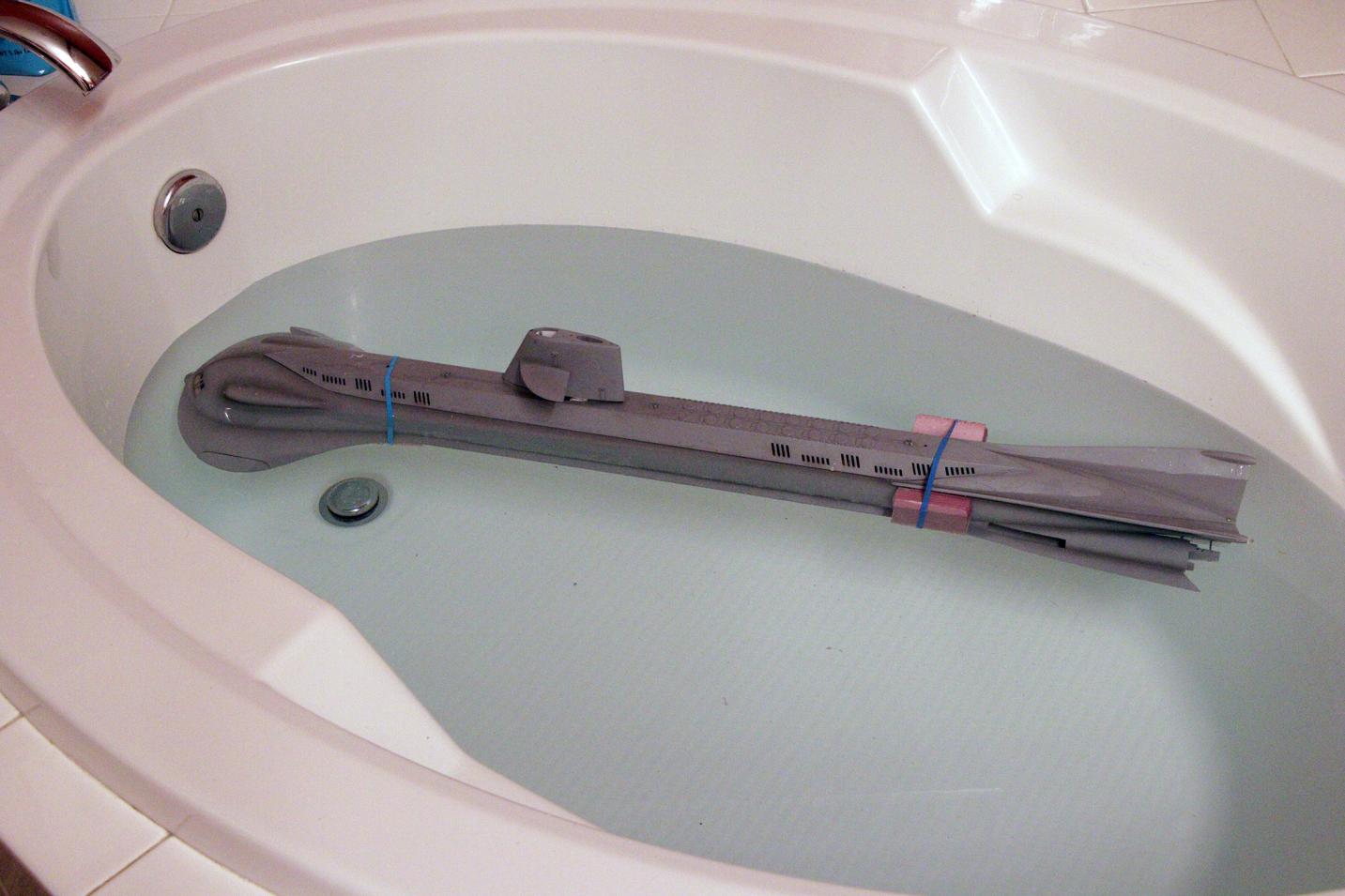

            Click image for larger version

Name:	Seaview _064.jpg
Views:	1
Size:	112.1 KB
ID:	133179

            That looked great to me.

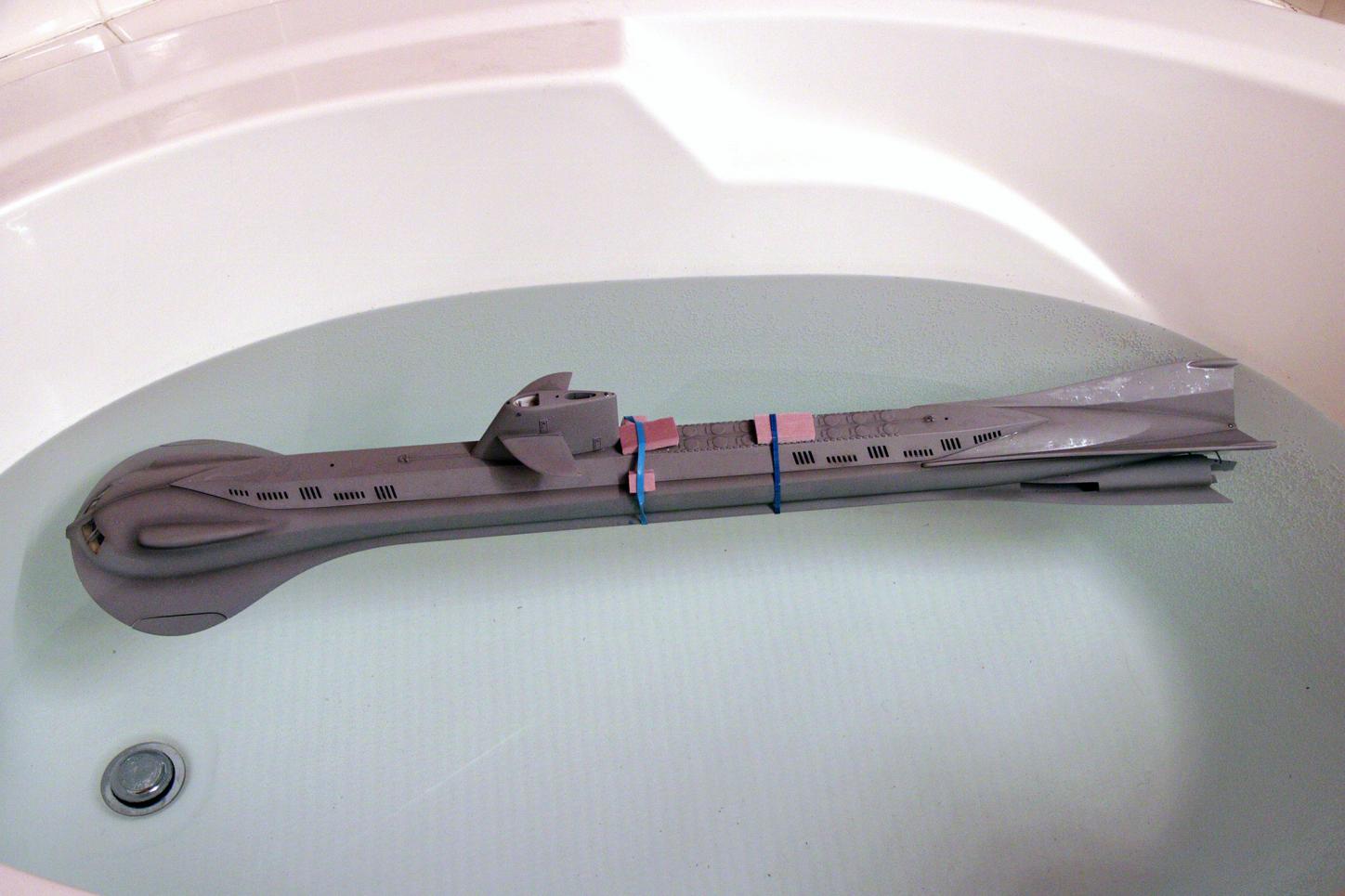

            Now emptied the ballast tank to see where the boat sat.
            Click image for larger version

Name:	Seaview _065.jpg
Views:	1
Size:	115.3 KB
ID:	133180

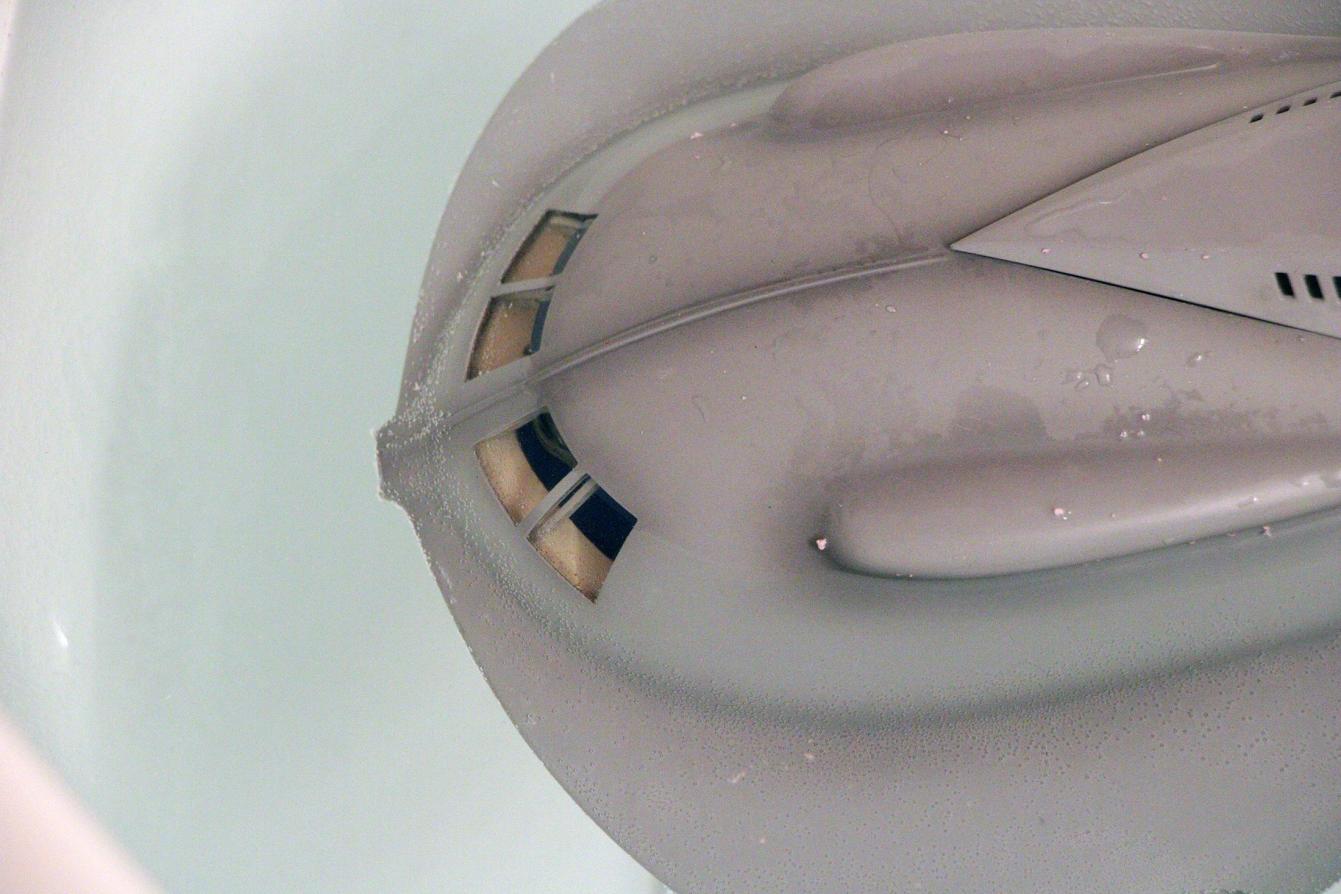

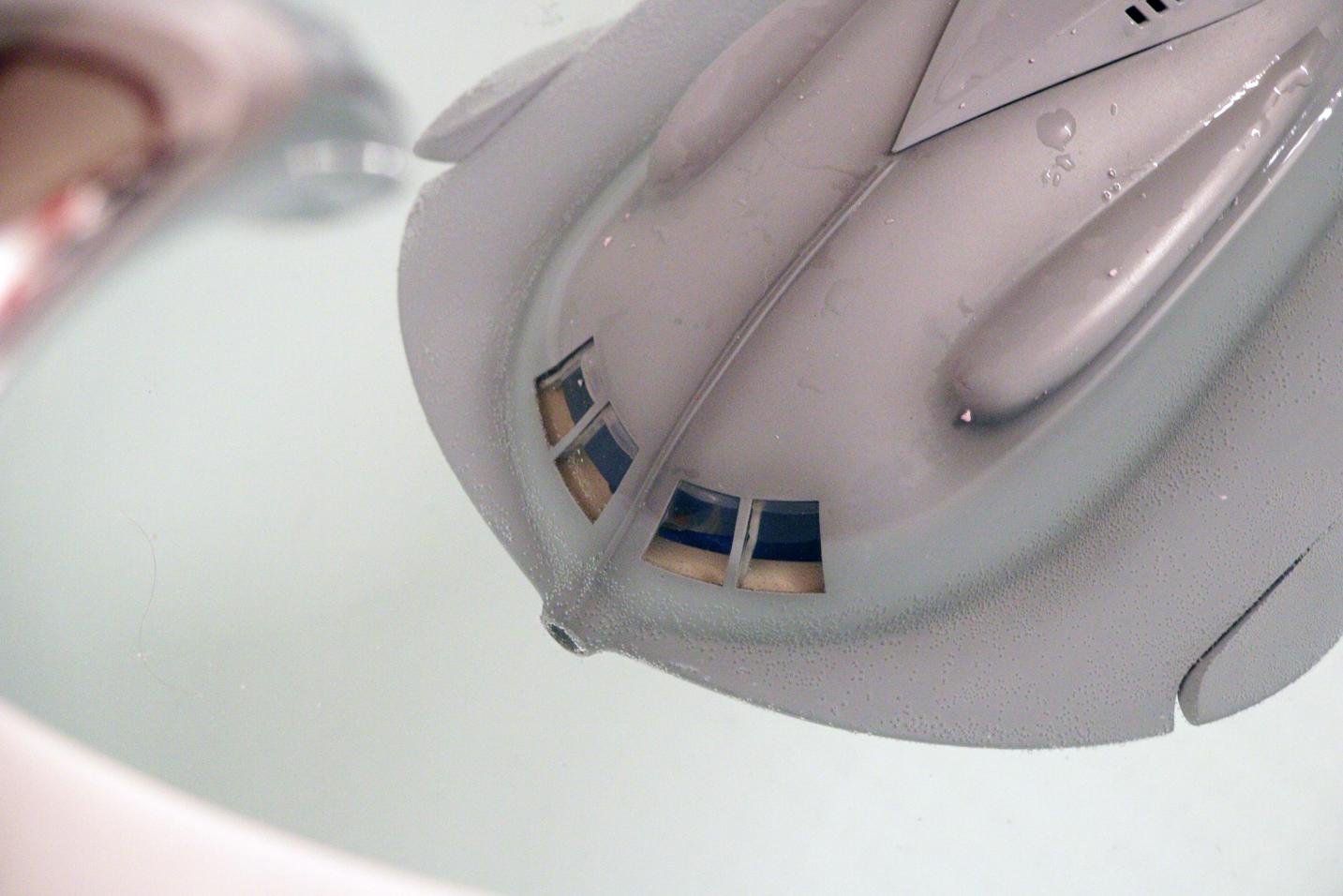

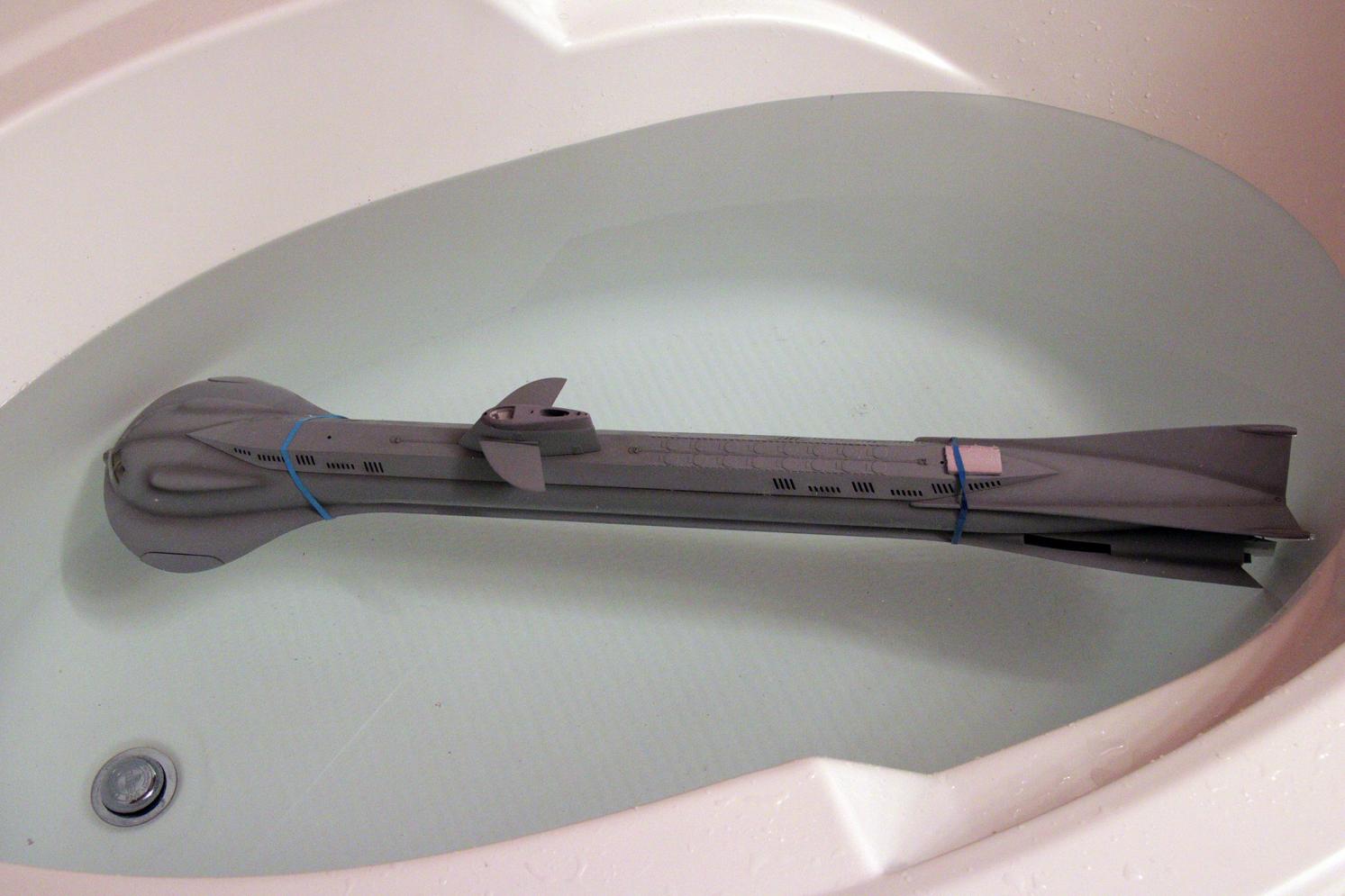

            I was surprised how much it raised up to. Again, it looked good, but I was not sure if the bow was to be higher out of the water. As it is, the waterline went to the top of the windows.
            Click image for larger version

Name:	Seaview _069.jpg
Views:	1
Size:	112.7 KB
ID:	133181Click image for larger version

Name:	Seaview _068.jpg
Views:	1
Size:	114.9 KB
ID:	133182

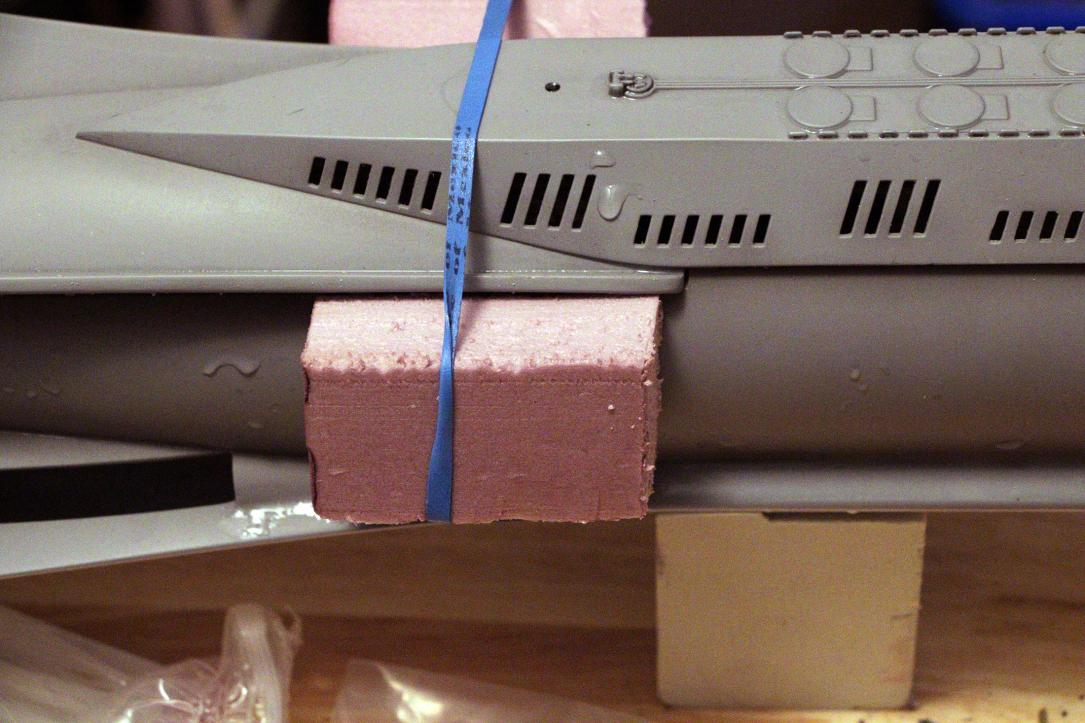

            Moving the foam to below the waterline it lifted the front to where the water was about the middle of the front windows.
            Click image for larger version

Name:	Seaview _070.jpg
Views:	1
Size:	113.4 KB
ID:	133183Click image for larger version

Name:	Seaview _071.jpg
Views:	1
Size:	105.9 KB
ID:	133184


            Time to take out the sub and record the locations of here the foam is.
            Click image for larger version

Name:	Seaview _072.jpg
Views:	1
Size:	100.7 KB
ID:	133185Click image for larger version

Name:	Seaview _073.jpg
Views:	1
Size:	105.4 KB
ID:	133186

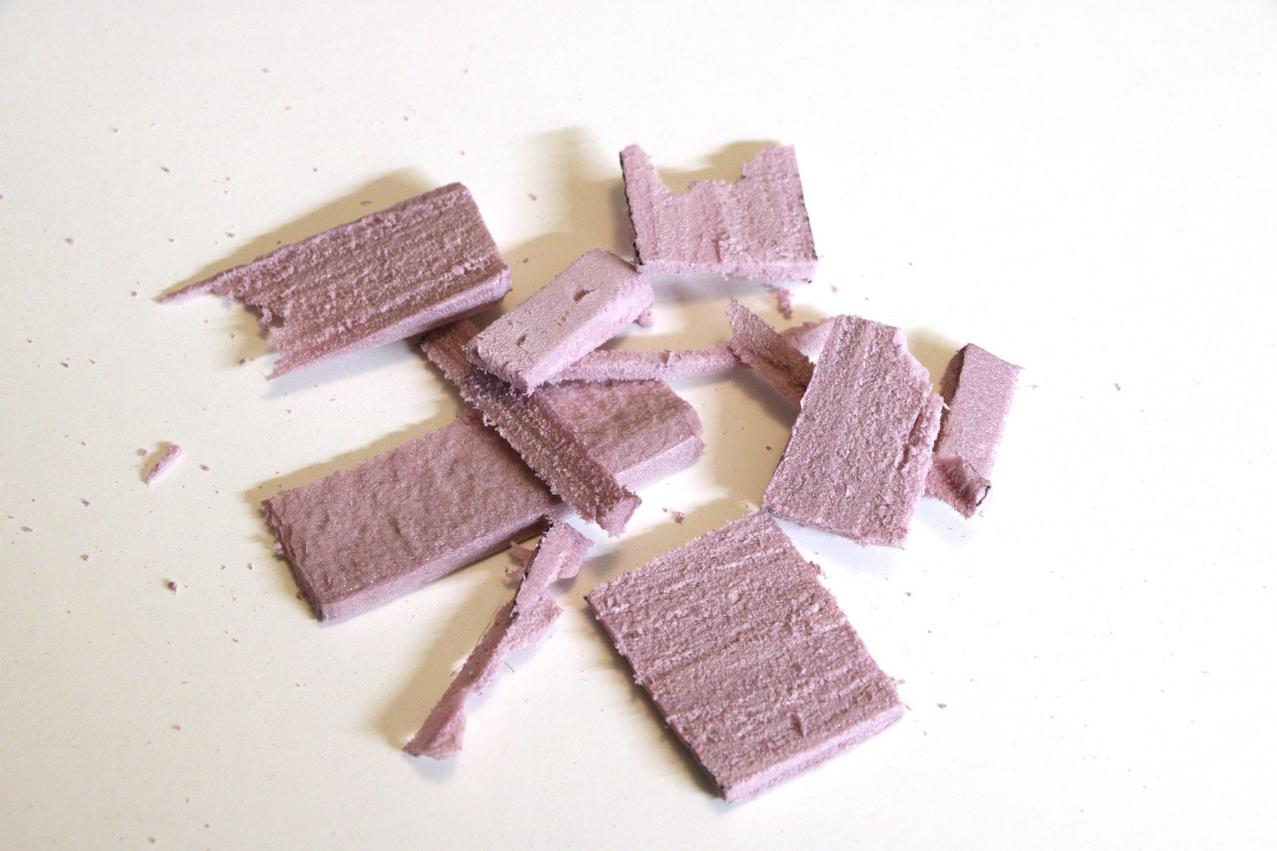

            We will have to trim again because those large blocks in the aft end, will not just fit into the inside. I will need to shape and install the foam trying to distribute the foam's mass to give the same lift as it does as one chunk. I will try to explain that when I install the foam and document it (please let me know if I am making it clear as mud or not).
            Looking at the foam in the front, I might be able to remove another weight out of the sub and forgo most of this foam. I will test that in the next couple of days.
            So here is the weight from the original install that I did not put back in.
            Click image for larger version

Name:	Seaview _074.jpg
Views:	1
Size:	94.9 KB
ID:	133187

            Until next time.....
            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

            Comment

            • salmon
              Treasurer
              • Jul 2011
              • 2327

              #36
              There are a couple of ares that came up from the water test.
              1. When venting the ballast tank, it seemed to go very slow.
              2. I wired my motors wrong.

              The vent was a very simple fix. There are 2 wheel collars on the vent servo pushrod. I moved the collars further away from the servo about 1/8". Tested it in the tub and the tank emptied in seconds. However, when the vent was closed it leaked (like a bubble every second or two). To correct this I moved the collars back towards the ballast tank servo a smidgeon. That was just enough to stop the trickle of bubbles.

              Tonight or tomorrow, I will get the motors rewired. Also begin the re-testing of trim with another chunk of lead removed.
              Last edited by salmon; 03-31-2019, 01:55 AM.
              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

              Comment

              • salmon
                Treasurer
                • Jul 2011
                • 2327

                #37

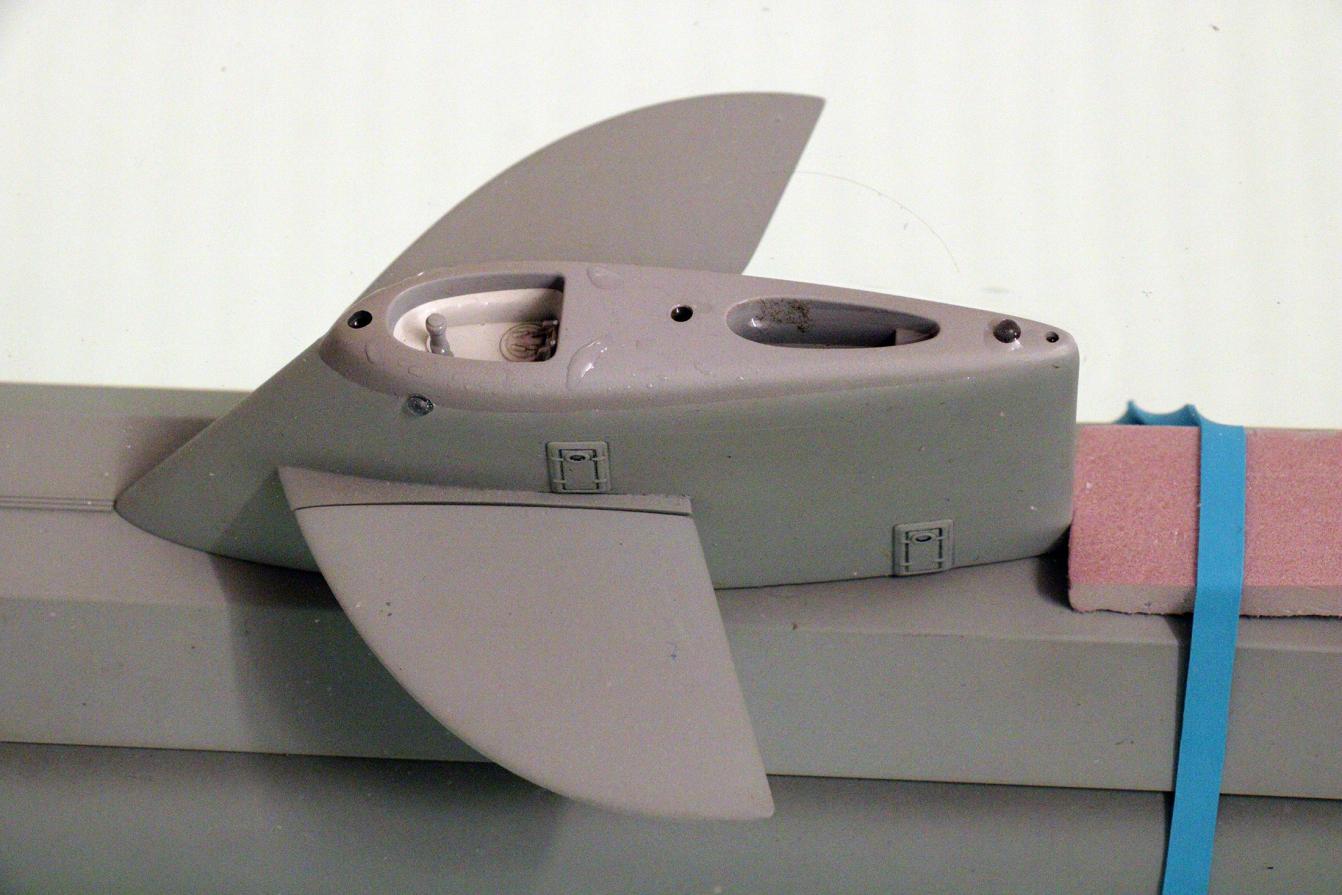

                I did not get to trimming. There were other areas nagging me. I wired the motors like my Gato one turned one direction and the other opposite direction. However, When I tested the forward and reverse thrust, one side pushed and the other, well didn't. Turns out, the props are both right hand turning props (verifies with Mr. Merriman). The motors got rewired.

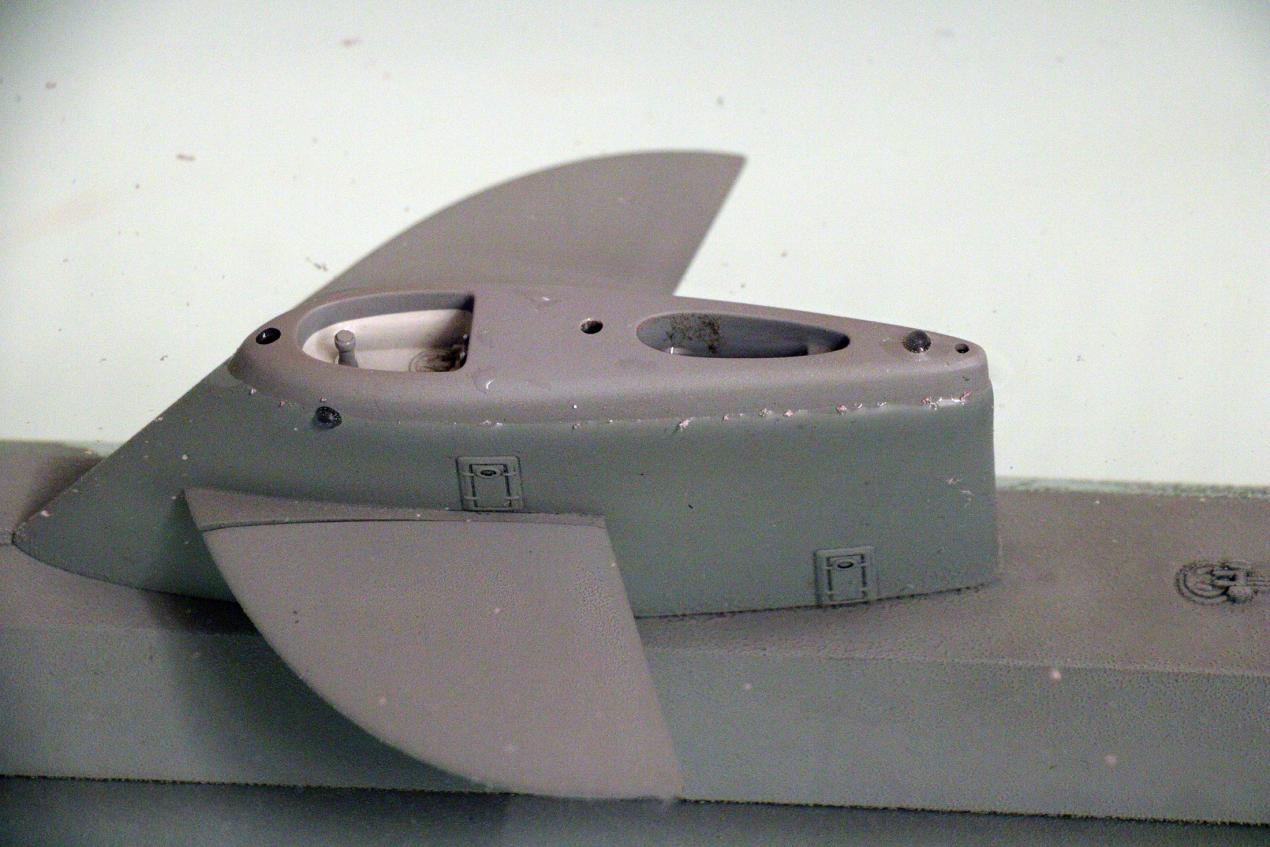

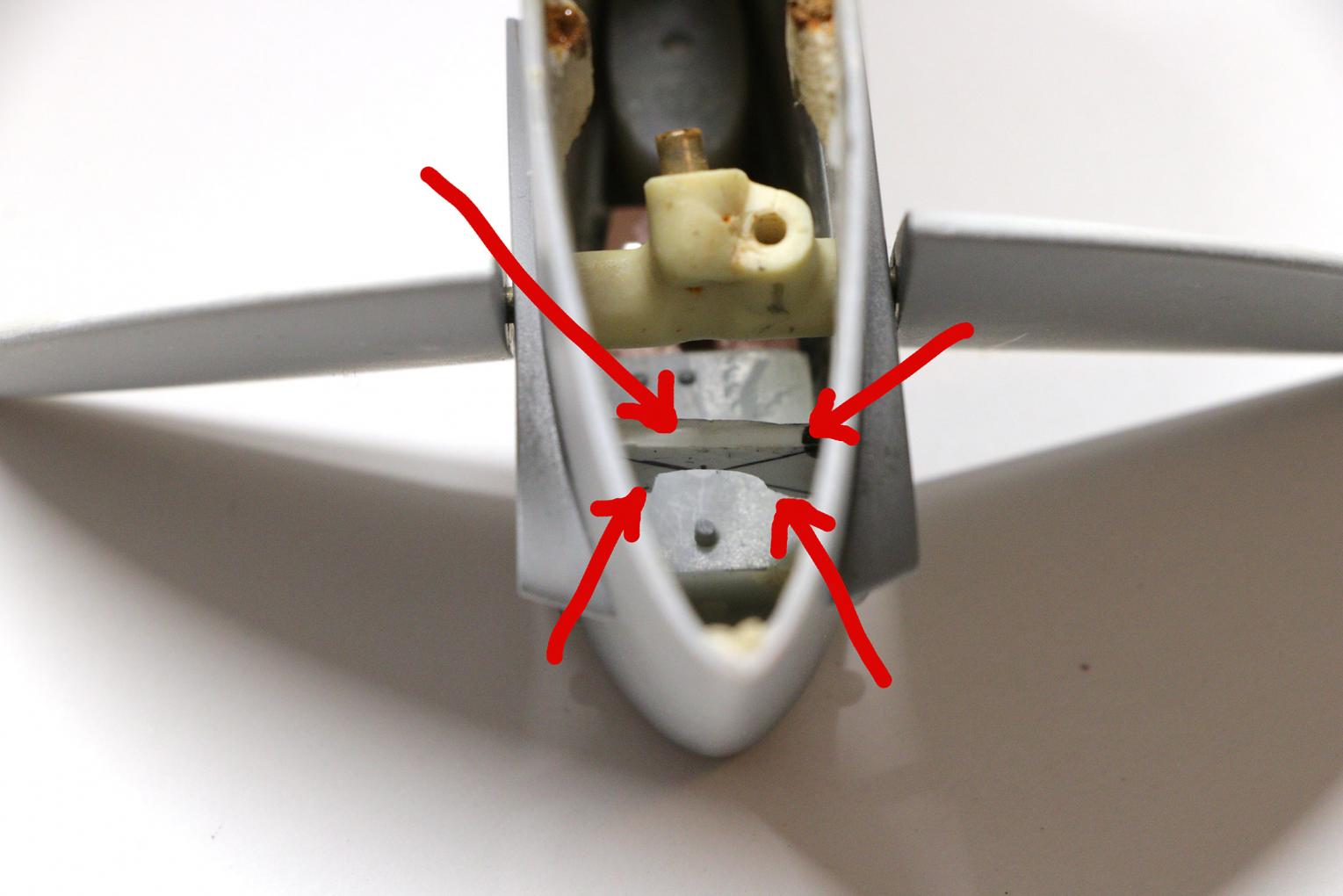

                The sail plane is a odd heavy plane. It flops around and it just annoyed me. I also wondered if it got bumped while running it would flop in such a way that it would get lost from the magnetic connector. To stop the flop, I put a piece of plastic in to prevent the rotation.
                Click image for larger version

Name:	Seaview _079.jpg
Views:	1
Size:	90.1 KB
ID:	133202

                That seemed to work.
                Click image for larger version

Name:	Seaview _080.jpg
Views:	1
Size:	83.4 KB
ID:	133203Click image for larger version

Name:	Seaview _081.jpg
Views:	1
Size:	85.4 KB
ID:	133204

                Another concern was something mentioned by Bob Eissler about volume of air being taken up by the batteries. I moved the SAS air intake valve up higher. Hopefully it will break the surface and open up before exhausting the available air in the cylinder. Just an extra margin of safety (or that is what I keep telling myself). If it works, it was a good idea. If not, well it will go down as another dumb idea.

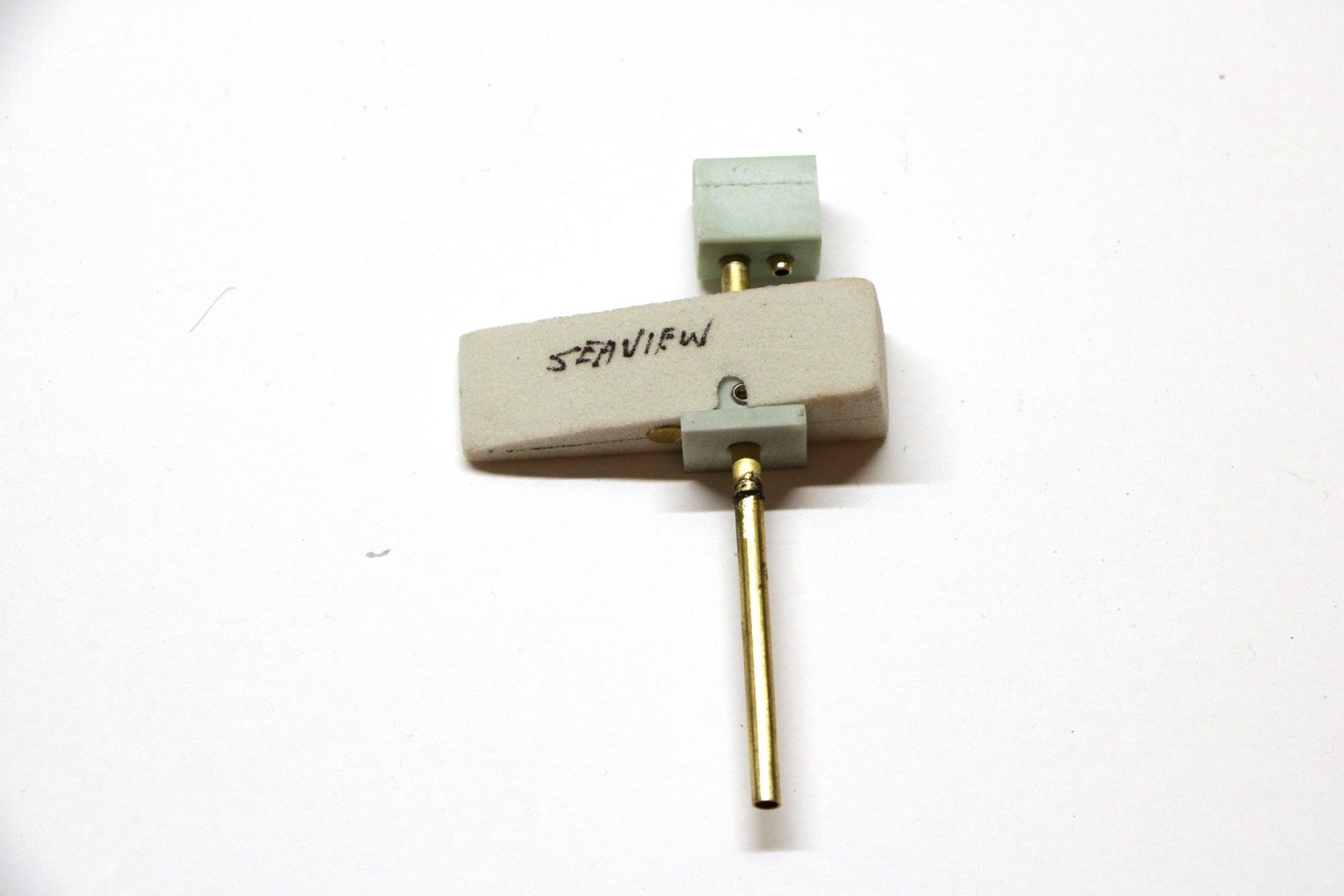

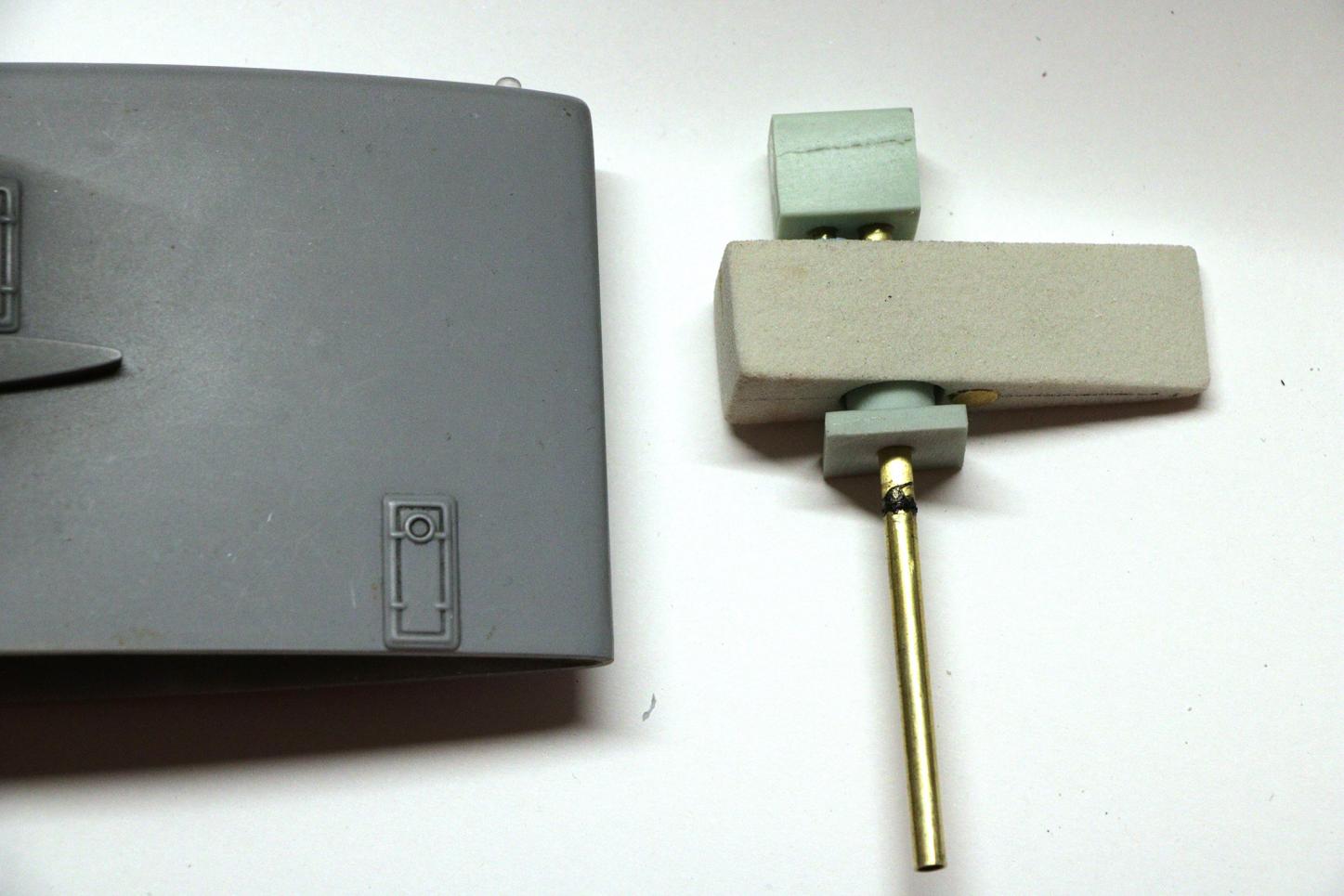

                So, to accomplish this idea, I put a smaller rod into the existing intake air tube and that smaller tube joined another tube that matched the existing air line in diameter (1/8"). Now you might be wondering why I did not take the existing tube out and just replace with a newer longer one. The answer is two fold. First, the tube was securely glued in and I probably could have gotten it out, but it would have destroyed the tube and that leads into the second reason. I did not have any longer pieces of 1/8" brass tube (I used the 1/8" on the WTC air tubes on top of the WTC).
                Click image for larger version

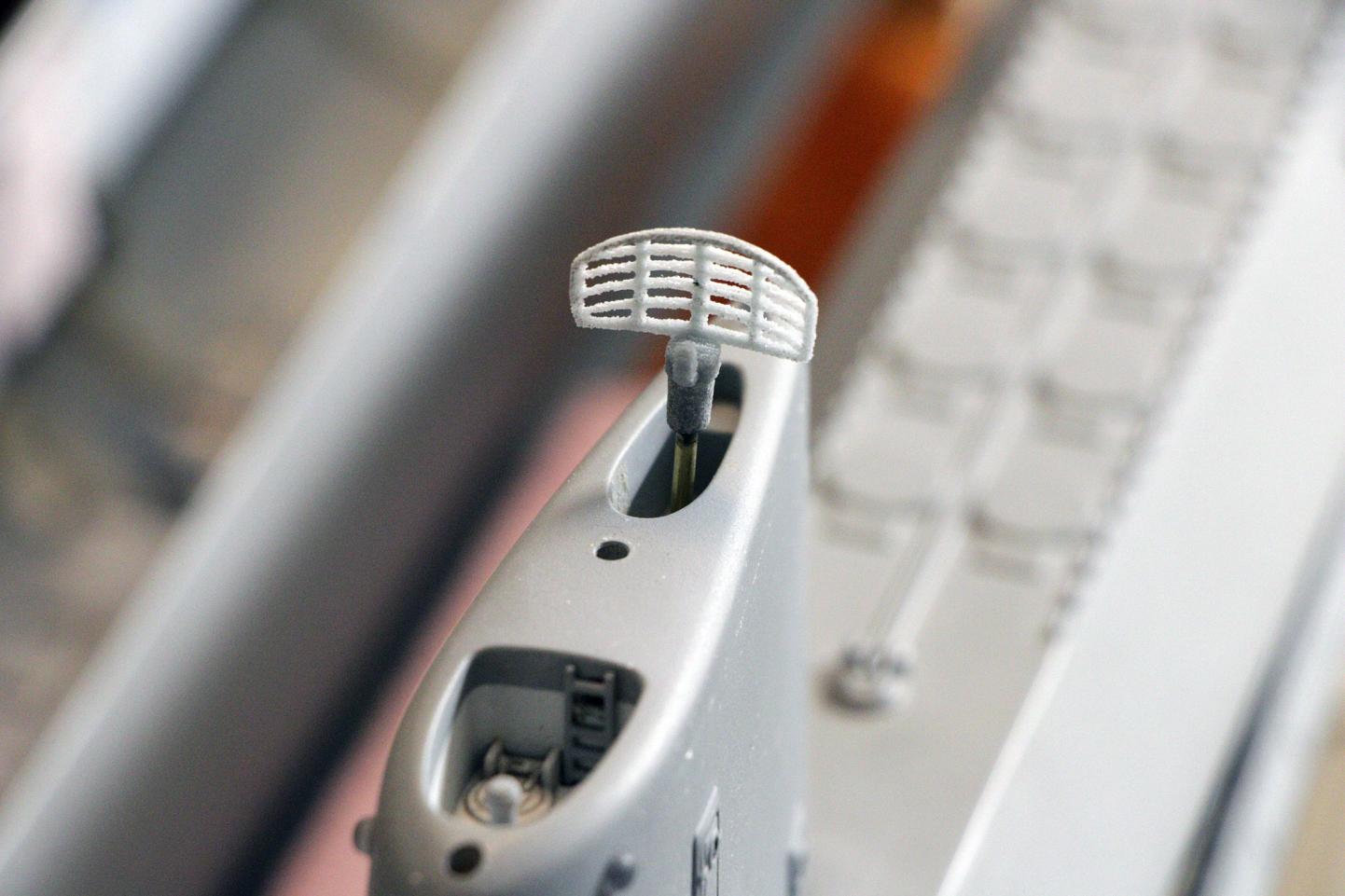

Name:	Seaview _075.jpg
Views:	1
Size:	111.1 KB
ID:	133205

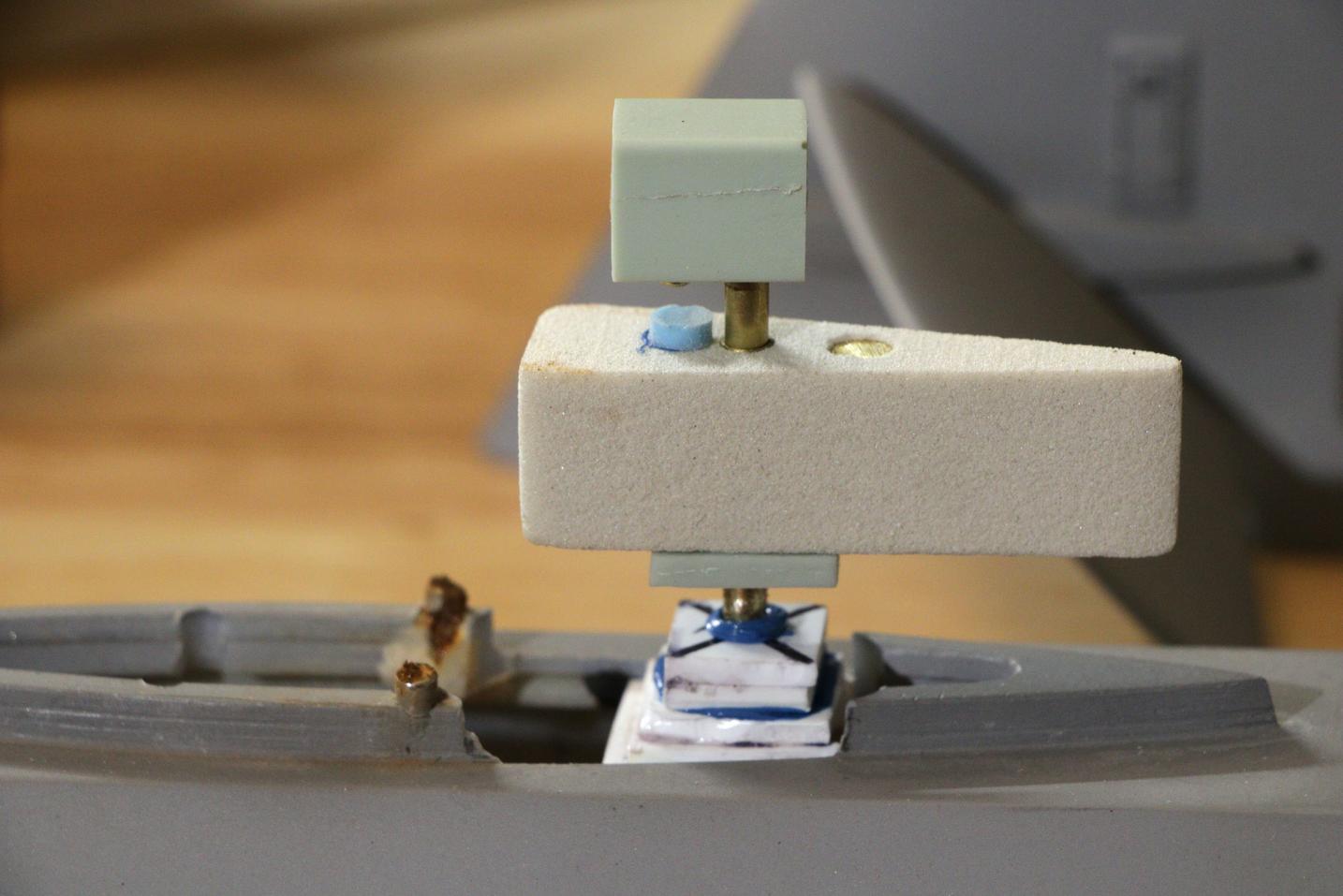

                Raising this were the top of the valve touched the top of the sail inside.
                Click image for larger version

Name:	Seaview _076.jpg
Views:	1
Size:	107.1 KB
ID:	133201

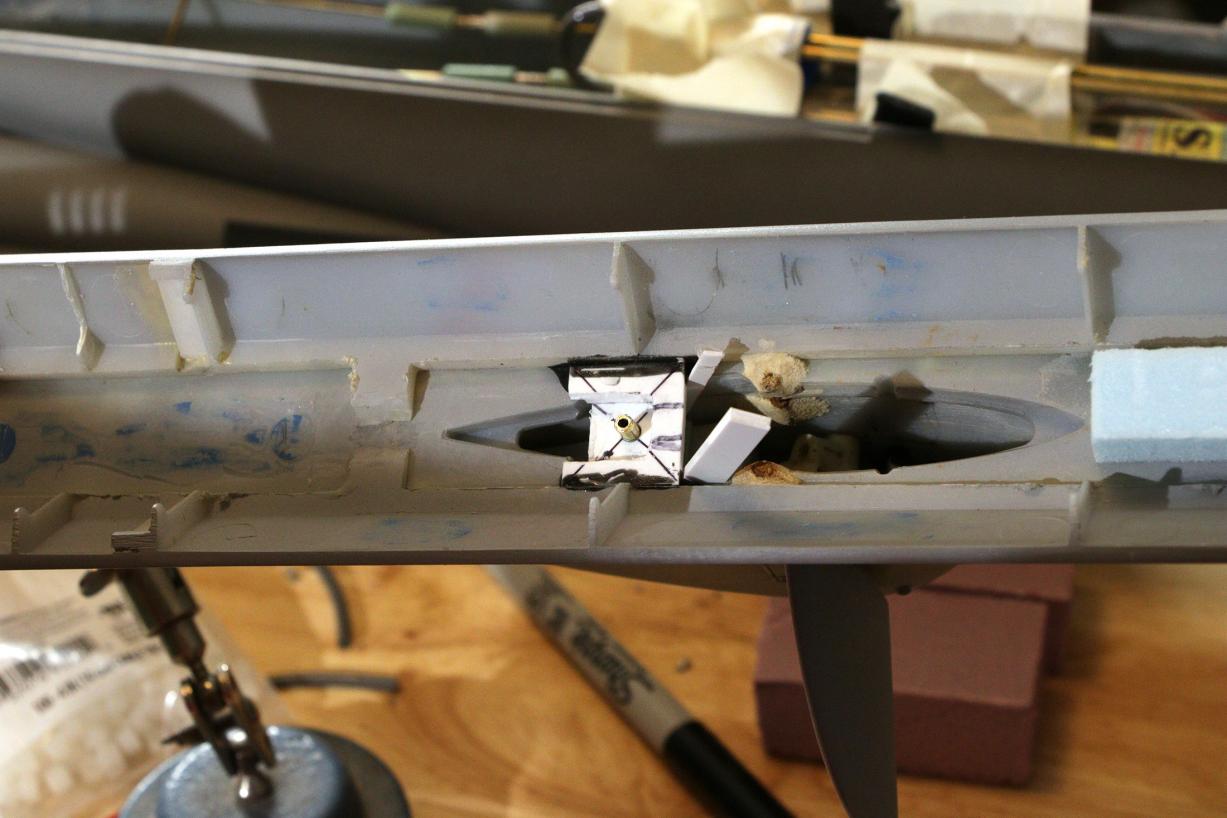

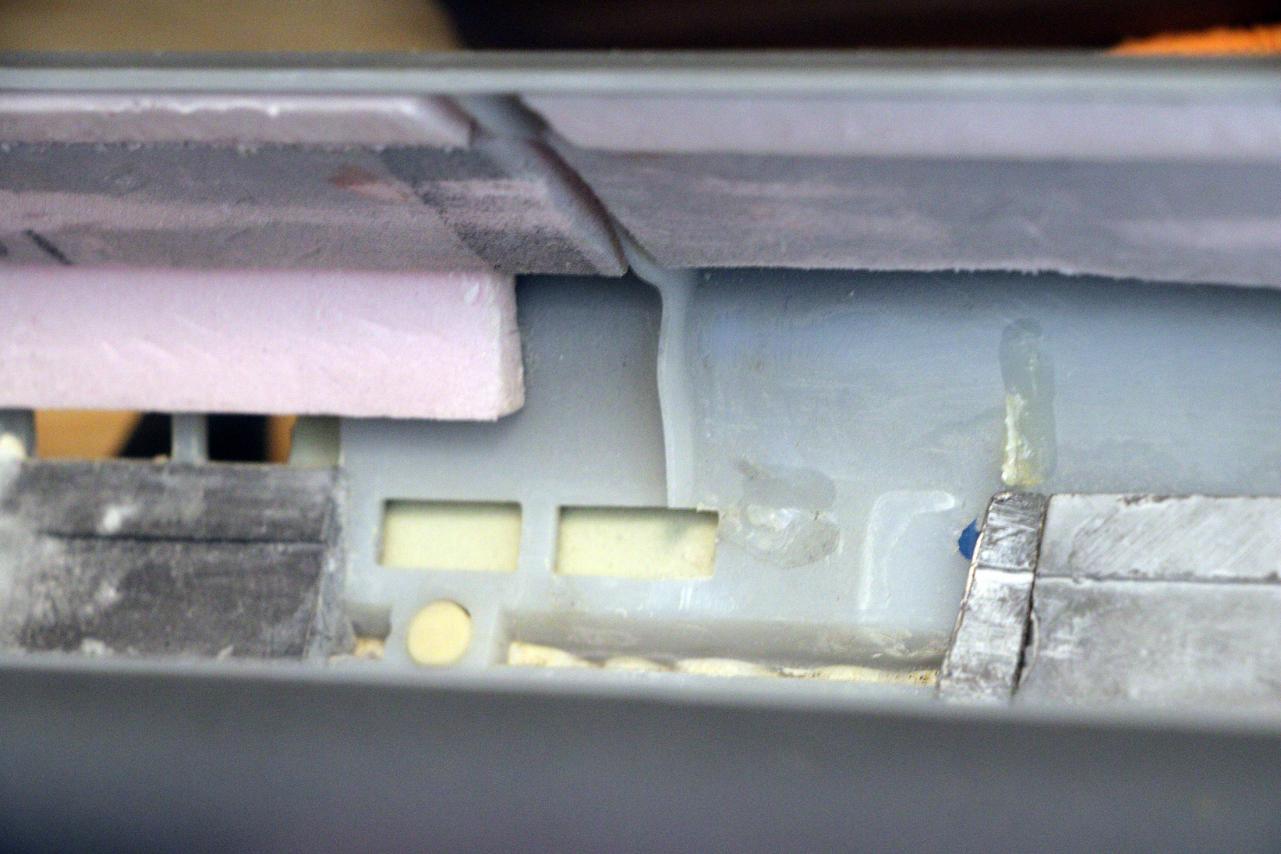

                Now to secure this to the base made earlier, I cut two more plastic squares and drilled a 1/8" hole in the center. The two squares were bonded together. This was enough of a support to keep the extension from moving around. I used RTV silicon to secure the tube to the new plastic base and secure the new base to the original.
                Click image for larger version

Name:	Seaview _077.jpg
Views:	1
Size:	100.8 KB
ID:	133206

                Spacers are installed until it all cures.
                Click image for larger version

Name:	Seaview _078.jpg
Views:	1
Size:	91.6 KB
ID:	133207
                Last edited by salmon; 04-01-2019, 02:44 AM.
                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                Comment

                • salmon
                  Treasurer
                  • Jul 2011
                  • 2327

                  #38

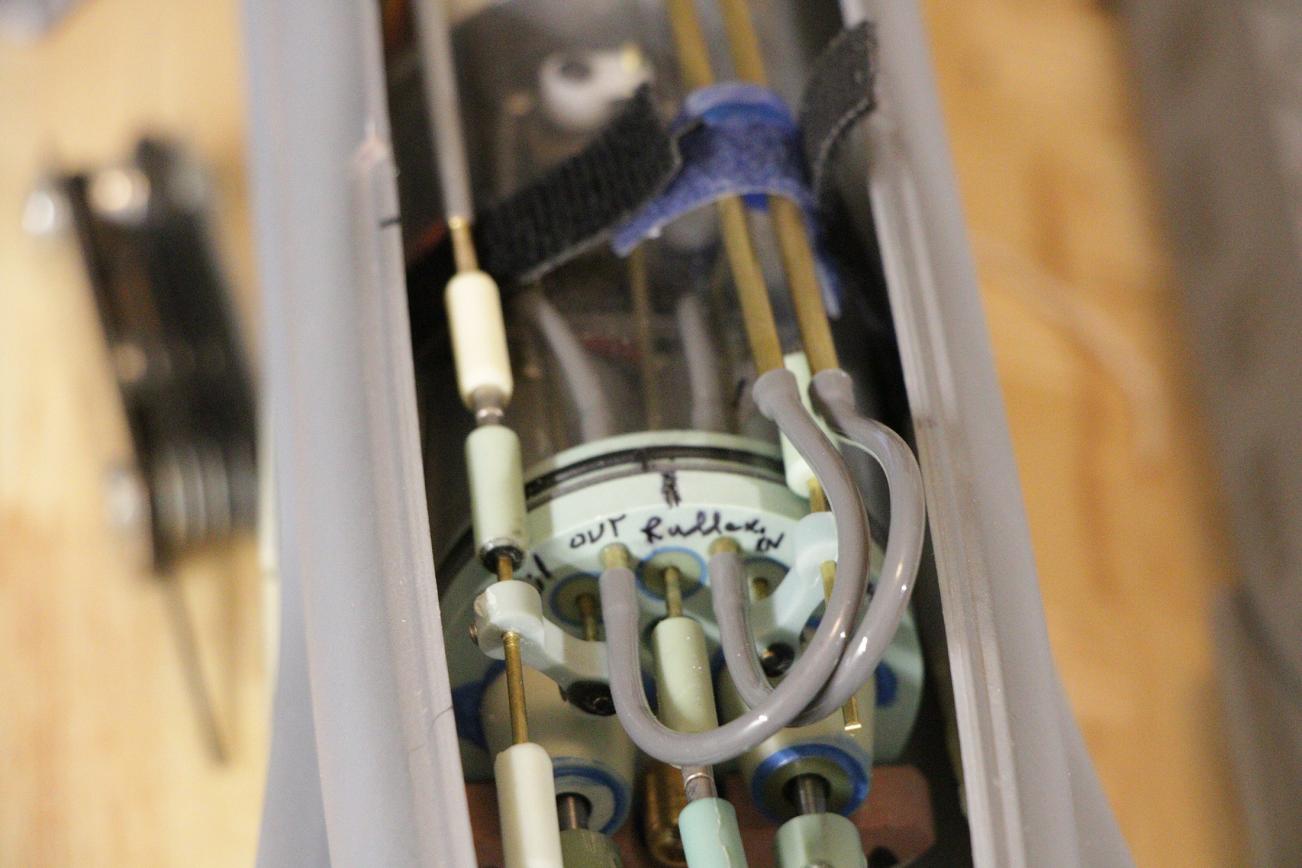

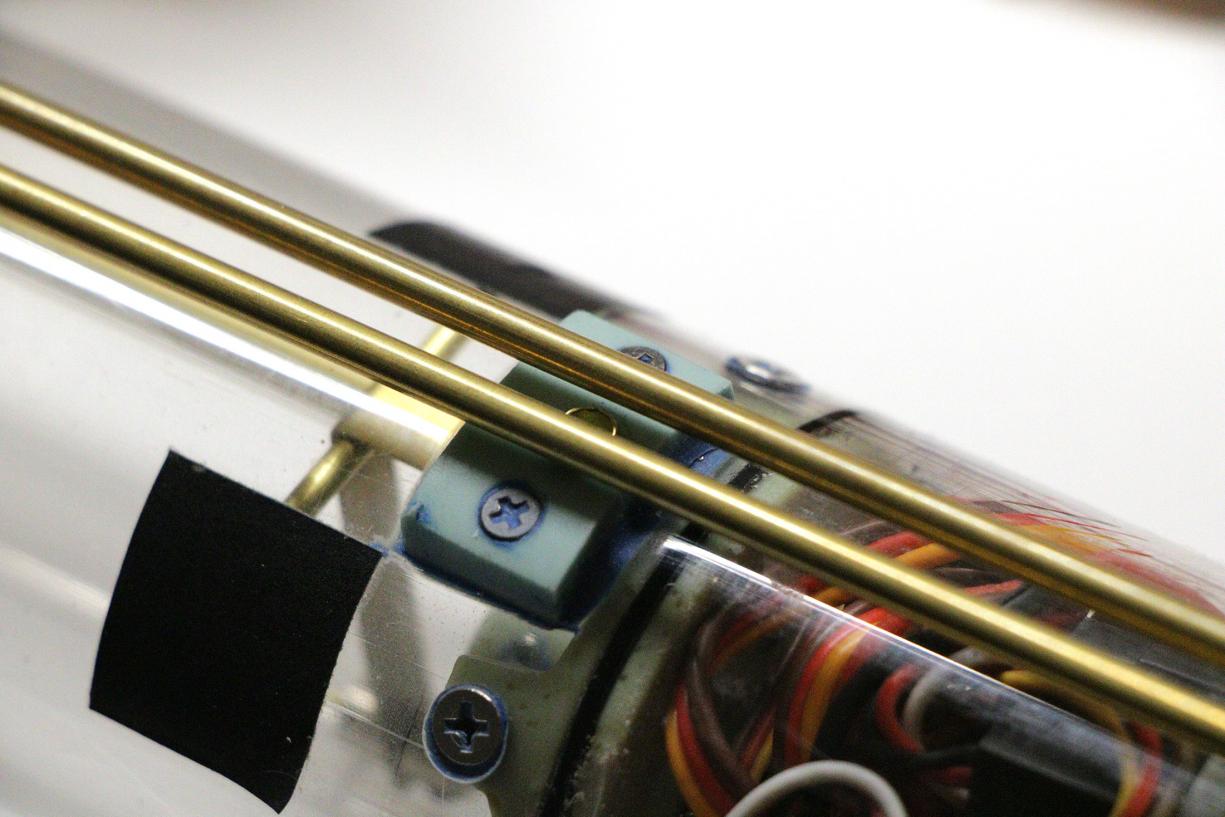

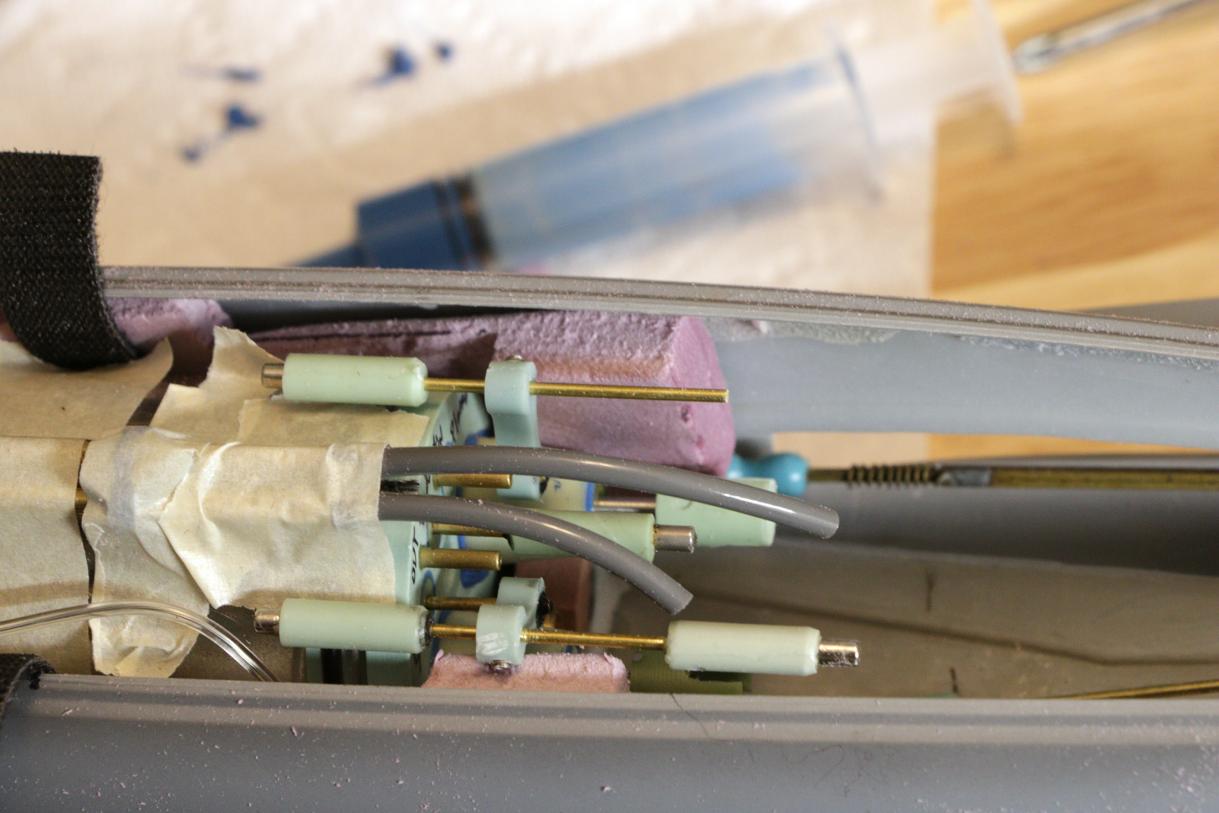

                  The air tubes needed to get affixed to the Sub-Driver tube.

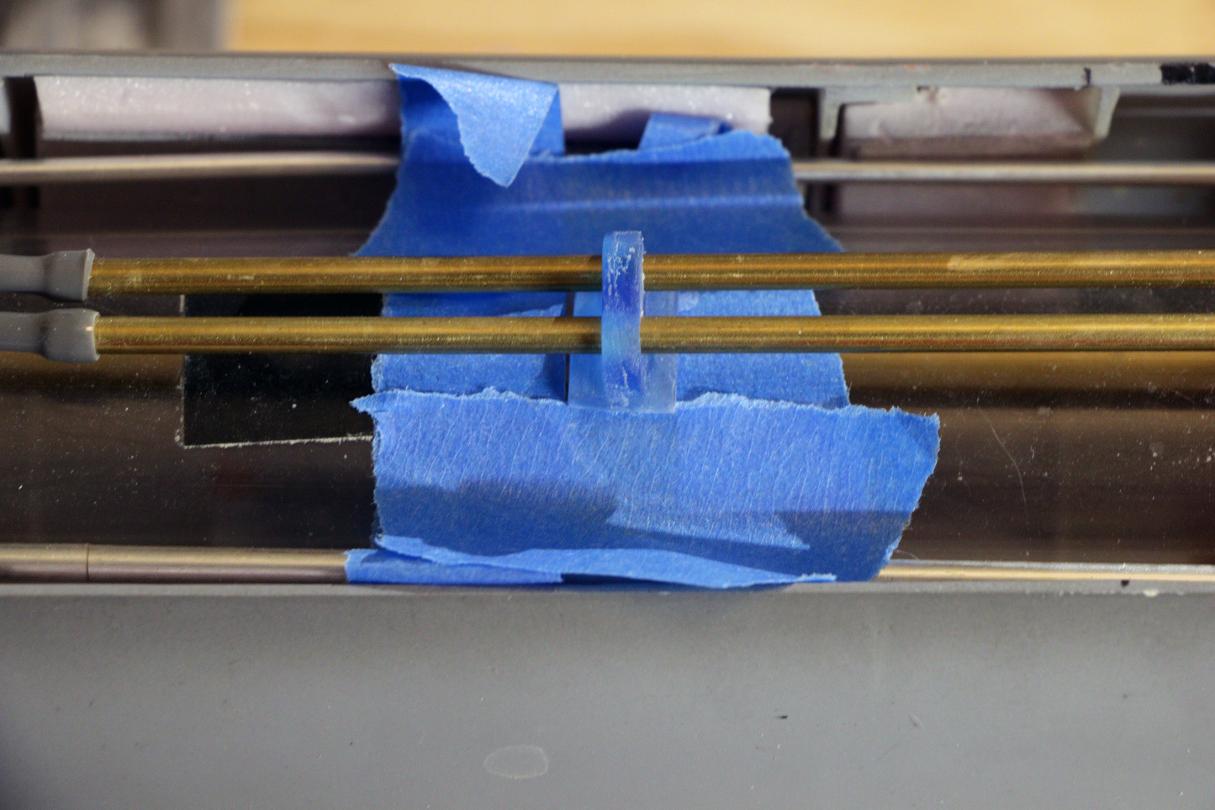

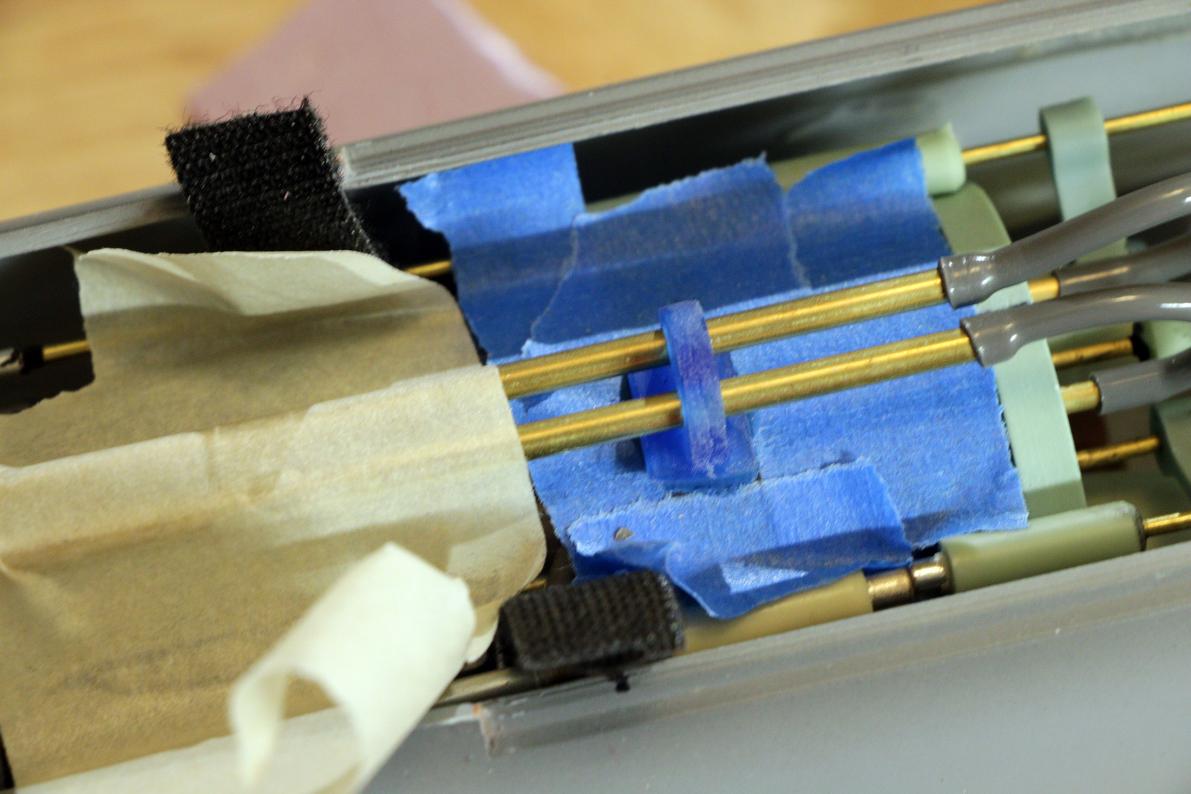

                  Once I decided the placement, I put painters tape outlining the base of the tube holders.
                  Click image for larger version

Name:	Seaview _082.jpg
Views:	1
Size:	91.4 KB
ID:	133208

                  Then moving the tube holder away, roughed up the cylinder's tube with a course sandpaper. The tape protects the tube so only the area beneath the holder will get roughened up.
                  Click image for larger version

Name:	Seaview _083.jpg
Views:	1
Size:	91.1 KB
ID:	133209

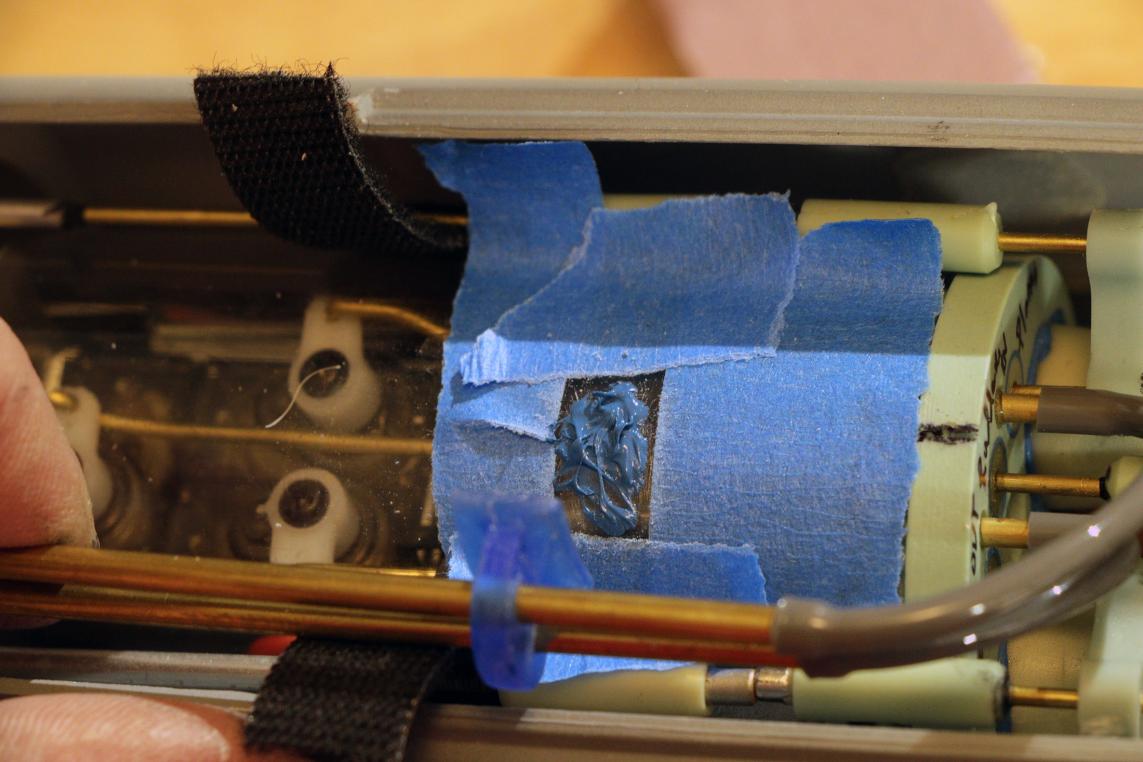

                  Dabbed on some RTV silicon and placed the tube holder back into the location blocked out by the tape.
                  Click image for larger version

Name:	Seaview _084.jpg
Views:	1
Size:	90.8 KB
ID:	133210

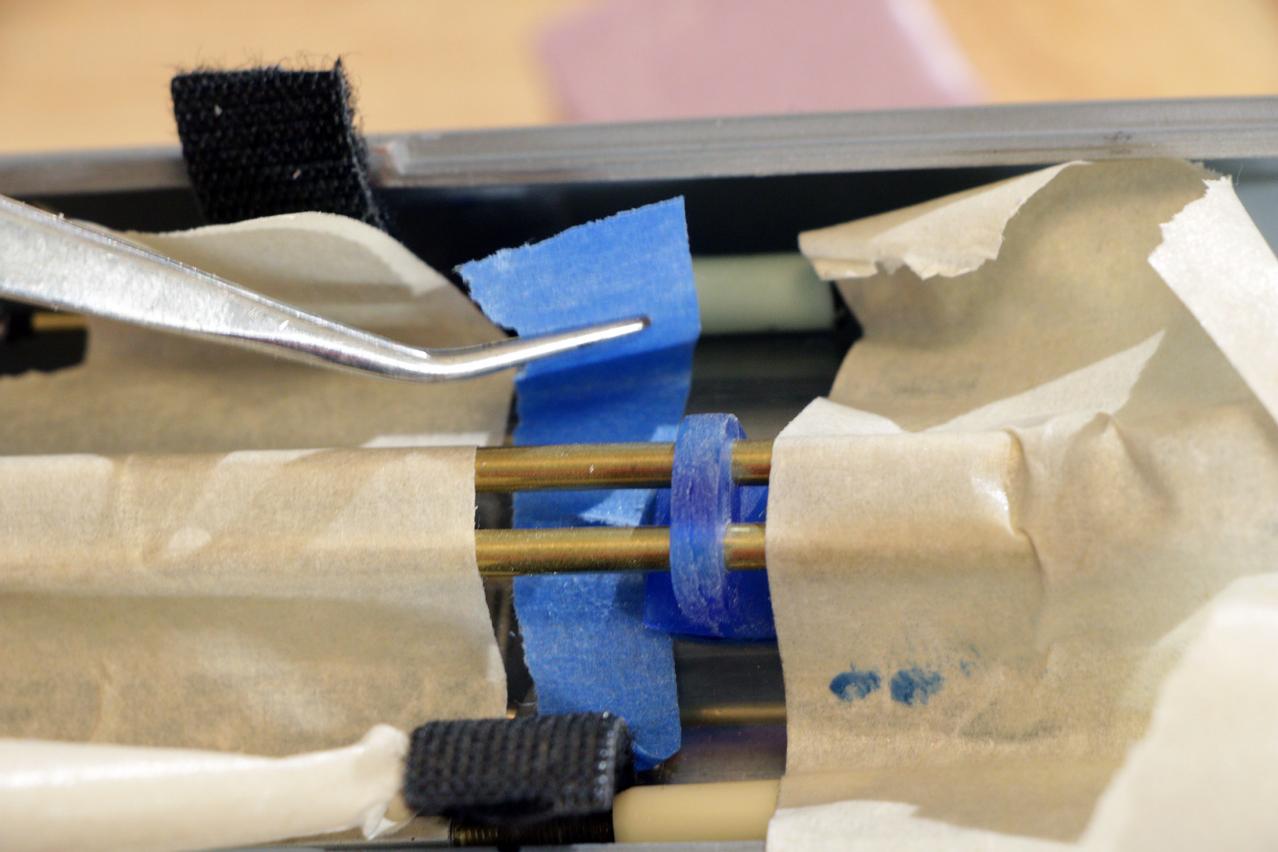

                  I used masking tape to hold the tubes and tube holder down.
                  Click image for larger version

Name:	Seaview _085.jpg
Views:	1
Size:	88.3 KB
ID:	133211

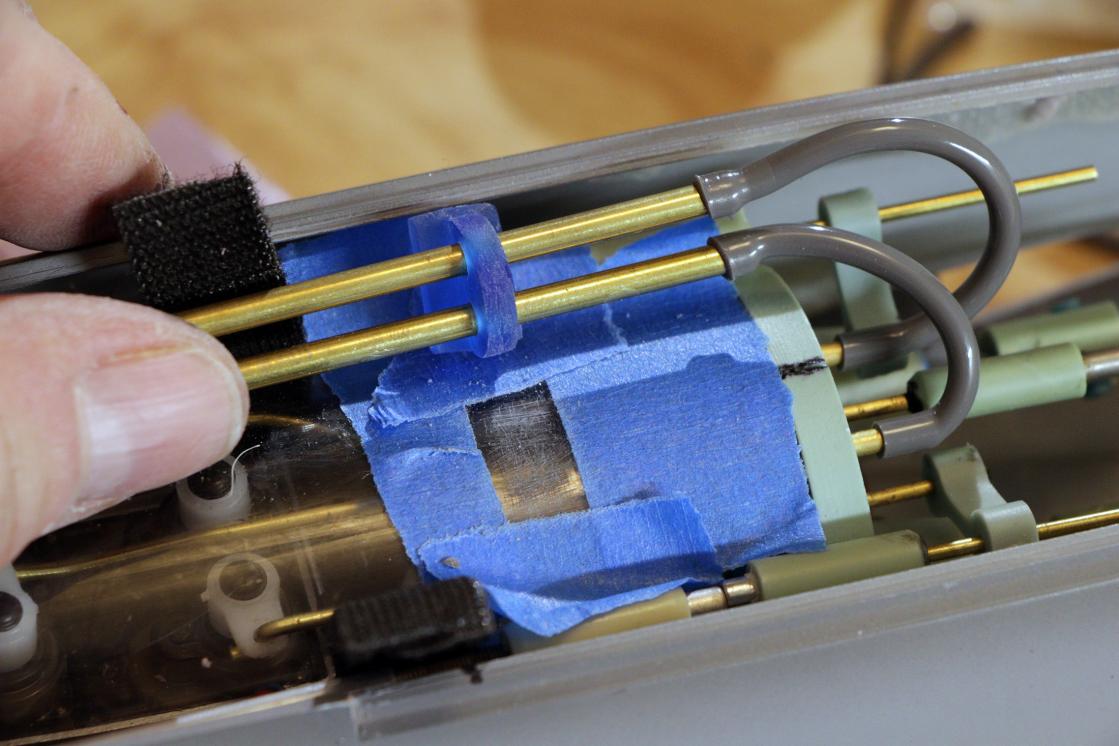

                  Carefully removed the painters tape. This then took the extra RTV, that may have oozed out, away before it set. Extra masking tape was place to keep everything secure until fully cured.
                  Click image for larger version

Name:	Seaview _086.jpg
Views:	1
Size:	84.9 KB
ID:	133212

                  I will call this done for today. Maybe tomorrow will be a day of cutting foam and playing with trim. I want to see if I can forgo the front foam by removing the one weight removed.
                  Last edited by salmon; 03-31-2019, 03:22 AM.
                  If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                  Comment

                  • salmon
                    Treasurer
                    • Jul 2011
                    • 2327

                    #39

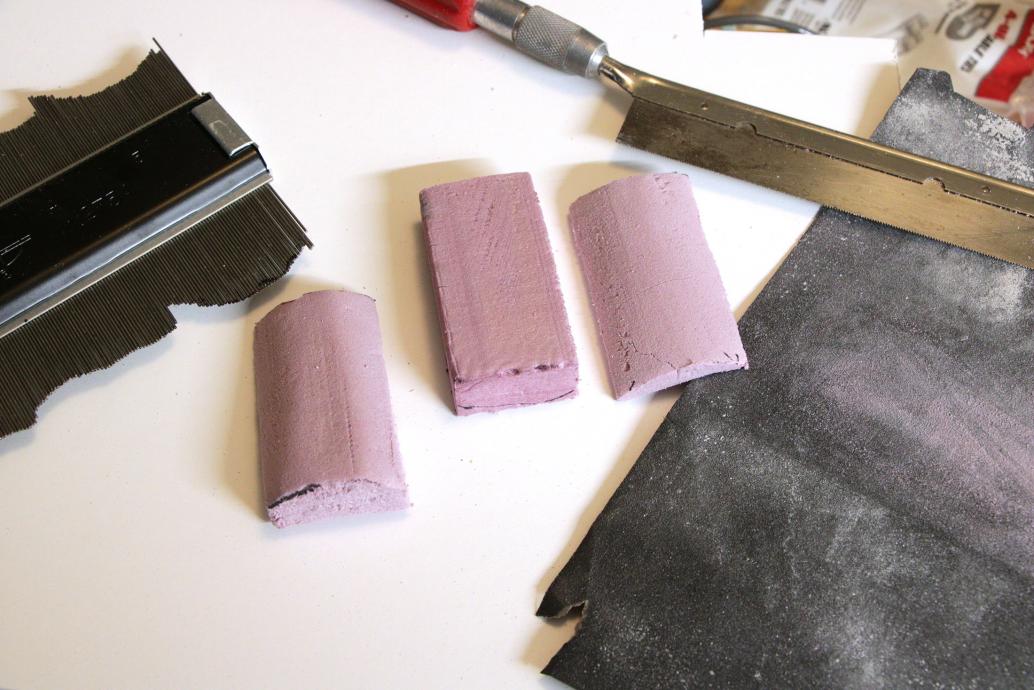

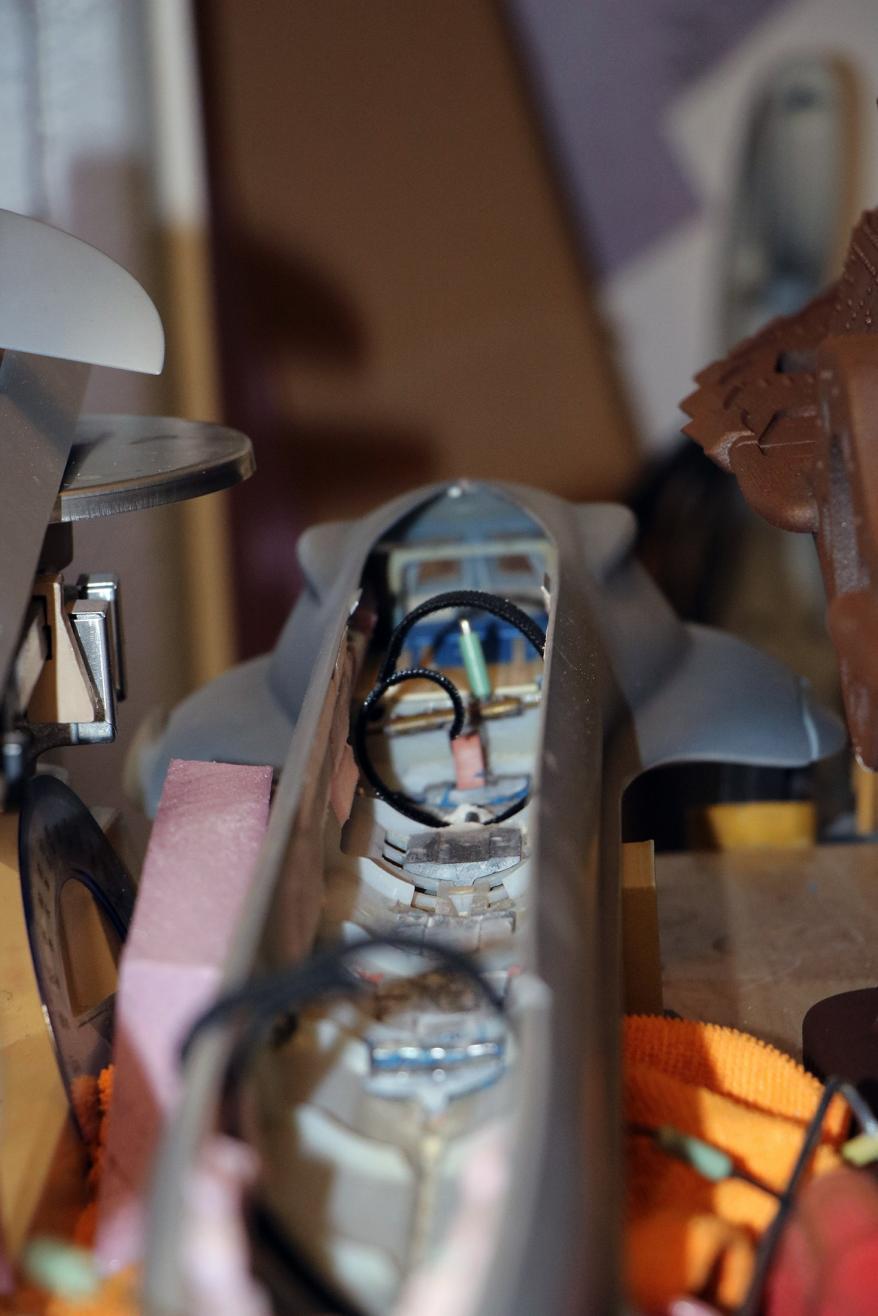

                    The large blocks that need to go in the aft area need to be shaped and installed. The blocks cannot just be put in here because we have Push rods, drive shafts, and curved walls need to be taken into account.
                    So shaping begins.
                    Click image for larger version

Name:	Seaview _087.jpg
Views:	1
Size:	96.8 KB
ID:	133213

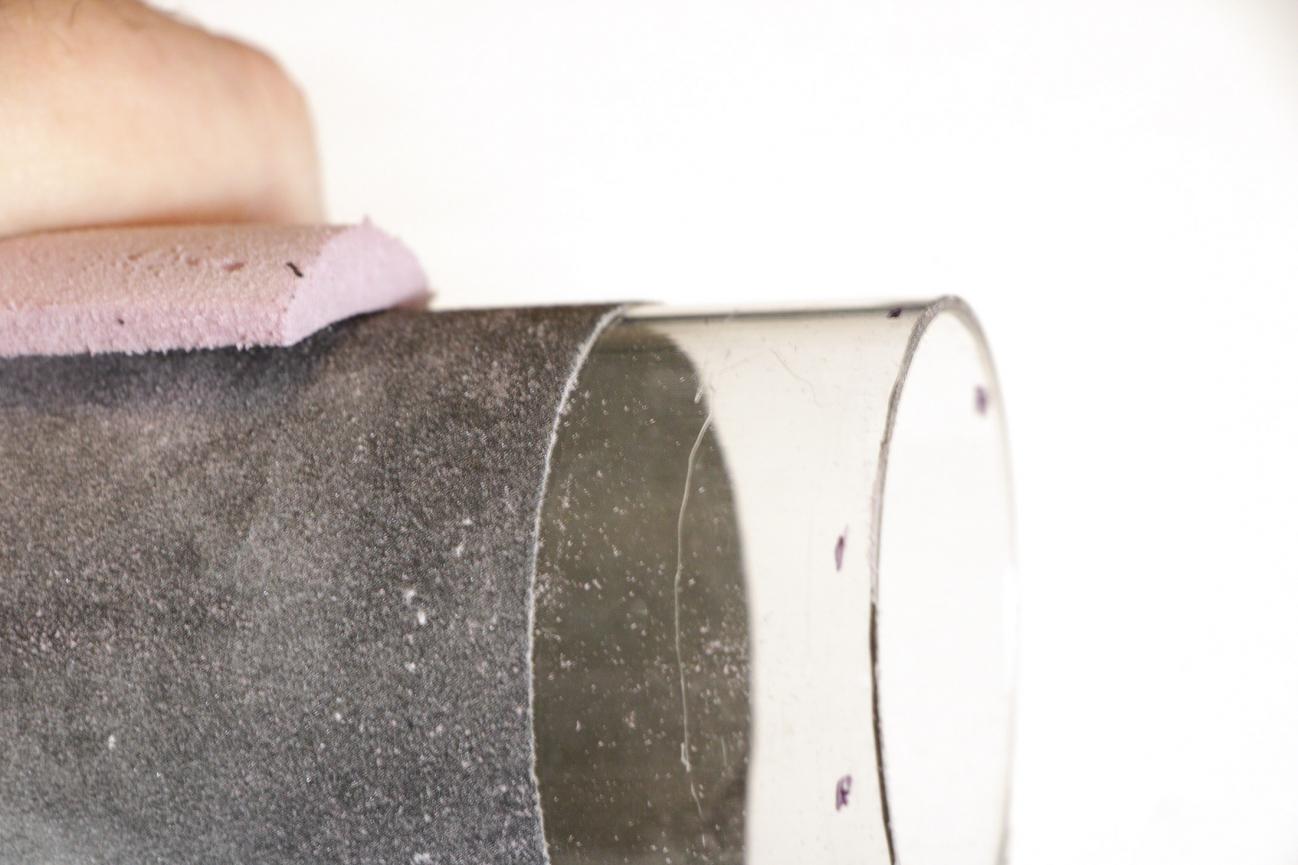

                    The inside face of the foam that fits next to the cylinder needs to get a curve too.
                    Click image for larger version

Name:	Seaview _088.jpg
Views:	1
Size:	91.0 KB
ID:	133214

                    Everything gets tested and shaped.
                    Click image for larger version

Name:	Seaview _089.jpg
Views:	1
Size:	87.8 KB
ID:	133215

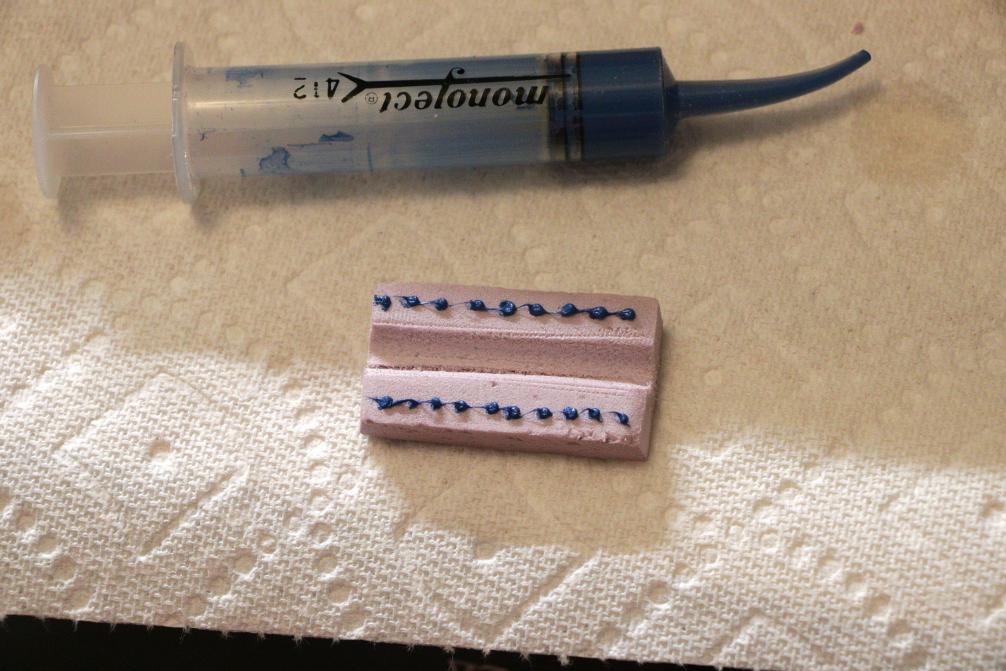

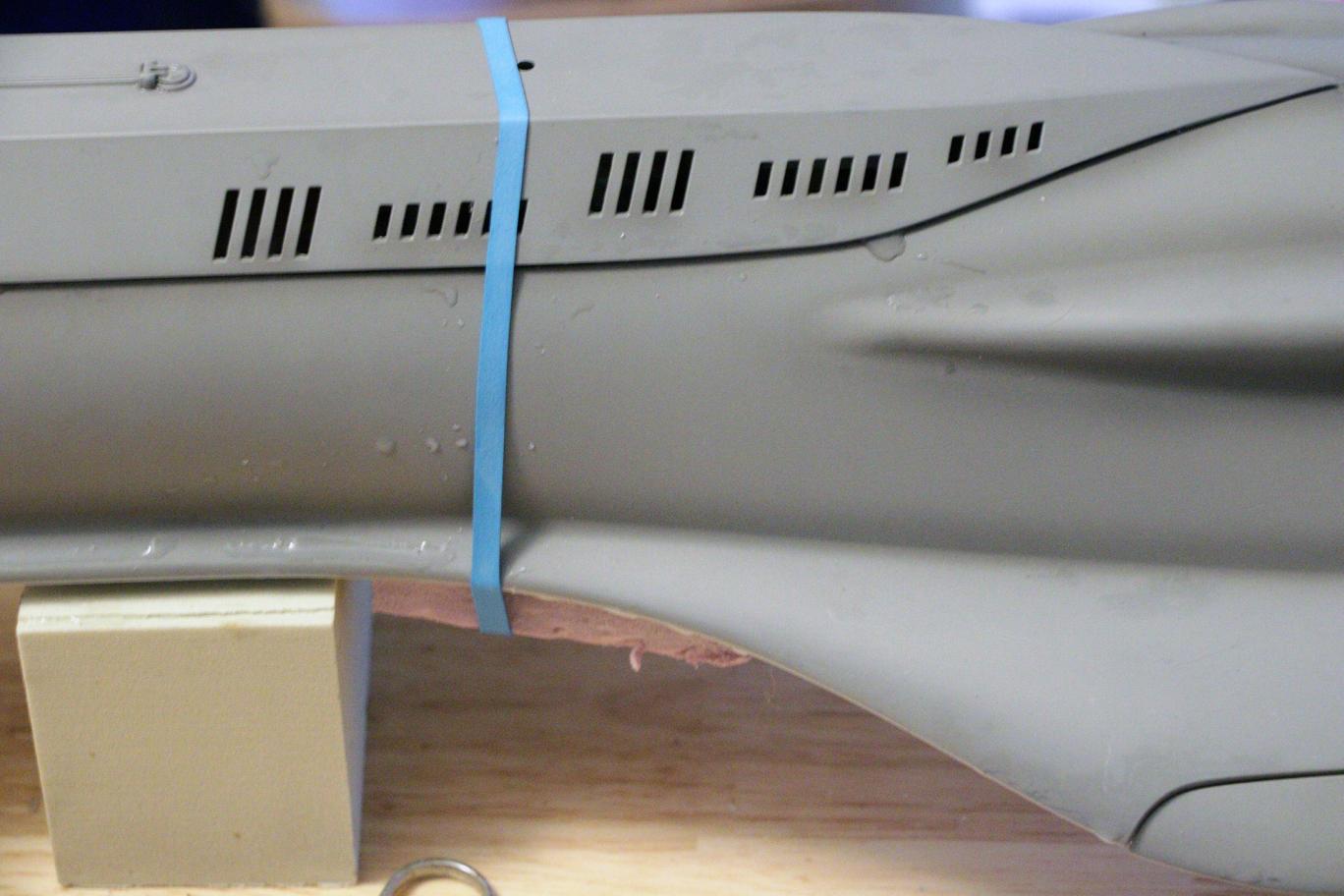

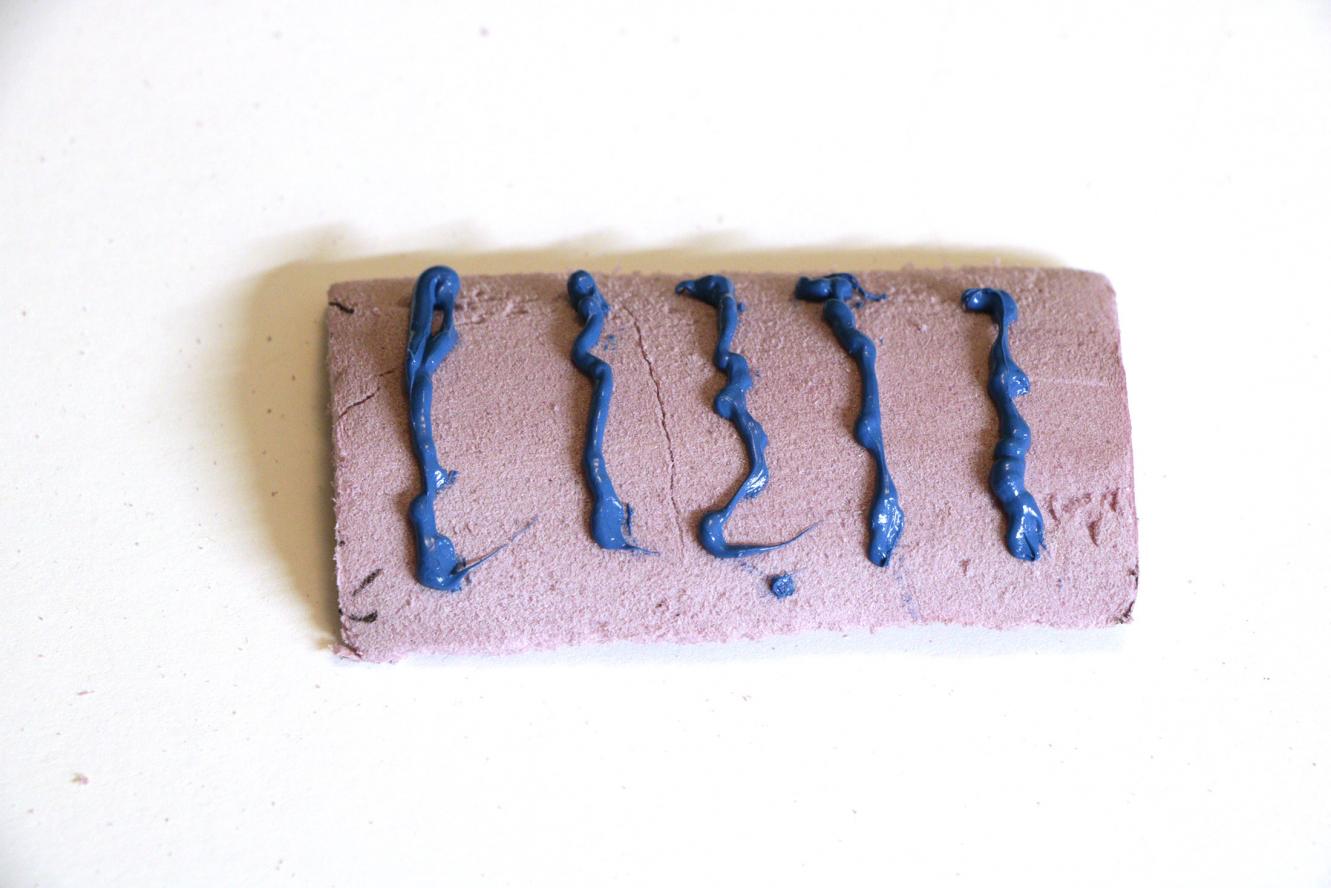

                    One I was happy, yeah my bar is set low, I placed RTV rubber on. Why am I doing vertical lines? Well, there is a story to that answer. My Gato when first put in water after not being wet will set higher. After being in the water it will slowly settle down. When I was building it, I had strange things happen. One moment it was trimmed well and the next it was heavy. I came with the theory that I have areas trapped behind the foam that slowly release the air trapped there. To test this thought. I put the Gato in the kiddie pool and filled the ballast tank. After a time, I do not remember how long, let's say an hour. I came back out to find the sub sitting on the bottom of the kiddie pool.
                    Now back to the vertical stripes. My thinking is any air will be able to travel out and not be trapped by any horizontal rubber sealing or slowing air from escaping.
                    Click image for larger version

Name:	Seaview _090.jpg
Views:	1
Size:	92.9 KB
ID:	133240
                    With all the trimming and shaping, I am losing some of that foam. This is some of the bits and pieces trimmed off.
                    Click image for larger version

Name:	Seaview _091.jpg
Views:	1
Size:	93.1 KB
ID:	133216

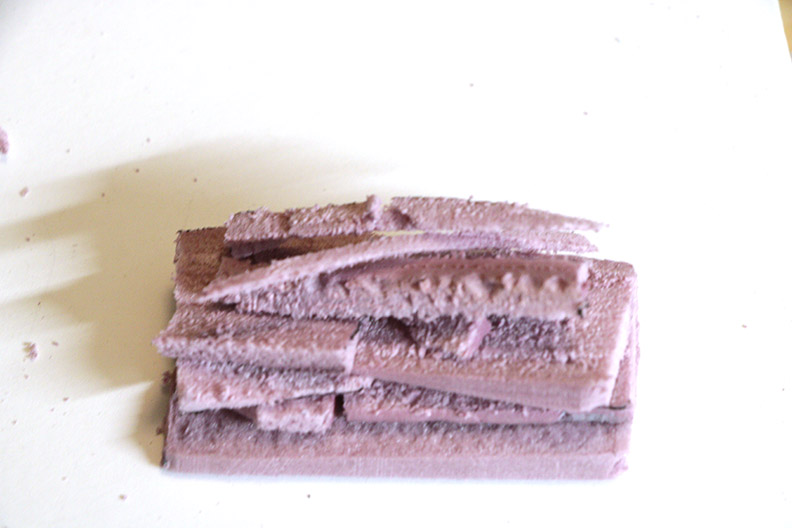

                    Stacking it helps me work on guesstimating how much more I need to add to make up for what was lost during shaping.
                    Click image for larger version

Name:	Seaview _092.jpg
Views:	1
Size:	81.7 KB
ID:	133217t

                    Another point about trimming and adding of foam (and weight for that matter). Location makes a difference. Let us say my aft is heavy. If I put 1" cube at the very end of the sub and for discussion sake, that made the trim perfect, if I move the foam inwards say 4", the sub will become heavy in the aft. The opposite is true too. If I put a foam that is 12" from the aft of the boat and the boat is level, if I move the foam further back the aft end will begin to rise. So, I mention this because the chunk of foam I used, I need to try distribute it to match the one piece lift that is now spread over a larger area.
                    Click image for larger version

Name:	Seaview _093.jpg
Views:	1
Size:	87.8 KB
ID:	133218Click image for larger version

Name:	Seaview _094.jpg
Views:	1
Size:	87.1 KB
ID:	133219
                    Last edited by salmon; 04-12-2019, 09:25 PM.
                    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                    Comment

                    • bob_eissler
                      SubCommittee Member
                      • Aug 2005
                      • 331

                      #40
                      Lifting the float up is a great idea, has to help. I think I have had foam trap air too.

                      Comment

                      • salmon
                        Treasurer
                        • Jul 2011
                        • 2327

                        #41
                        Did some testing on Monday (got sick yesterday - sorry for not posting sooner).

                        Moving the float up higher did indeed help!
                        Had to add weight back in. The sub on surfacing has the tendency to roll (like the Gato does) as the ballast tank is emptying because of the large amount of freeboard we are hoisting into the air. Once empty or surface trim it sat fine and fully submerged it was fine, it is just that transition. The way I reduced the roll in the Gato was to add weight and offset it with more foam (increase metacentric height).

                        I will post photos and more info as I will test again tonight.
                        Last edited by salmon; 04-03-2019, 01:26 PM.
                        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                        Comment

                        • salmon
                          Treasurer
                          • Jul 2011
                          • 2327

                          #42
                          There was just a little bit of foam needed to get it level.
                          Click image for larger version

Name:	Seaview _096.jpg
Views:	1
Size:	116.7 KB
ID:	133220

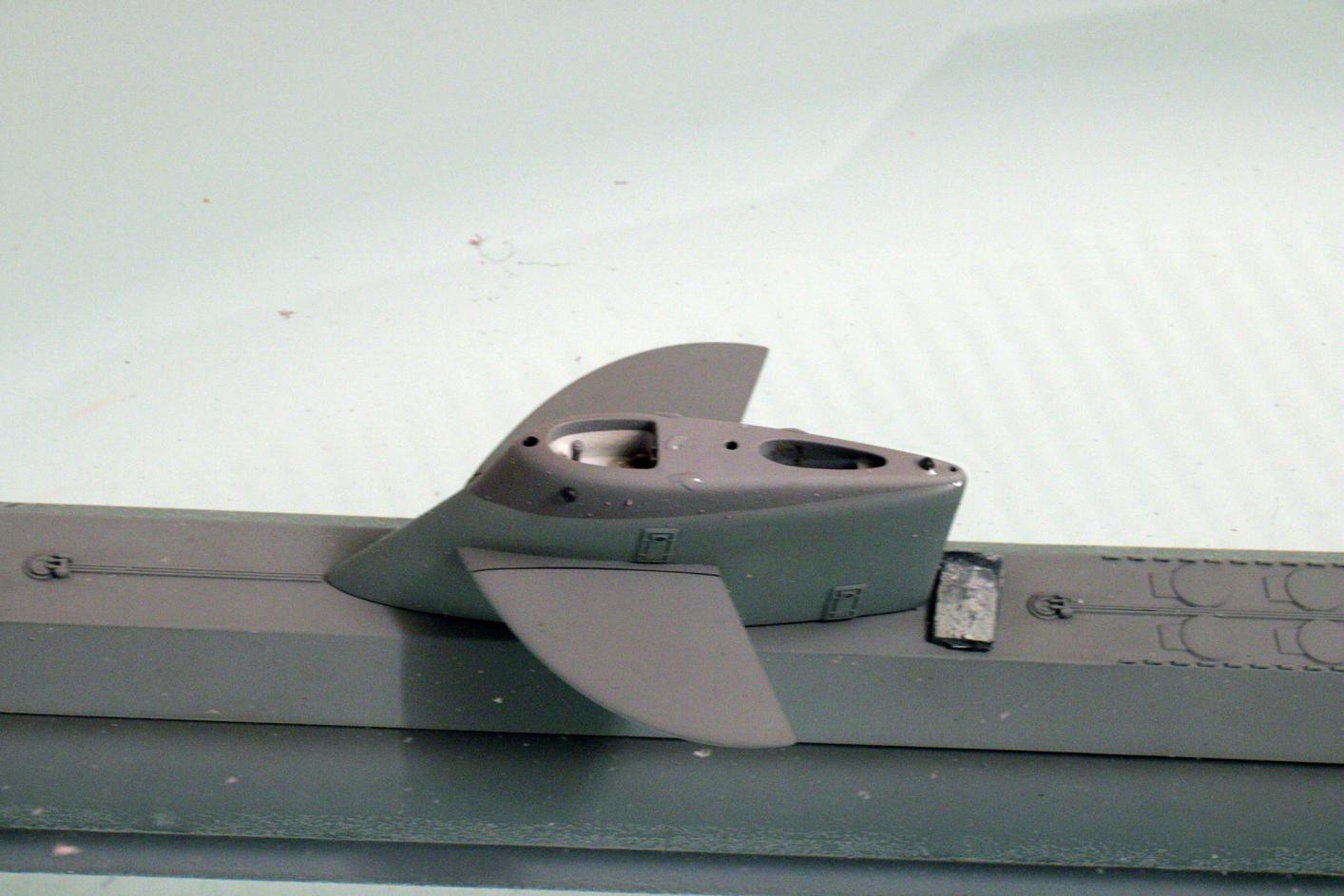

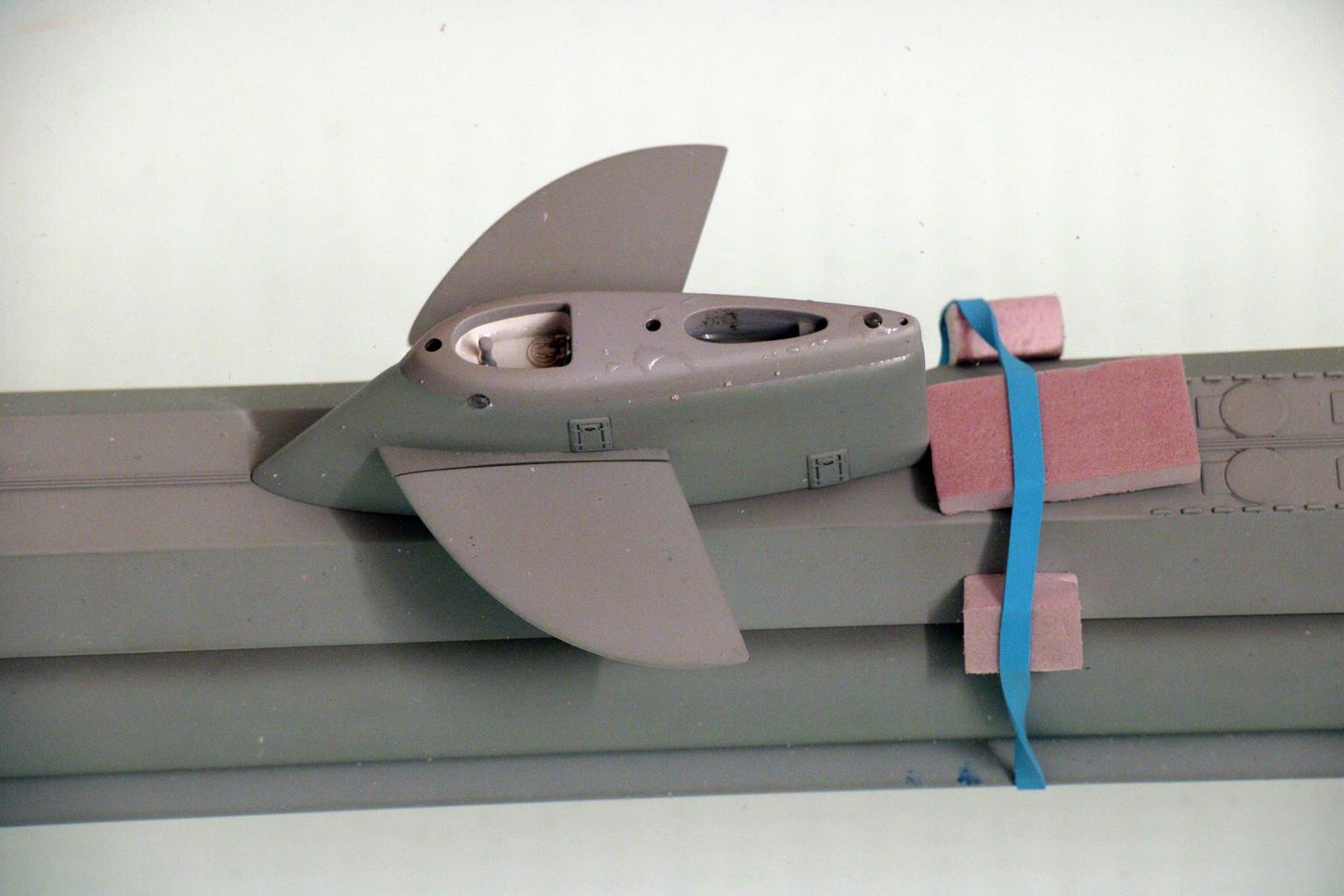

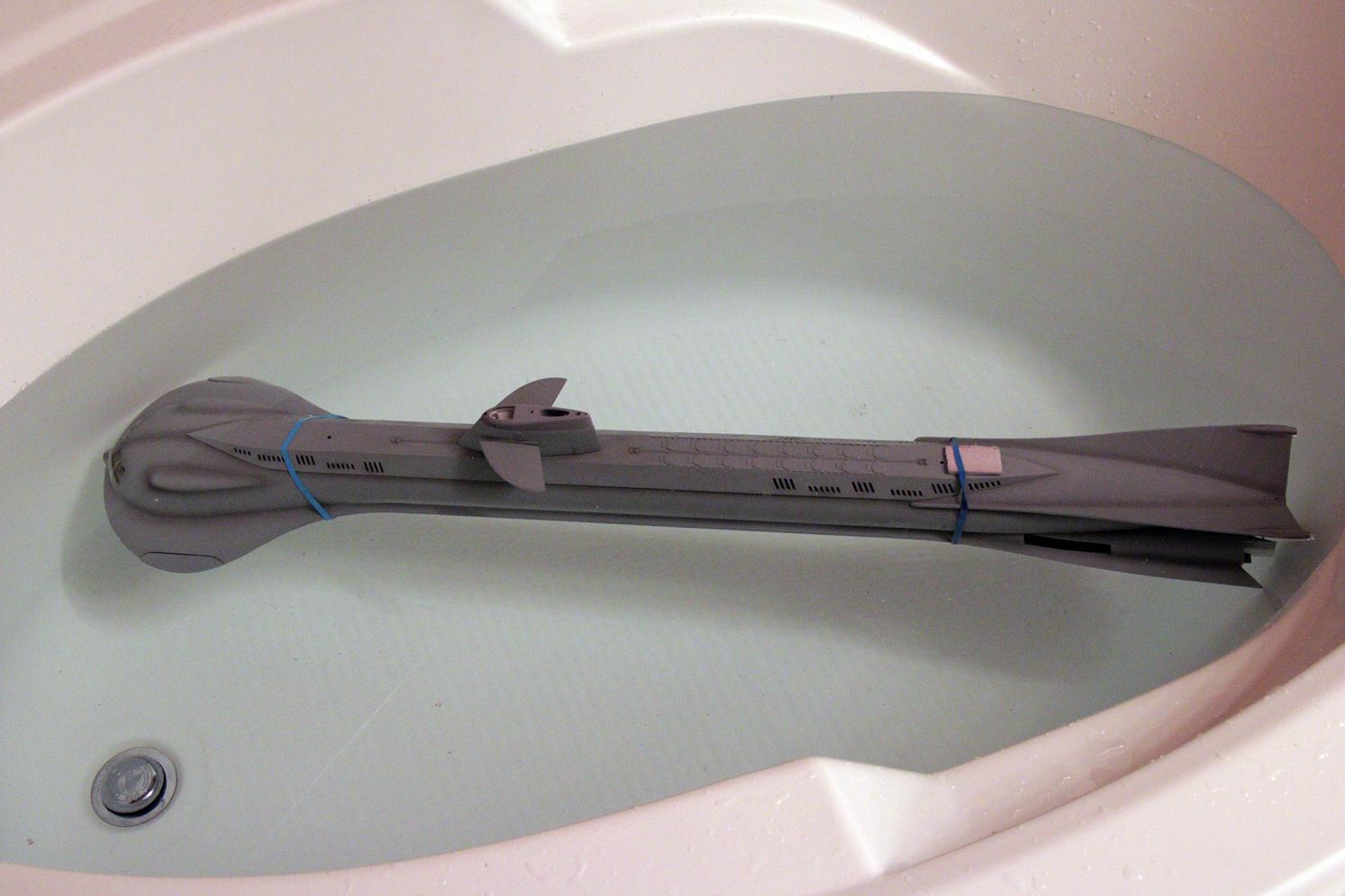

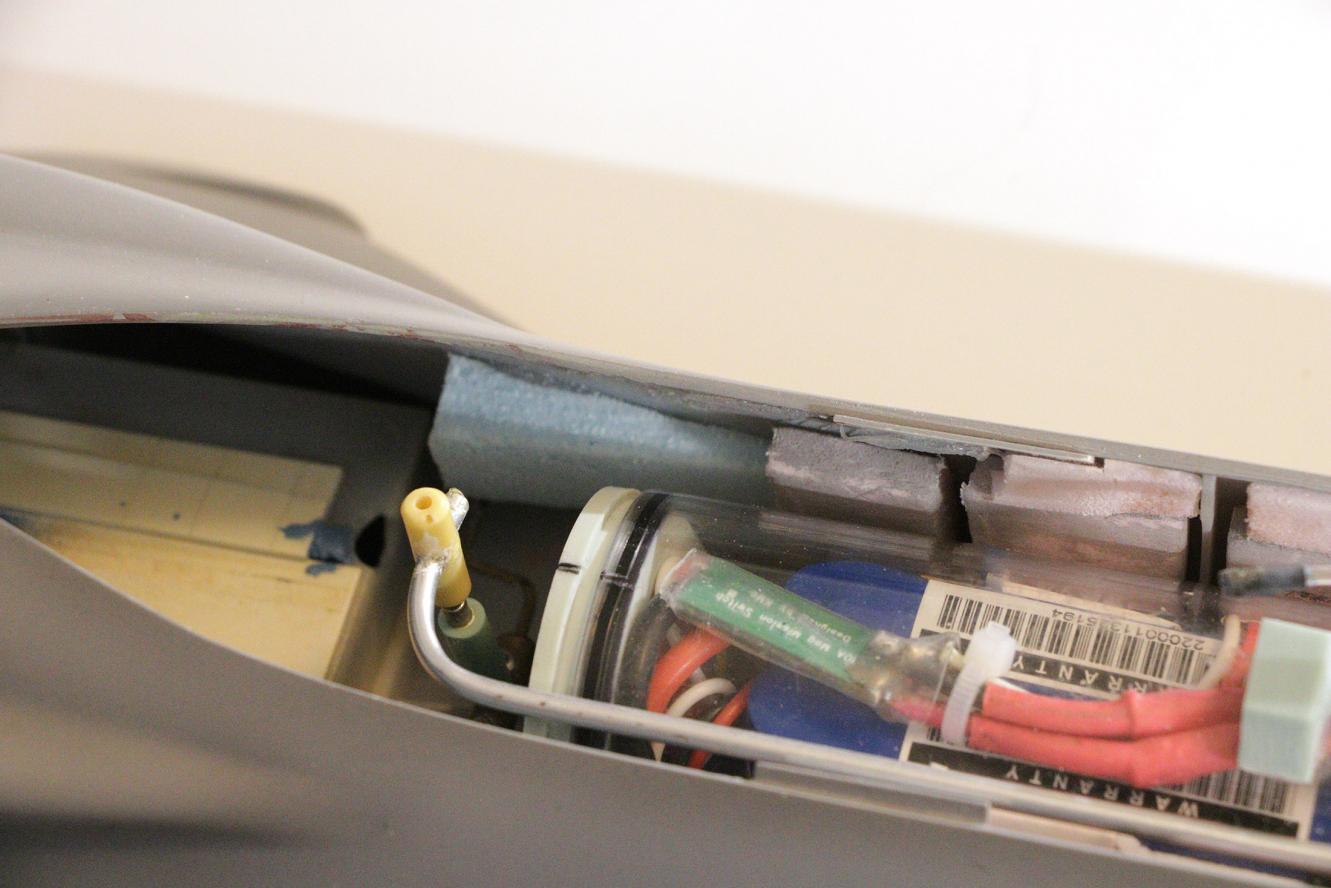

                          I thought great I'm done, but bringing it to the surface i dipped to the side almost looking like it was going to roll over!
                          I have seen this before.

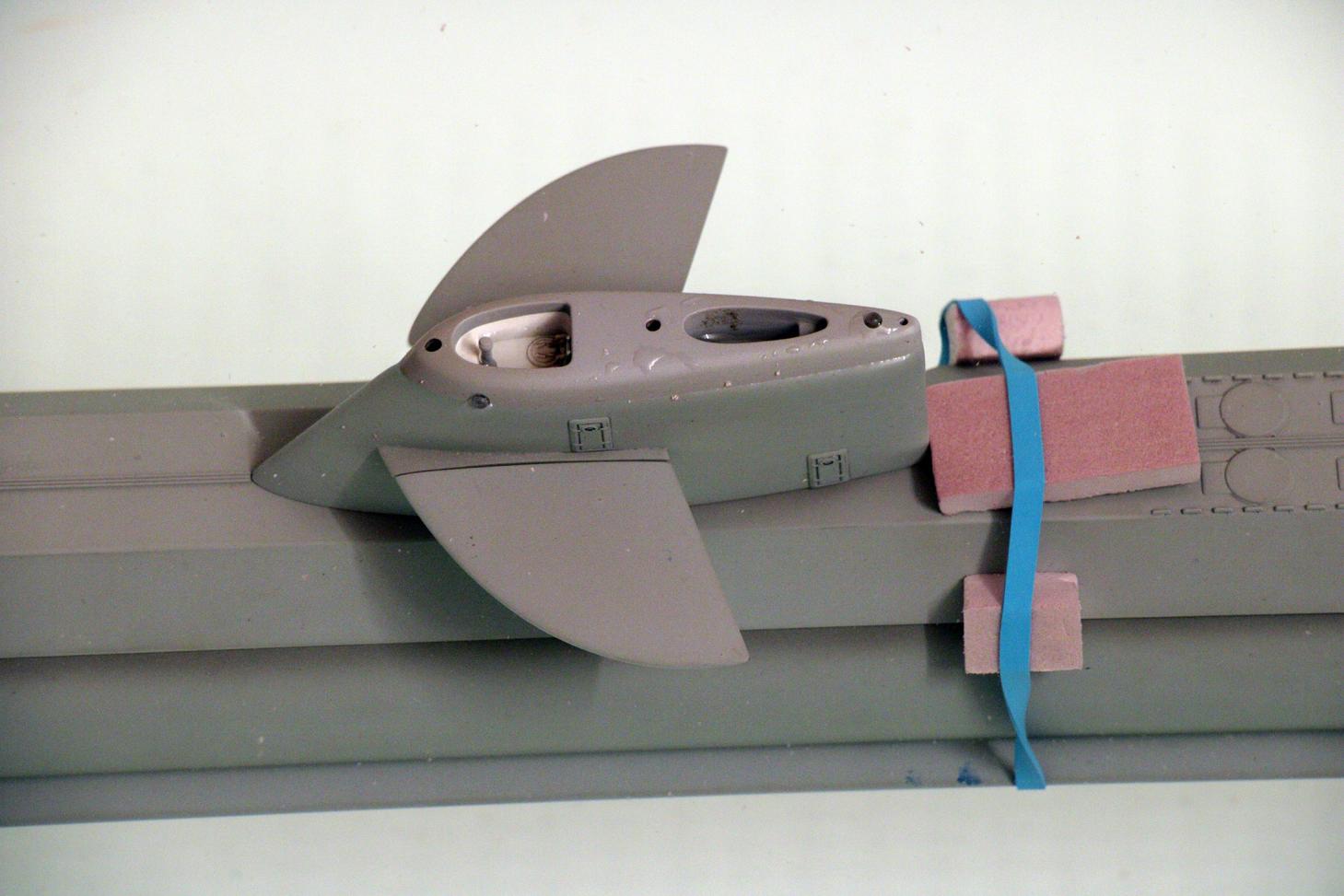

                          The Gato sub was a great learning sub for me. This sub has a similar quality, we are moving a lot above the surface of the water and it is a narrow sub. What I learned was you need to add more weight and more foam to over come the tipping or reduce it significantly. I put just one of the weights in, the largest one of the three and went back to trimming.

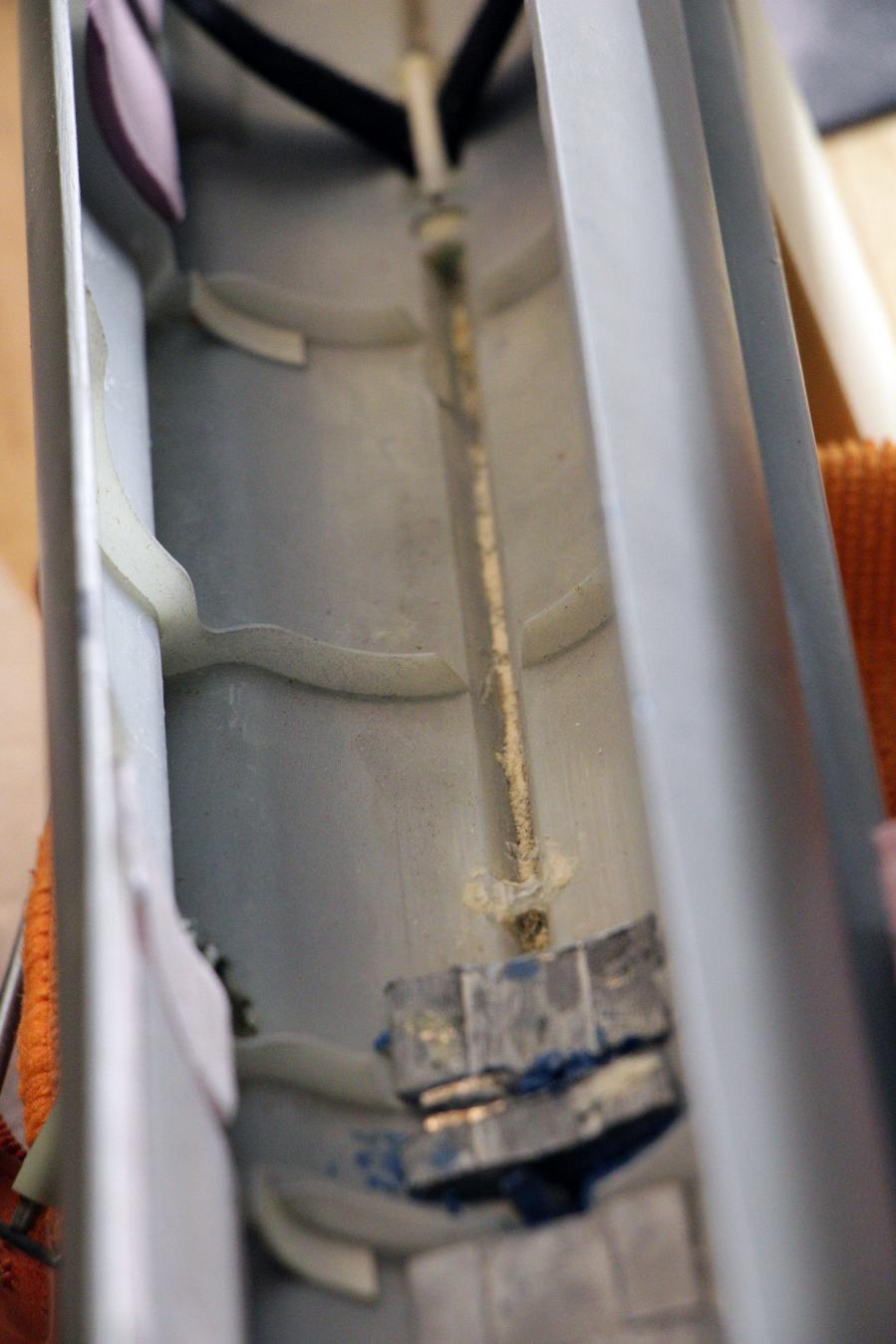

                          Several chunks of foam and when it was level, the sail was higher than I wanted. Added a little more weight. The weight was put just behind the sail, but let me show how position can make a big difference in trim. I took a small weight and moved it aft.
                          Click image for larger version

Name:	Seaview _097.jpg
Views:	1
Size:	112.9 KB
ID:	133221

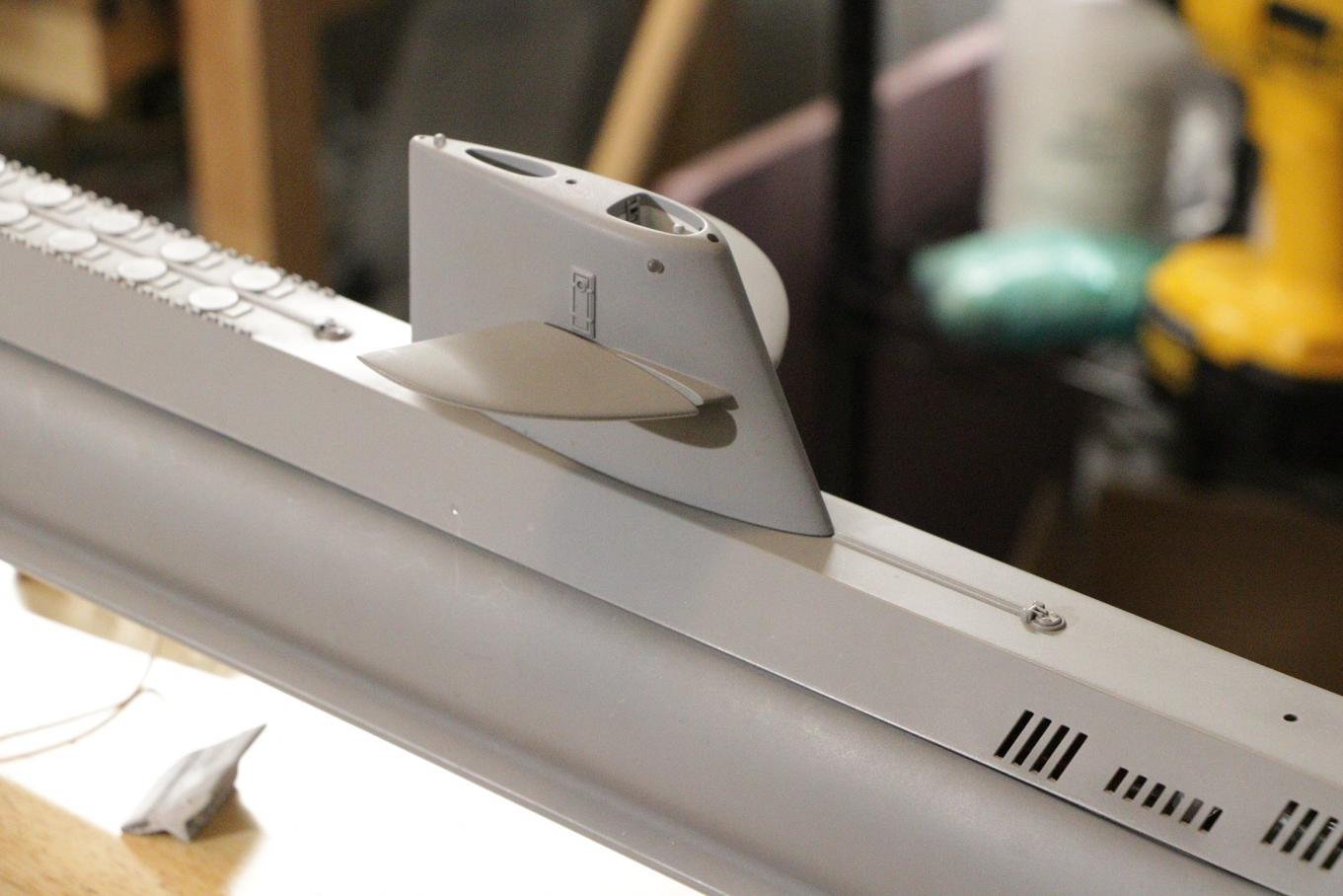

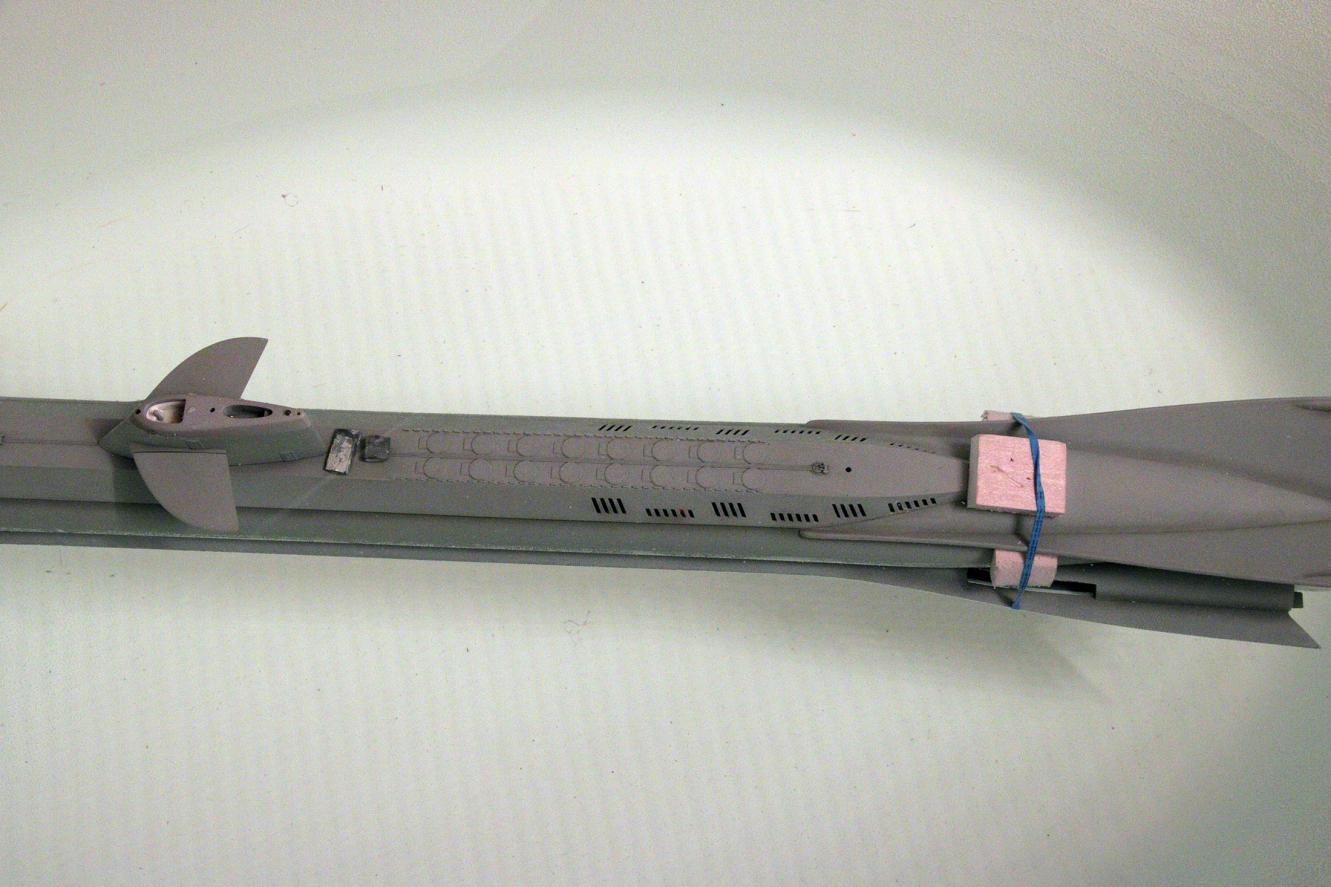

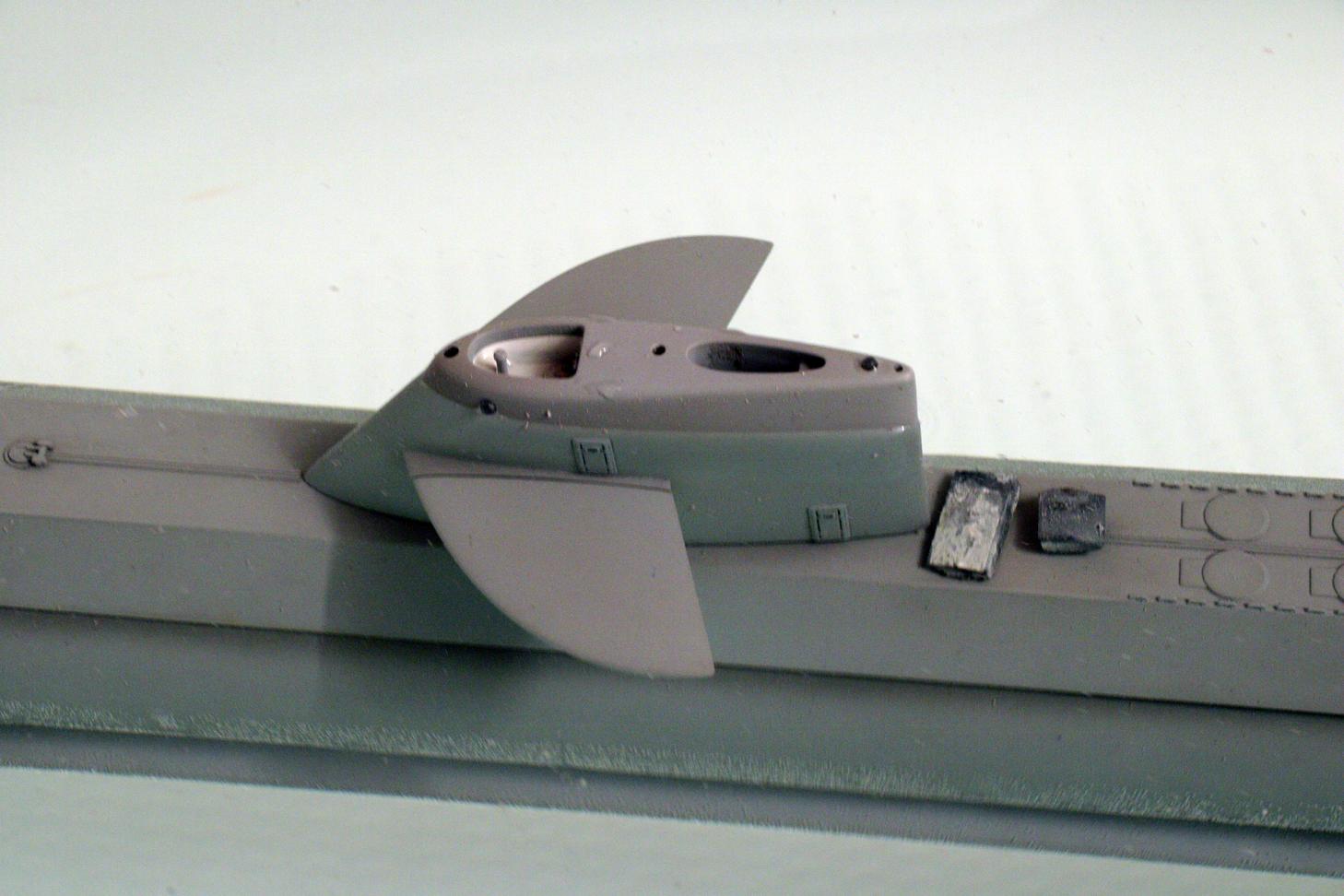

                          Looking at the sail, you can see just how tail heavy it is now.
                          Click image for larger version

Name:	Seaview _098.jpg
Views:	1
Size:	112.8 KB
ID:	133222

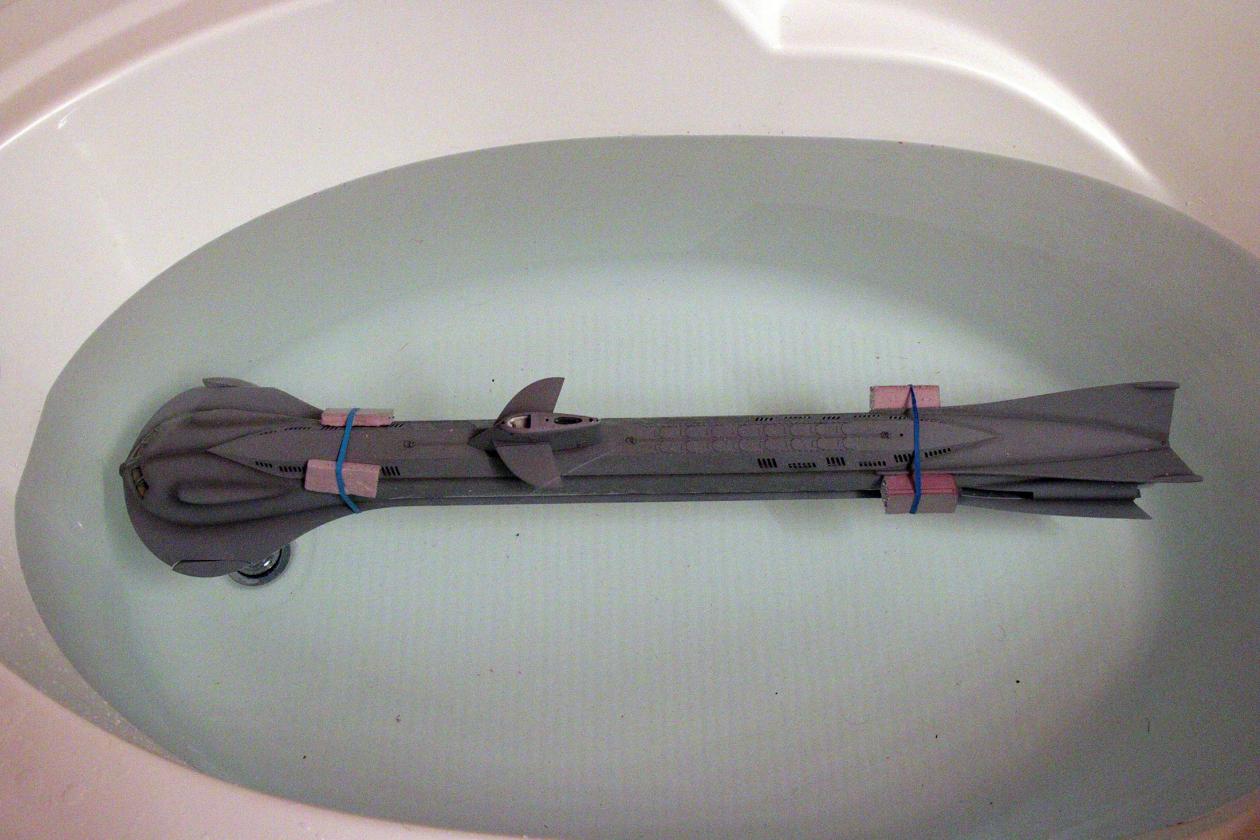

                          Now moving that same weight closer to the sail it changes the trim.
                          Click image for larger version

Name:	Seaview _099.jpg
Views:	1
Size:	115.3 KB
ID:	133223
                          The tale of the sail shows a much closer to level trim.
                          Click image for larger version

Name:	Seaview _100.jpg
Views:	1
Size:	112.8 KB
ID:	133224

                          I know the bow area has plenty of room for the foam so minimal loss of foam to make it fit. The aft area is a bit more challenging and you do your best to arrange it and trim it to fit. Once it was all installed, another day and it is time to see where we are at.

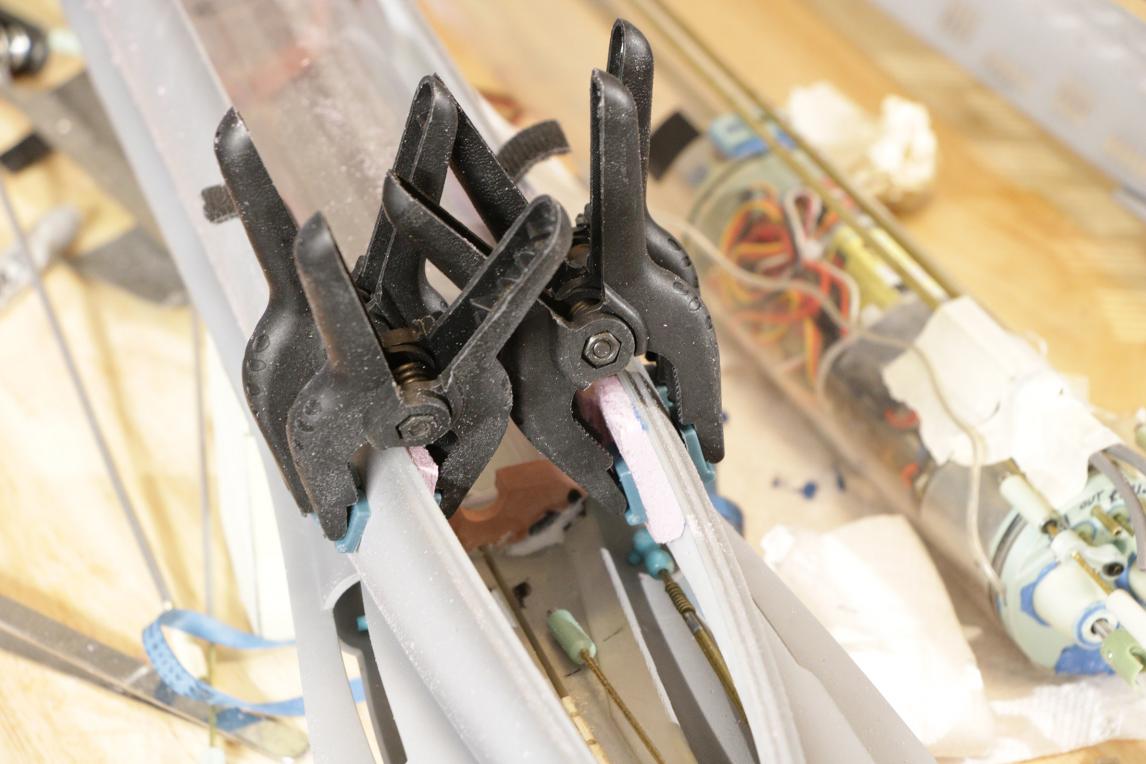

                          Placing the sub in the water the aft was still heavy. Two more blocks are added and attached.
                          Click image for larger version

Name:	Seaview _102.jpg
Views:	1
Size:	91.3 KB
ID:	133225
                          Another day to let the RTV to setup and we will see where we are at.
                          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                          Comment

                          • salmon
                            Treasurer
                            • Jul 2011
                            • 2327

                            #43
                            Back to the tub, the gremlins keep showing up. The entire sub sank. It sits great on the surface. More foam, but more in the center for lift. Maybe a slight bit aft heavy and certainly lower than I wanted.
                            Click image for larger version

Name:	Seaview _103.jpg
Views:	1
Size:	113.6 KB
ID:	133226

                            Added two small blocks to lift it higher in the water and just a bit to lift the rear up.
                            Click image for larger version

Name:	Seaview _104.jpg
Views:	1
Size:	113.2 KB
ID:	133227

                            Click image for larger version

Name:	Seaview _105.jpg
Views:	1
Size:	117.7 KB
ID:	133229

                            That leveled it out and I like the height it sits at.
                            Click image for larger version

Name:	Seaview _106.jpg
Views:	1
Size:	111.2 KB
ID:	133228

                            Since I was affixing the foam under the deck, I wanted to make sure air can travel. I suspect some of the variance I am seeing is air trapped. Filed a channel that should work at directing air.
                            Click image for larger version

Name:	Seaview _107.jpg
Views:	1
Size:	95.4 KB
ID:	133230
                            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                            Comment

                            • salmon
                              Treasurer
                              • Jul 2011
                              • 2327

                              #44
                              Tested and I think we are ready for the pond!
                              Click image for larger version

Name:	Seaview _108.jpg
Views:	1
Size:	119.3 KB
ID:	133233

                              A brief video.
                              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                              Comment

                              • salmon
                                Treasurer
                                • Jul 2011
                                • 2327

                                #45
                                A little work before I take the Seaview to the pond this weekend.
                                I moved one of the straps to the front of the WTC. Originally both were towards the aft and I liked it better being held in place on the extreme ends.
                                Click image for larger version

Name:	Seaview _109.jpg
Views:	1
Size:	101.7 KB
ID:	133249Click image for larger version

Name:	Seaview _110.jpg
Views:	1
Size:	95.1 KB
ID:	133250Click image for larger version

Name:	Seaview _111.jpg
Views:	1
Size:	85.1 KB
ID:	133251

                                I went ahead and made my own radar for the Seaview.
                                Click image for larger version

Name:	Seaview _112.jpg
Views:	1
Size:	108.1 KB
ID:	133252Click image for larger version

Name:	Seaview _113.jpg
Views:	1
Size:	108.0 KB
ID:	133253

                                Now it is fairly delicate (powder type 3D printer) and was post processed with a thin CA glue, but to kick it up a notch, I soaked in Marine grade epoxy.
                                Click image for larger version

Name:	Seaview _114.jpg
Views:	1
Size:	94.4 KB
ID:	133254
                                The extras are for the times I break them (I have a gift of doing that). Maybe I will never need them, but if I do.....
                                Once the epoxy dries, I will lightly sand the surface to smooth out the sandstone type finish and paint on a flat clear coat.
                                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                                Comment

                                Working...
                                X
